Procedure
Step 1 Install the grounding cable towards the side of the front door.
Step 2 Apply the star ring terminal end of the grounding cable to the front door. Tighten the screw to 11.5 to 15 in-lb
(1.3 to 1.7 N-m) of torque to provide proper bonding.

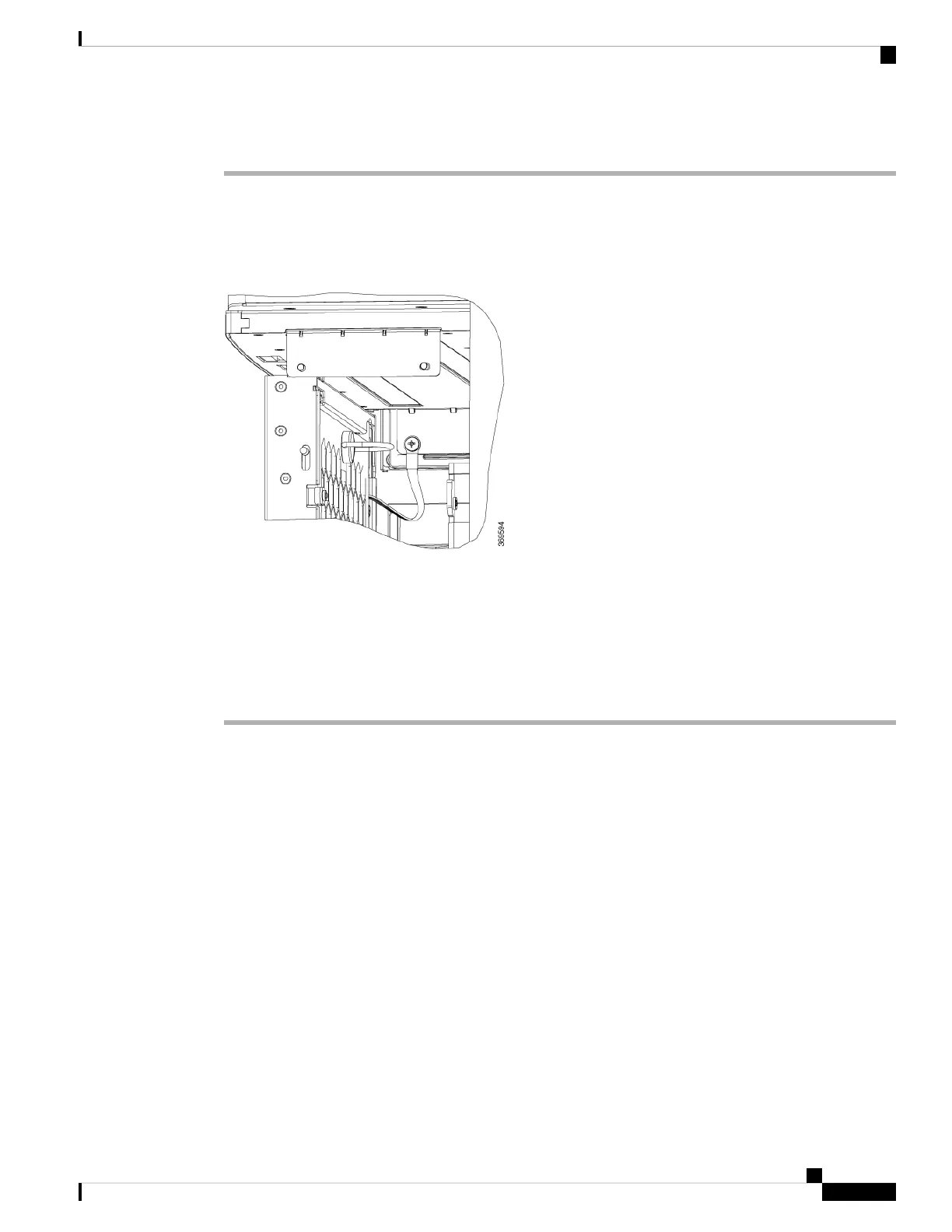

Figure 49: Ground Cable to Chassis
Fasten the ground straps on both the doors to the chassis.
Note
Step 3 Connect the other round terminal of the grounding cable to the ground port on the cable management bracket
on either left or right side of the chassis. Use the front hole of the bracket that connects the top cover to the
cable management bracket. Tighten the M4 screw to 11.5 to 15 in-lb (1.3 to 1.7 N-m) of torque.
Step 4 Repeat Steps 1–3 to install the grounding cable to the other front door.
Step 5 Close and lock the front door.
What to do next
Continue to power on the router.
Hardware Installation Guide for Cisco 8800 Series Routers
61
Unpack and Install the Chassis
Ground the Front Door
