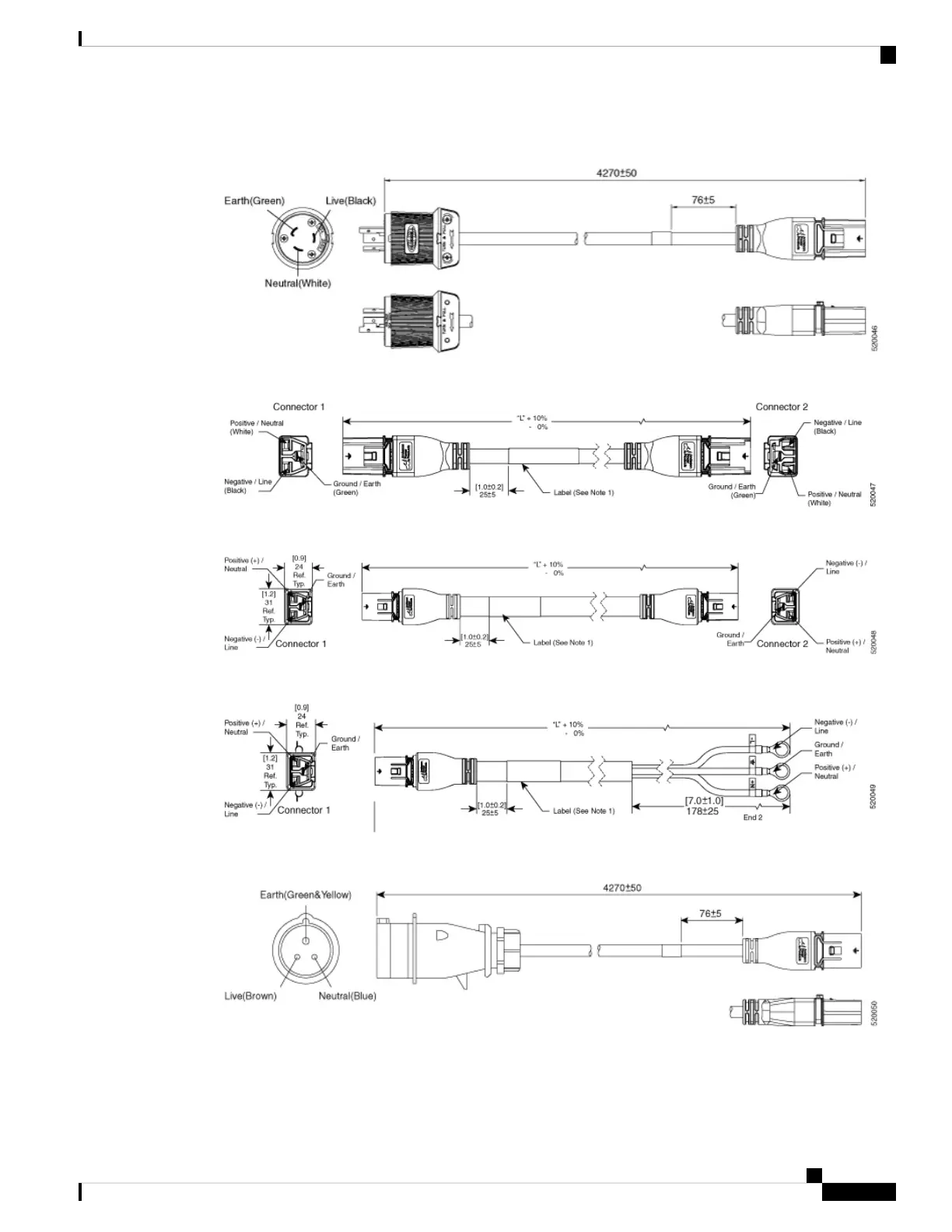

Figure 63: CAB-AC-30A-US3 Power Cord and Plugs for Standard AC Power Supply
Figure 64: CAB-AC-30A-US4 Power Cord and Plugs for Standard AC Power Supply
Figure 65: CAB-AC-32A-EU Power Cord and Plugs for Standard AC Power Supply
Figure 66: CAB-DC-32A-EU1, CAB-DC-32A-EU2 Power Cord and Plugs for HVDC Power Supply
Figure 67: CAB-AC-32A-CHN Power Cord and Plugs for Standard AC Power Supply
Hardware Installation Guide for Cisco 8800 Series Routers
75
Powering on the Router
Power Cord Illustrations
