Cisco ASR 1004 - Four-Post Rack Installation

7-15
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-09
Chapter 7 Cisco ASR 1004 Router Overview and Installation
Installing the Cisco ASR 1004 Router in a Rack
Figure 7-10 shows where to attach the chassis rack-mount brackets to the equipment rack.
Figure 7-10 Attaching the Rear Rack-Mount Brackets to the Cisco ASR 1004 Router
Step 2 Slide the chassis into the rack, pushing it back until the brackets meet the mounting strips or posts on
both sides of the rack.
Step 3 Keeping the brackets flush against the posts or mounting strips, align the holes in the brackets with the
holes on the rack or mounting strip.
Step 4 For each bracket, insert and tighten two screws to the rack on both sides.
This completes the procedure for installing the chassis on a two-post rack. Proceed to the “Attaching a
Chassis Ground Connection” section on page 7-17 to continue the installation.
Four-Post Rack Installation
The Cisco ASR 1004 Router can be flush-mounted in a 19-inch equipment rack using the rack-mounting
kit provided with your system. The Cisco ASR 1004 Router can be mounted into the rack using two
recommended methods:
• Installing the chassis in an existing rack with equipment.
• Installing an empty chassis in a rack with no equipment installed.

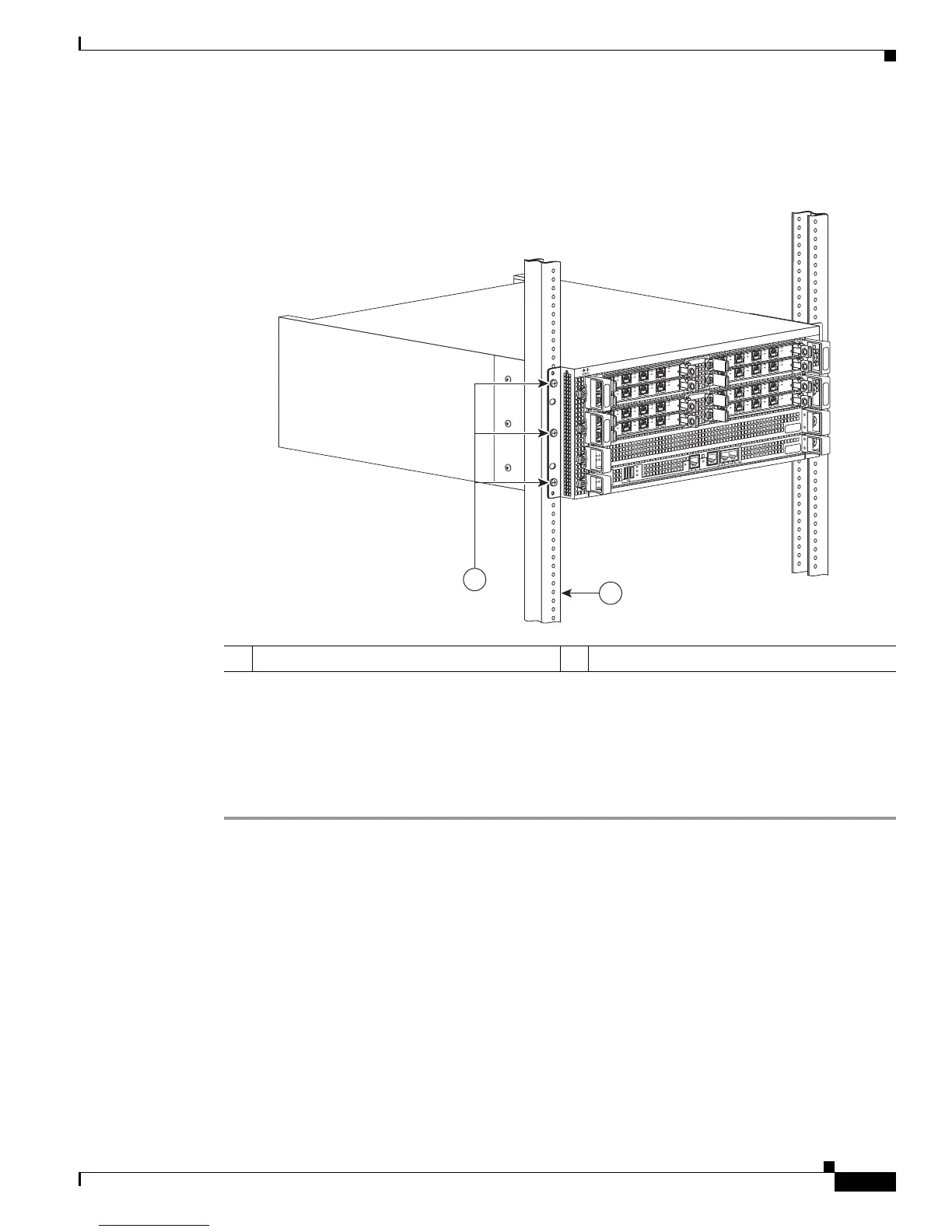

1 Rack-mount bracket ear and holes 2 Rack equipment rail
