Cisco ASR 1004 Install Guide

7-27
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-09
Chapter 7 Cisco ASR 1004 Router Overview and Installation
Connecting Power to Cisco ASR 1004 Router

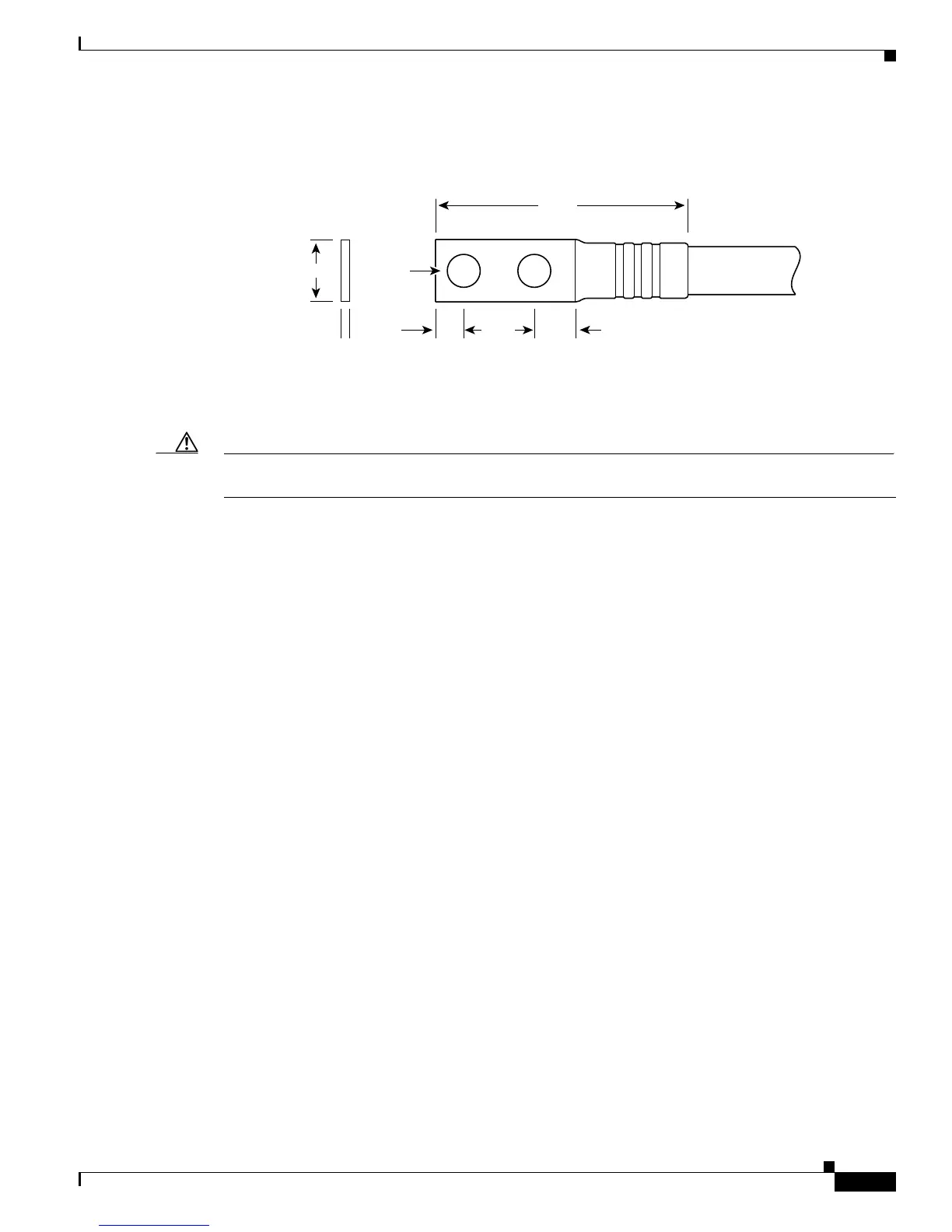

Figure 7-19 Cisco ASR 1004 Router –48 VDC Power Supply Grounding Wire and Stud
Step 4
Attach the other end of the cable to the site ground connection.
Caution Before you continue to install the terminal block wires, stop and perform Step 5. To prevent any contact
with metal lead on the wire and the plastic cover.
Step 5 You must wrap the positive and negative cables with sleeving. Take each wire and cover the area from
the lug to the wire with heavy shrink sleeving.
Crimp area
25527
2.24
0.48
0.08
0.25 0.370.63
End View
Ø 0.267
2 holes
All measurements in inches
