Chapter 7 Cisco ASR 1004 Router Overview and Installation
Cisco ASR 1004 Router Description
Rear View
Figure 7-2 shows the rear of the Cisco ASR 1004 Router with two AC power supplies installed.

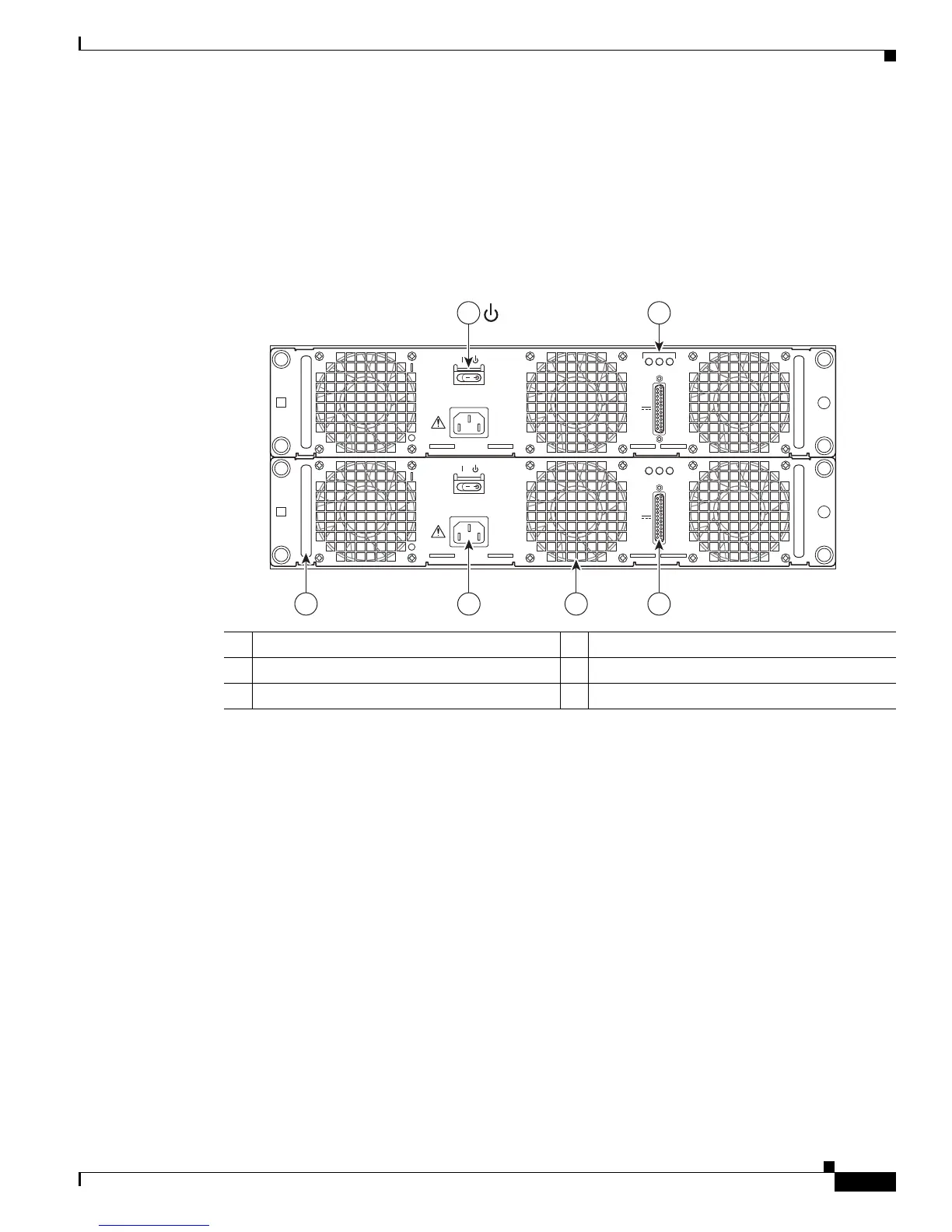

Figure 7-2 Cisco ASR 1004 Router Rear View with AC Power Supplies
1 AC power supply Standby switch 4 AC power supply fan
2 AC power supply LEDs 5 AC power inlet
3 AC power supply DB-25 alarm connector 6 AC power supply handle
280184
OUTPUT INPUT
FAIL
OK OK
FAN
100V-240V~ 12A-5A
50-60Hz
ALARMS
60V
1A MAX
OUTPUT INPUT
FAIL
OK OK
FAN
100V-240V~ 12A-5A
50-60Hz
ALARMS
60V
1A MAX
1 2
34
6
5

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
