Console and Auxiliary Port Cable Connections
This section describes how to attach a cable to the console or auxiliary ports on the Cisco ASR 1013 Router. The Cisco ASR
1013 Router has two RJ-45 ports for terminal connection on each Route Processer installed. A console port, which can be
utilized for terminal connections and an auxiliary port for additional terminal connections as well as diagnostic utilization.
Note Both the console and the auxiliary ports are asynchronous serial ports; any devices connected to these ports must be
capable of asynchronous transmission.
Step 1 Before connecting a terminal to the console port, configure the terminal to match the router console port as follows:
9600 baud, 8 data bits, no parity, 1 stop bits. See Figure 6 for console and auxiliary port connector location.

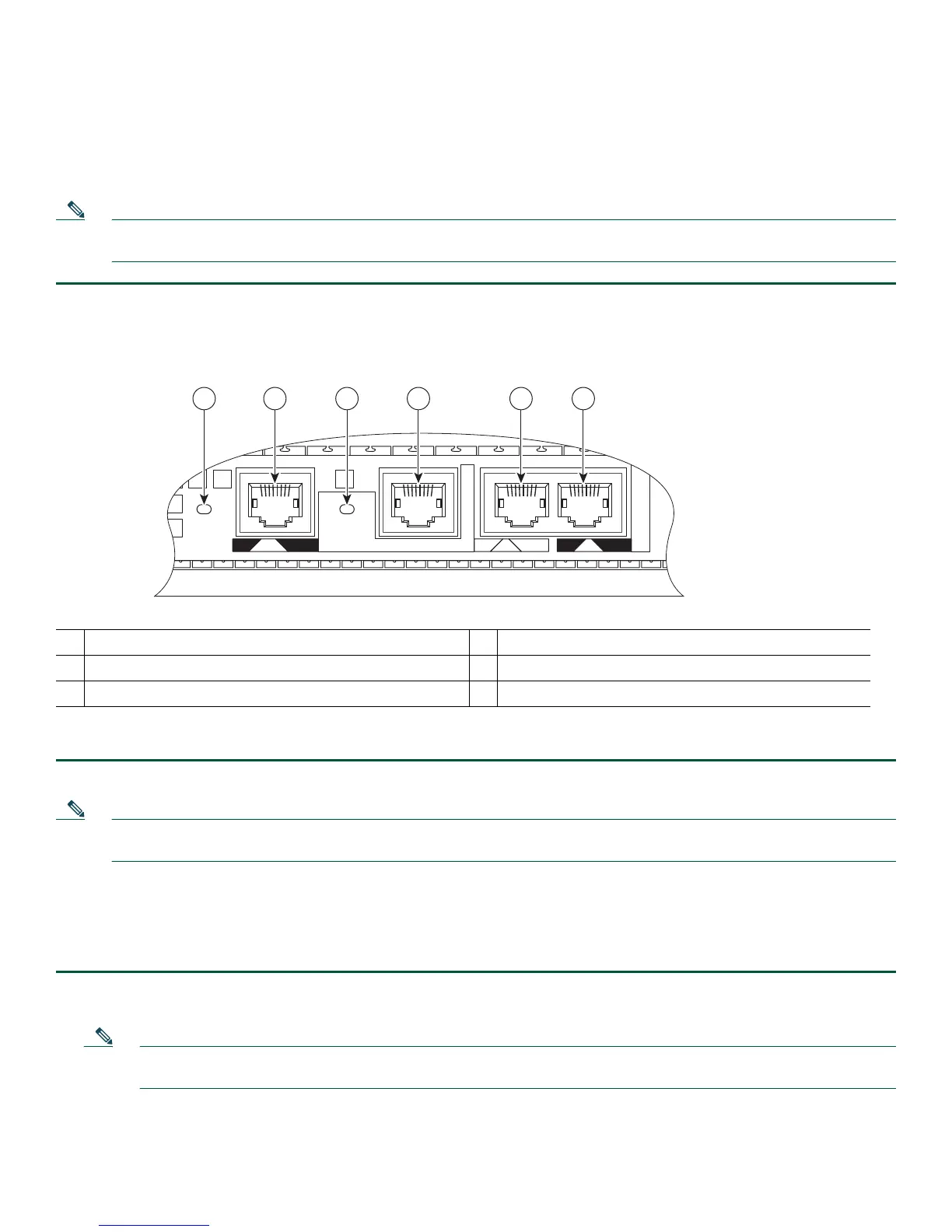

Figure 6 Cisco ASR1000-RP2 Console and Auxiliary Port Location
CARRIER
LINK
MGMT ETHERNET
BITS CON AUX
1
CARRIER LED
4
MGMT Ethernet connector
2
BITS connector
5
CON connector
3
LINK LED
6
AUX connector
Step 2 After you
establish normal router operation, you can disconnect the terminal.
Note For console and auxiliary port pinouts, see Appendix A, Cisco ASR 1000 Series Routers Specifications, in Cisco ASR
1000 Series Aggregation Services Routers Hardware Installation Guide.
Management Ethernet Port Cable Connection
Before you can use the console interface on the router using a terminal or PC, you must perform the following steps:
Step 1 Configure your terminal emulation software with the following settings: 9600 bits per second (bps), 8 data bits, No
parity, one stop bit, No flow control.
Note For information about how to change the default settings to meet the requirements of your terminal or host, refer
to the Cisco IOS Terminal Services Configuration Guide.
Step 2 Conn
ect a terminal or PC to the console port using the cable and adapters provided in the accessory kit that shipped
with your Cisco ASR 1013 Router:
