Cisco ASR 1013 Quick Start Guide

18

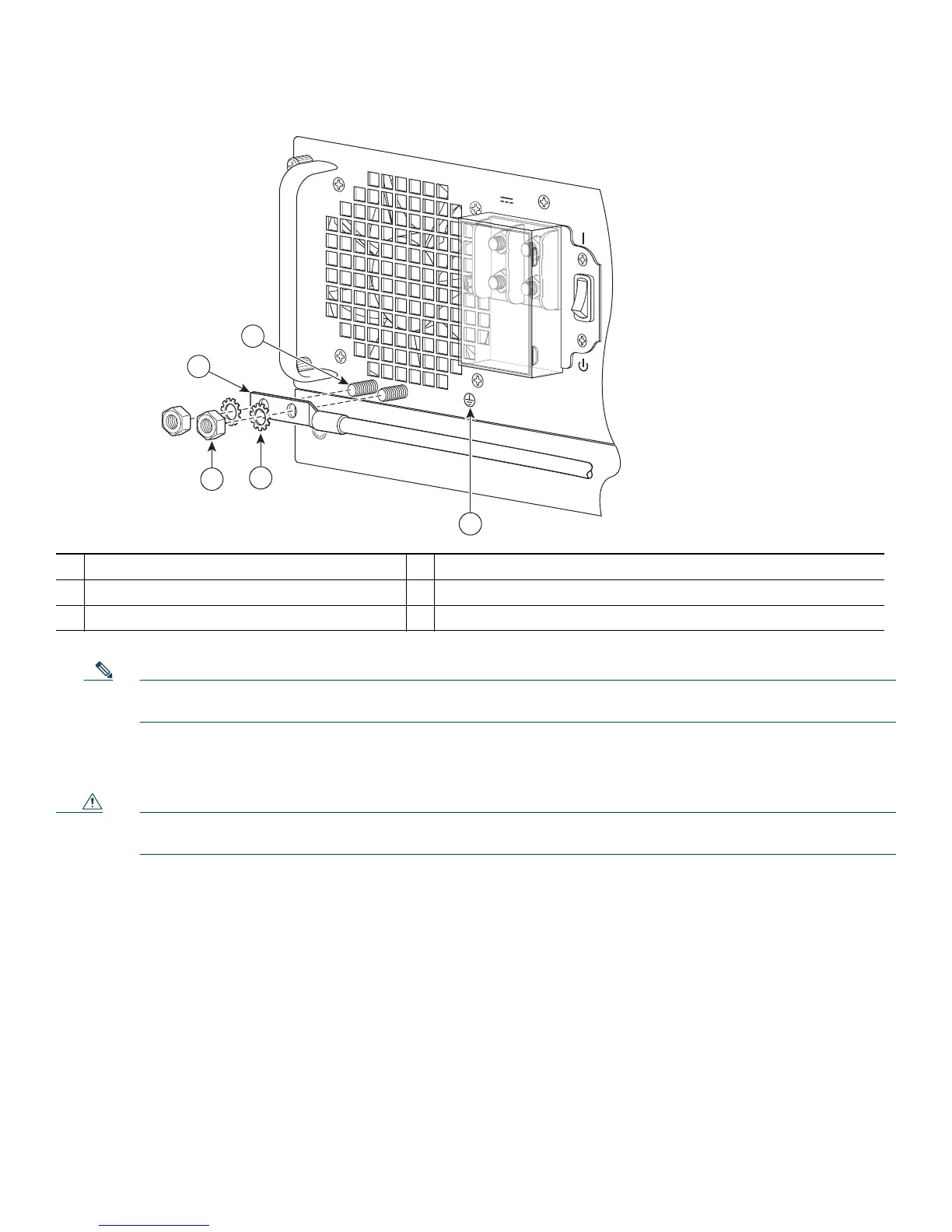

Figure 10 Cisco ASR 1013 Router DC Power Supply Ground Stud and Cable Installation
This unit might have more than one power supply con
-48/-60V 40A
3
1
253990
5
4
2
1
DC power supply grounding stud with wire
4
Flat washer
2
Grounding screws
5
Kepnut screw
3
DC Power supply earth ground symbol
Note Shielded cables must be used to connect to the DB-25 alarm connector on both the AC and DC power supplies in
order to comply with FCC/EN55022/CISPR22 Class A emissions requirements.
Step 4 Attach the other end of the cable to the site’s ground connection.
Step 5 Rem
ove the plastic cover from the terminal block.
Caution Before you continue to install the terminal block ground wires, stop and perform Step 6. To prevent any contact
with metal lead on the ground wire and the plastic cover.
Step 6 You must wrap the positive and negative lead cables with sleeving. Take each lead wire and cover the area from the lug
to the wire with heavy shrink sleeving (see Figure 11
, callout #3). Ground the other end of the grounding wires to an
appropriate grounding point at your site.
