Cisco ASR 9001 Hardware Installation Guide

Procedure
Step 1
Loosen the two captive screws on the air filter cover and remove it from the chassis.
Step 2
Grasp the pull tab in the center of the air filter, and slide it out from the slot.

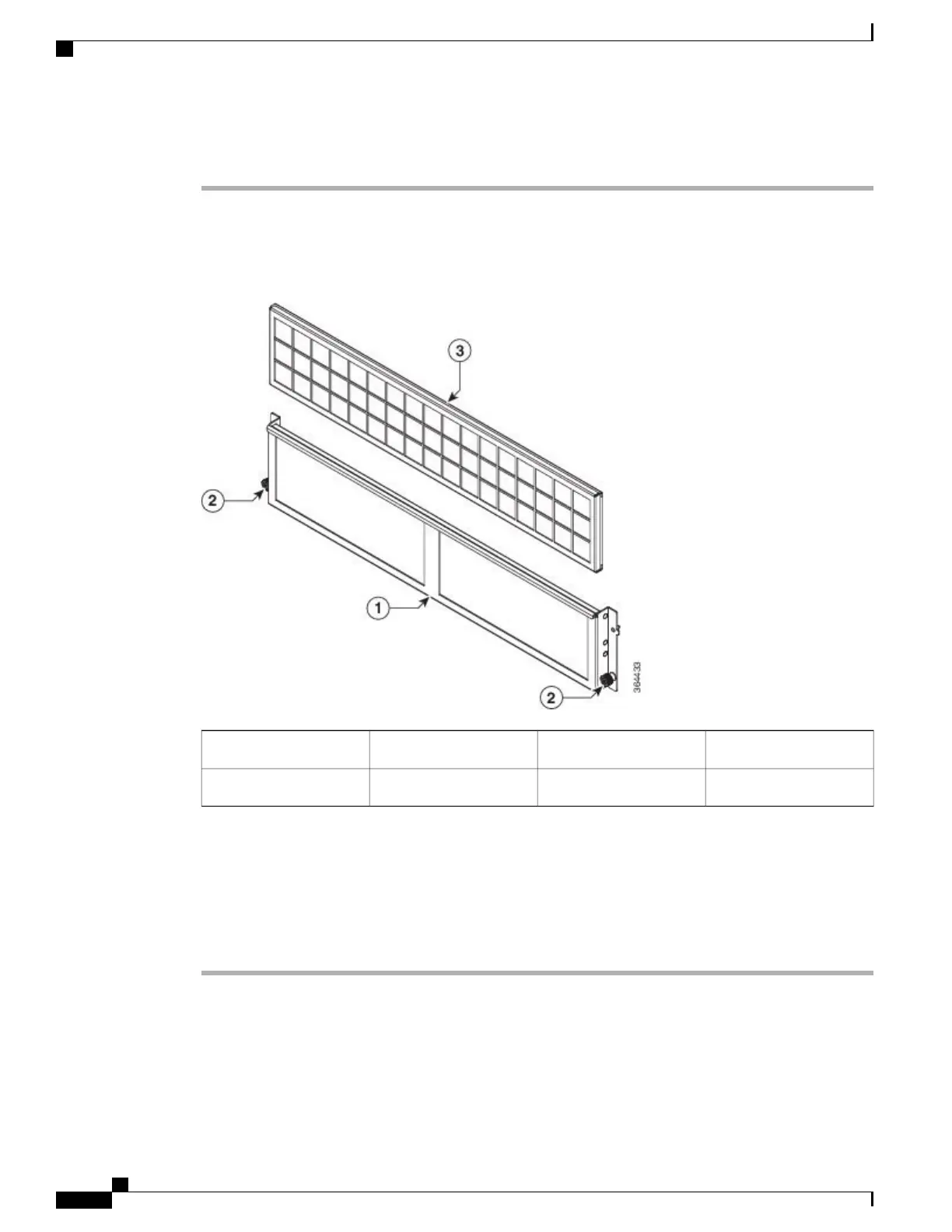

Figure 61: Replacing the Air Filter
Two captive screws2Air filter cover1
Air filter3
Step 3
Install the replacement air filter.
Verify the air flow direction when installing the new air filter. An air flow direction arrow is stamped
on the air filter frame and should be pointing towards the chassis and be visible when installed in the
air filter cover.
Note
a) Slide the new air filter into the slot.
b) Tighten the two captive screws on the front of the air filter cover.
Cisco ASR 9001 and Cisco ASR 9001-S Routers Hardware Installation Guide
114
Replacing Cisco ASR 9001 Router Components
Removing and Replacing the Air Filter

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
