Cisco ASR 9001 Hardware Installation Guide

BI_DB+Receive+3
BI_DC+
—
4
BI_DC–—
5
BI_DB–Receive–
6
BI_DD+
—
7
BI_DD–—
8
Management LAN Port LED Indicators
The Management LAN connectors have integral LED indicators (see the following figure). When lit, these
LEDs indicate:
• Green (LINK)—Connection is alive.
• Amber (ACT)—Connection is active.

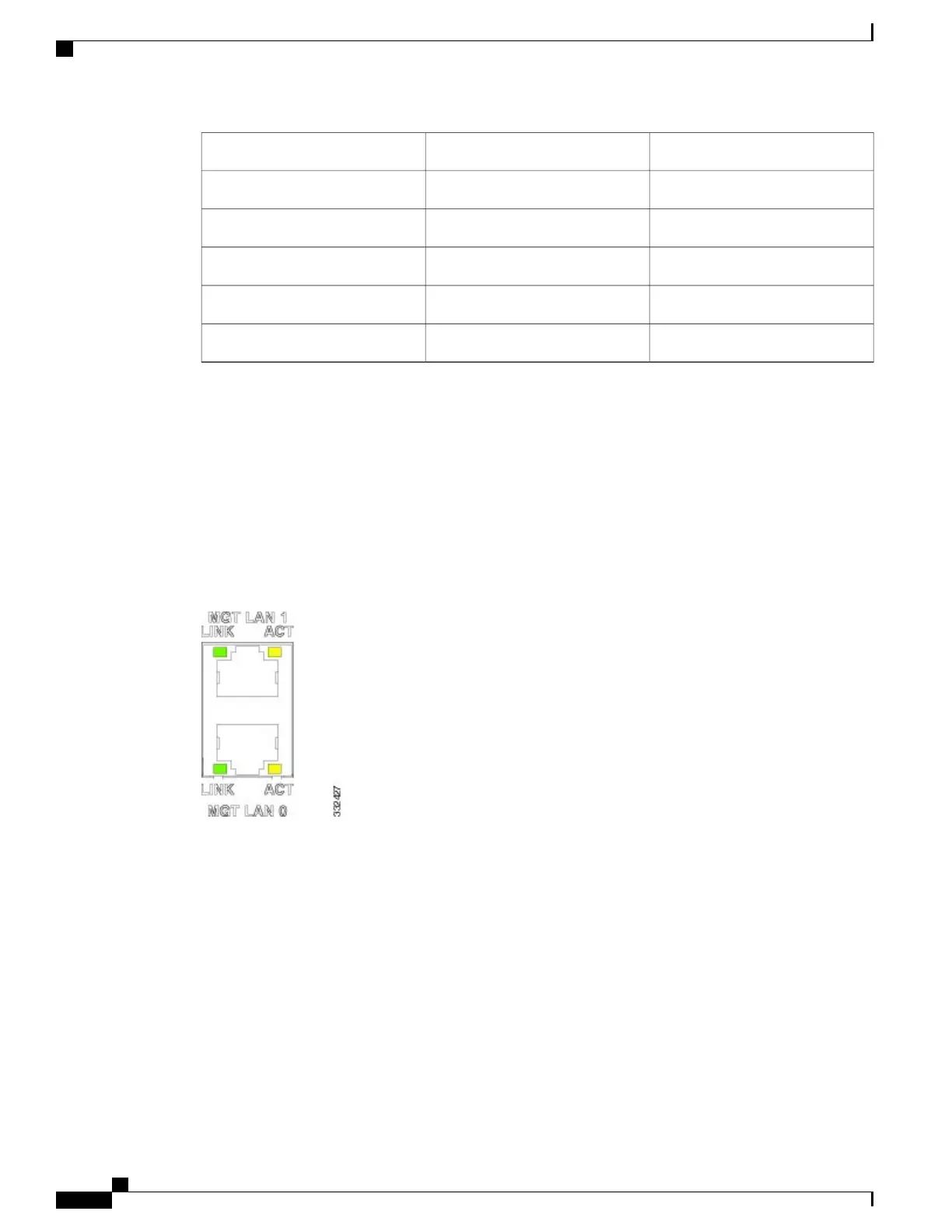

Figure 24: RP Management LAN Port LED Indicators
Management LAN RJ-45 Cabling
When connecting the RJ-45 port to a hub, repeater, or switch, use the straight-through cable pinout shown in
the following figure.
Cisco ASR 9001 and Cisco ASR 9001-S Routers Hardware Installation Guide
28
Preparing for Installation
Management LAN Ports Connection Guidelines

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
