Cisco ASR 9001 Hardware Installation Guide

MeaningStateColorLED Label
Modular port adapter
power is off.
OffOffSTATUS
Modular port adapter is
ready and operational.
OnGreen
Modular port adapter
power is on and good, and
modular port adapter is
being configured.
OnAmber
4-Port 10 Gigabit Ethernet Modular Port Adapter
The 4-Port 10 Gigabit Ethernet modular port adapter provides four cages for XFP Ethernet optical interface
modules that operate at a rate of 10 Gbps. The four XFP modules can be 10-Gigabit Ethernet multimode or
single mode connections.
Each XFP cage on the 4-Port 10 Gigabit Ethernet modular port adapter has an adjacent Link LED visible on
the front panel. The Link LED indicates the status of the associated XFP port, as described in Status LEDs,
on page 99 section.
The following figure shows an example of the 4-Port 10 Gigabit Ethernet modular port adapter.

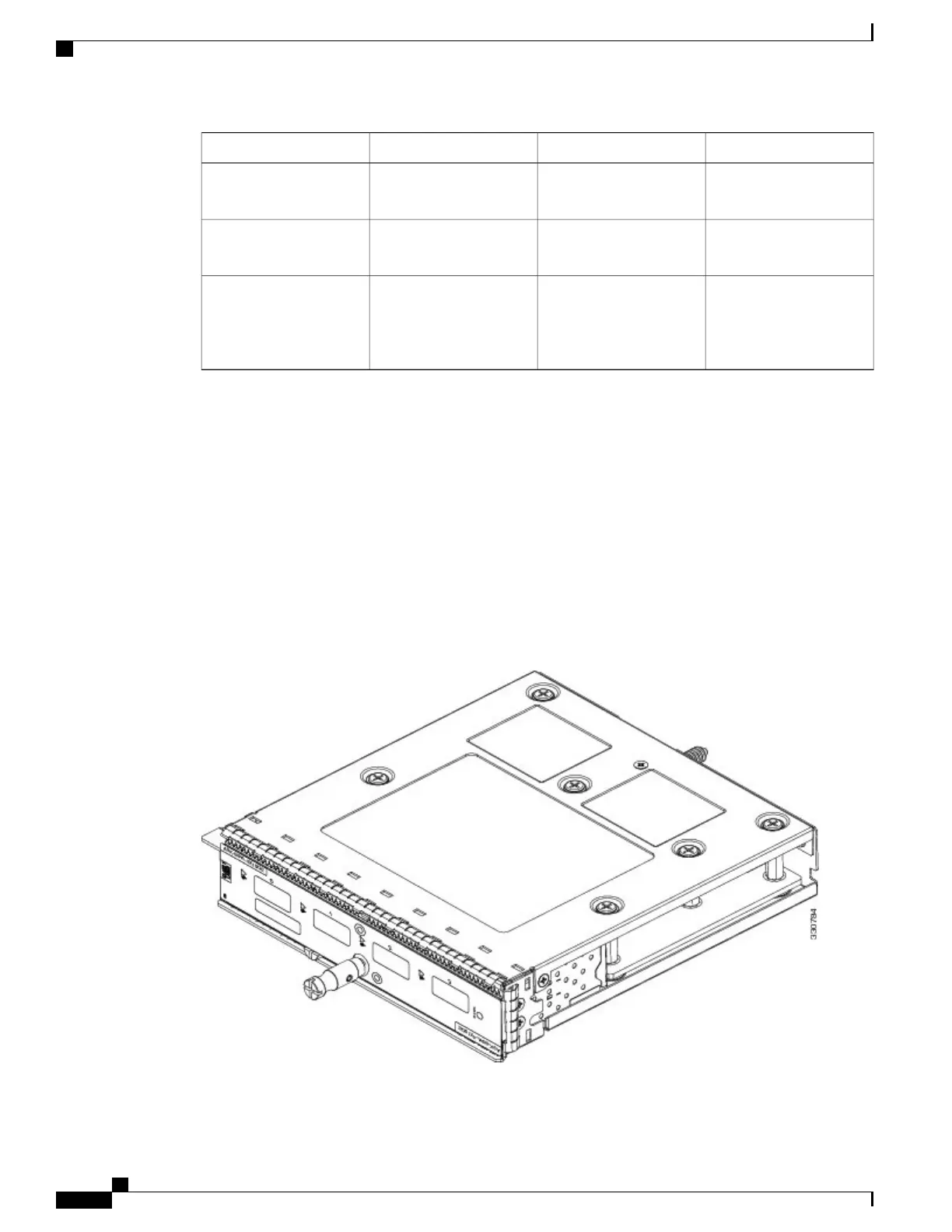

Figure 45: 4-Port 10 Gigabit Ethernet Modular Port Adapter
Cisco ASR 9001 and Cisco ASR 9001-S Routers Hardware Installation Guide
60
Installing Modules and Cables in the Chassis
4-Port 10 Gigabit Ethernet Modular Port Adapter

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
