Installing a Cable Management Bracket
To install a cable-management bracket, follow these steps:
Procedure
Step 1
Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2
Position the cable-management bracket over the front of the chassis front panel.

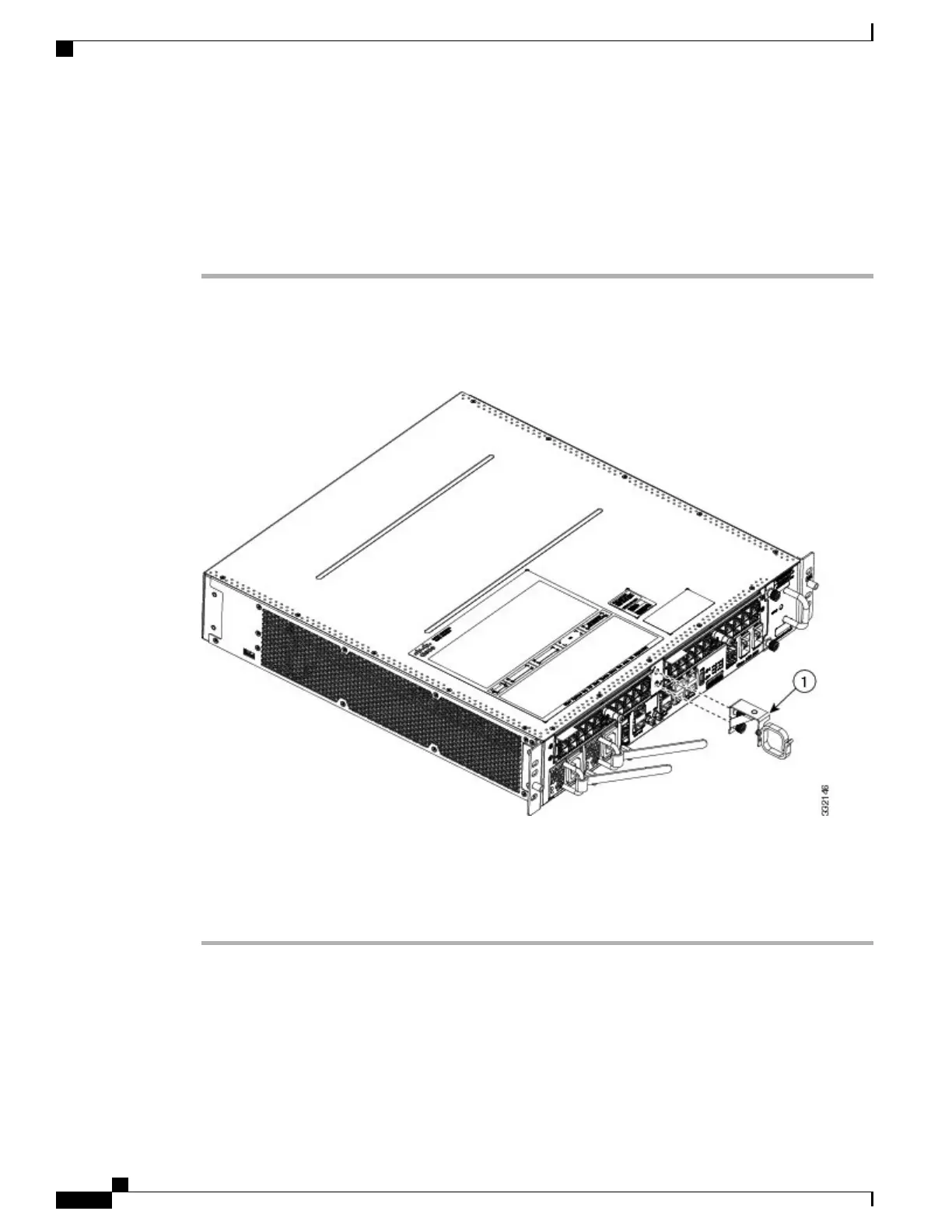

Figure 53: Cable-Management Bracket Installation and Removal
1
Cable-Management Bracket
Step 3
Insert and tighten the captive screw(s) to secure the bracket.
Step 4
Connect all the cables to the intended ports and pass them through the cable management bracket in an
organized manner.
Removing a Cable-Management Bracket
To remove a cable-management bracket, follow these steps:
