Installing a Cable Management Tray
To install a cable-management tray, follow these steps:
Procedure
Step 1
Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2
Position the cable-management tray at the bottom of the chassis front panel.

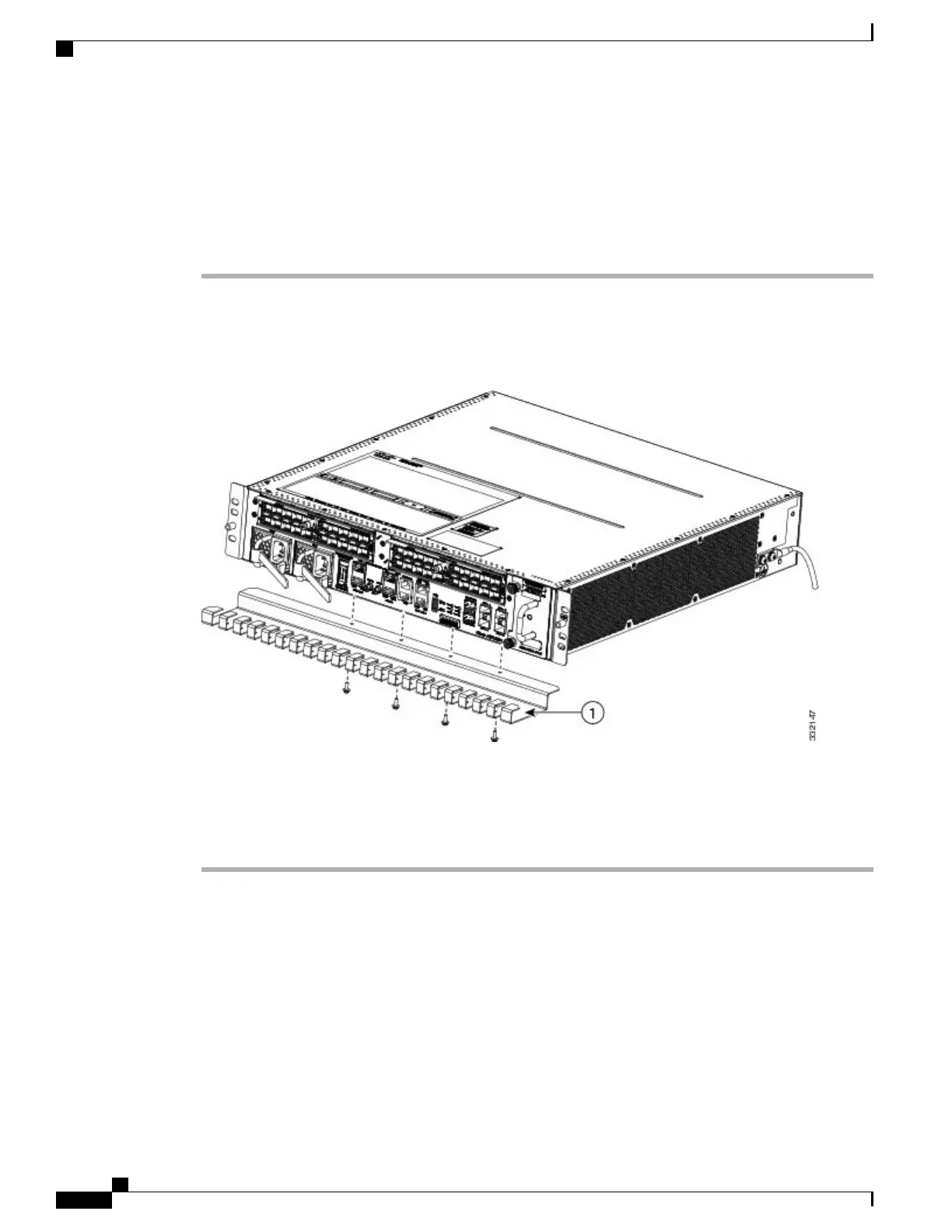

Figure 51: Cable-Management Tray Installation and Removal
1
Cable-Management Tray
Step 3
Insert and tighten the captive screw(s) to secure the tray.
Step 4
Connect all the cables to the intended ports and pass them through the cable management tray in an organized
manner.
Removing a Cable-Management Tray
To remove a cable-management tray, follow these steps:
Cisco ASR 9001 and Cisco ASR 9001-S Routers Hardware Installation Guide
74
Installing Modules and Cables in the Chassis
Installing a Cable Management Tray
