The figure below shows the type of terminal block required for DC-input cable connections.

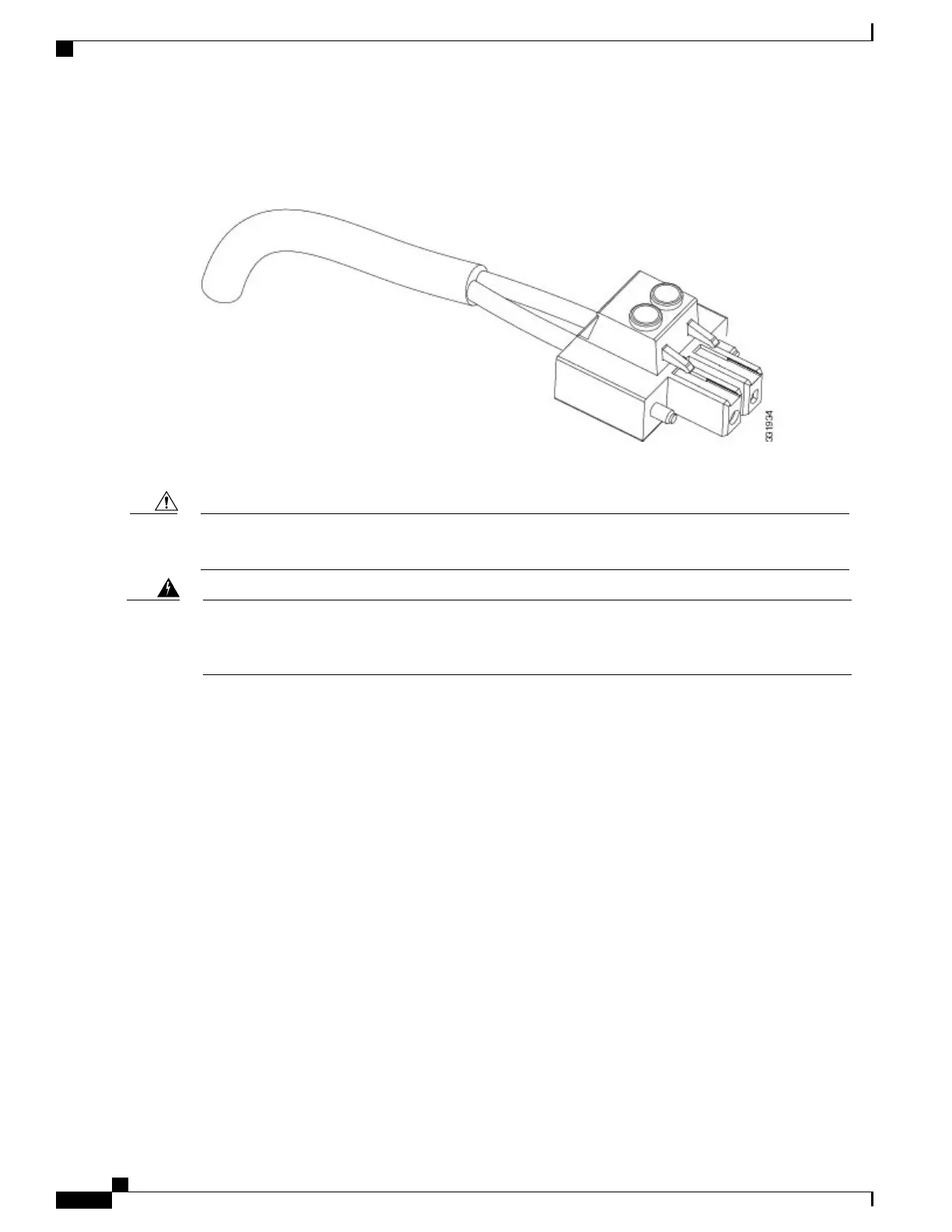

Figure 20: DC Power Cable Terminal Block
The figure below shows DC power source cable connections for single DC power module.
To avoid shock hazard, be sure to apply shrink wrap tubing around the wire entry area of the terminal
block.
Caution
Hazardous voltage or energy may be present on power terminals. Always replace cover when terminals
are not in service. Be sure uninsulated conductors are not accessible when cover is in place. Statement
1086
Warning
Cisco ASR 9001 and Cisco ASR 9001-S Routers Hardware Installation Guide
20
Preparing for Installation
Power Connection Guidelines

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
