If the front to rear spacing for the cabinet is 18.4 inches, attach the rear adapter plates for additional
support (see Step 7).
Note

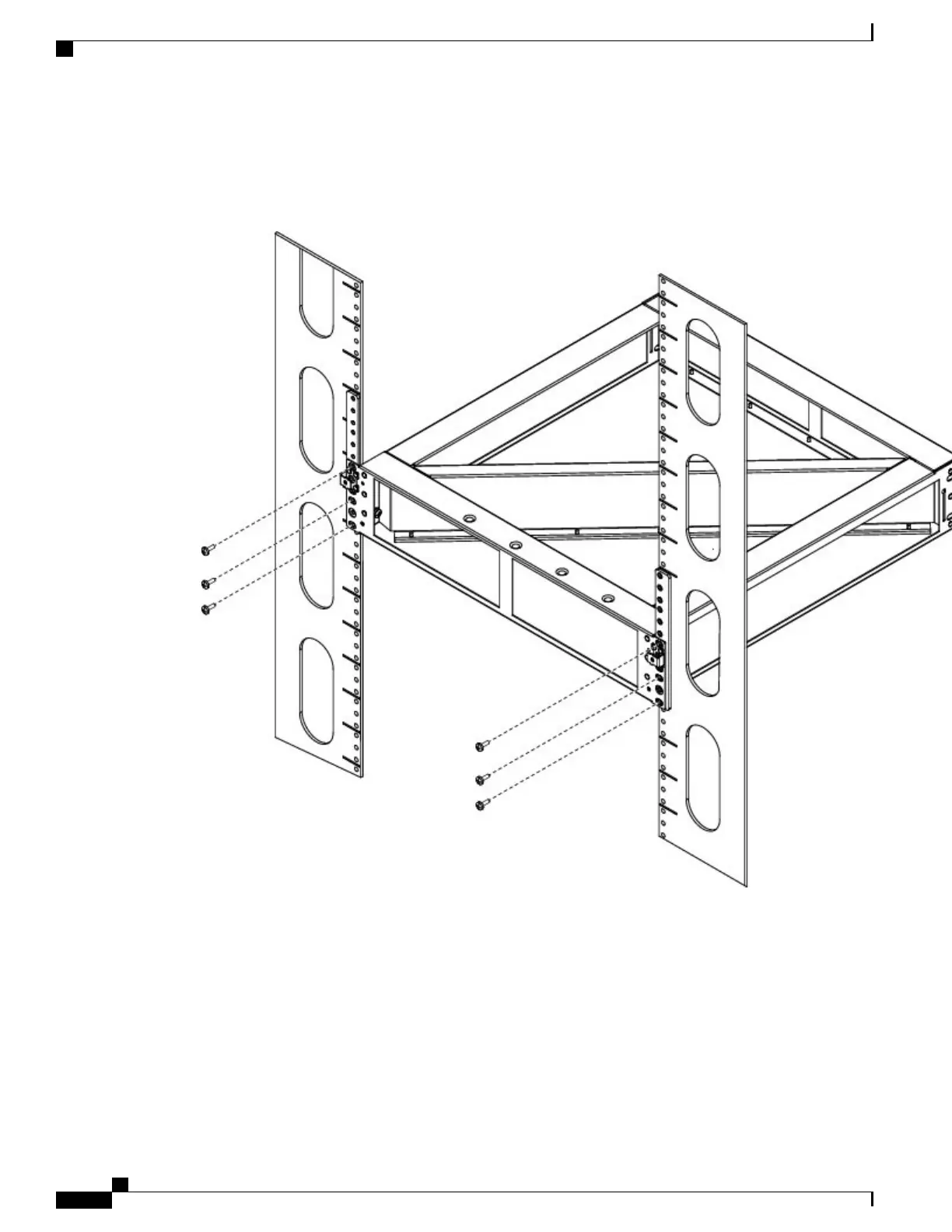

Figure 34: Installing the Plenum Base in a 19-inch Rack
Cisco ASR 9001 and Cisco ASR 9001-S Routers Hardware Installation Guide
46
Unpacking and Installing the Chassis
Installing the Air Plenum Kit
