Cisco ASR 9001 Hardware Installation Guide

Step 9
Install the Cisco ASR 9001 Router in the plenum assembly in the rack (see Installing the Chassis in a Two-Post
Rack, on page 37 or Installing the Chassis in a Four-Post Rack, on page 39).
Step 10

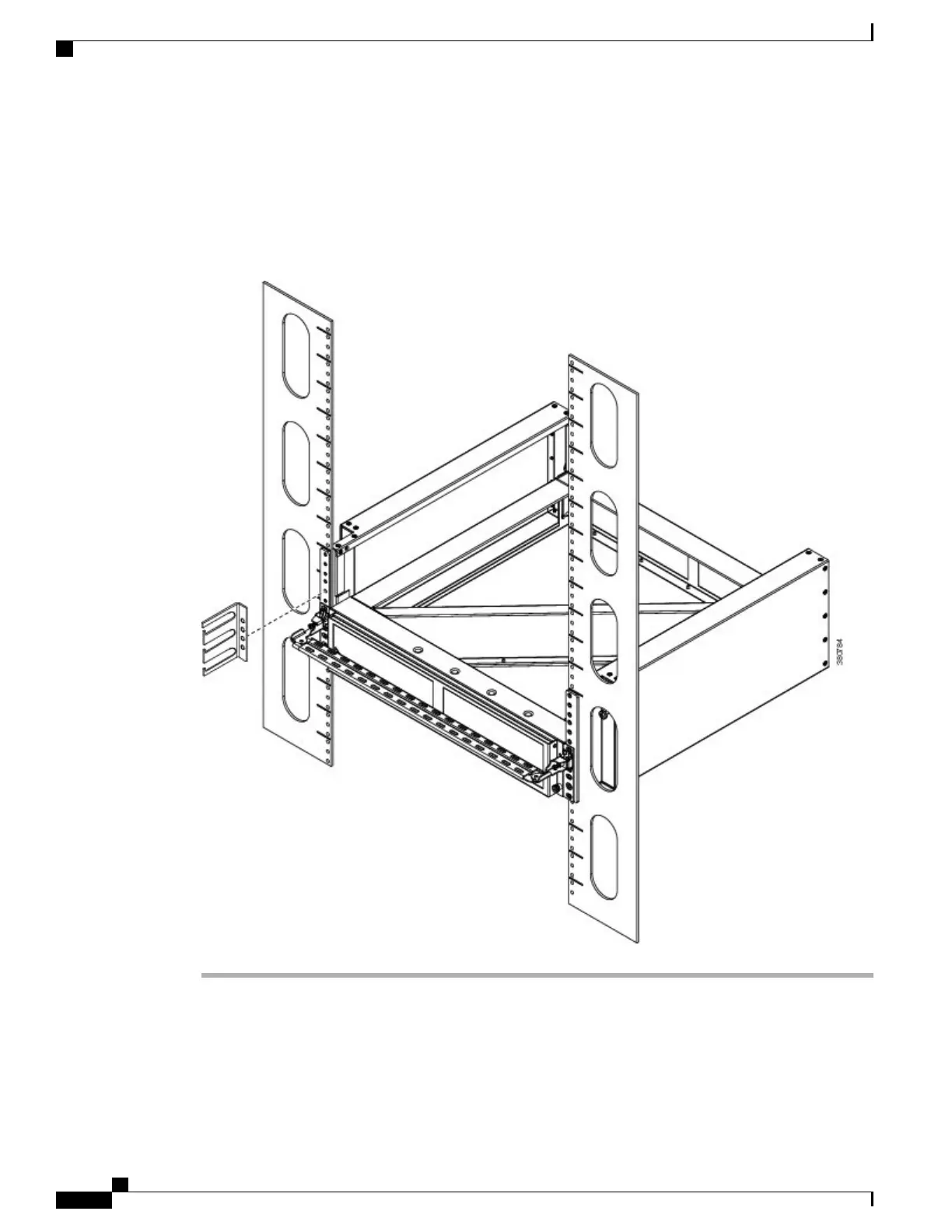

After the chassis is installed, attach the cable guide to the front left side post of the rack. Fasten the cable
guide with one customer-supplied rack-mounting screw (see the figure below).
Figure 37: Attaching the Cable Guide
Cisco ASR 9001 and Cisco ASR 9001-S Routers Hardware Installation Guide
50
Unpacking and Installing the Chassis
Installing the Air Plenum Kit

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
