The following figure shows an example of the 2-Port 10 Gigabit Ethernet modular port adapter.

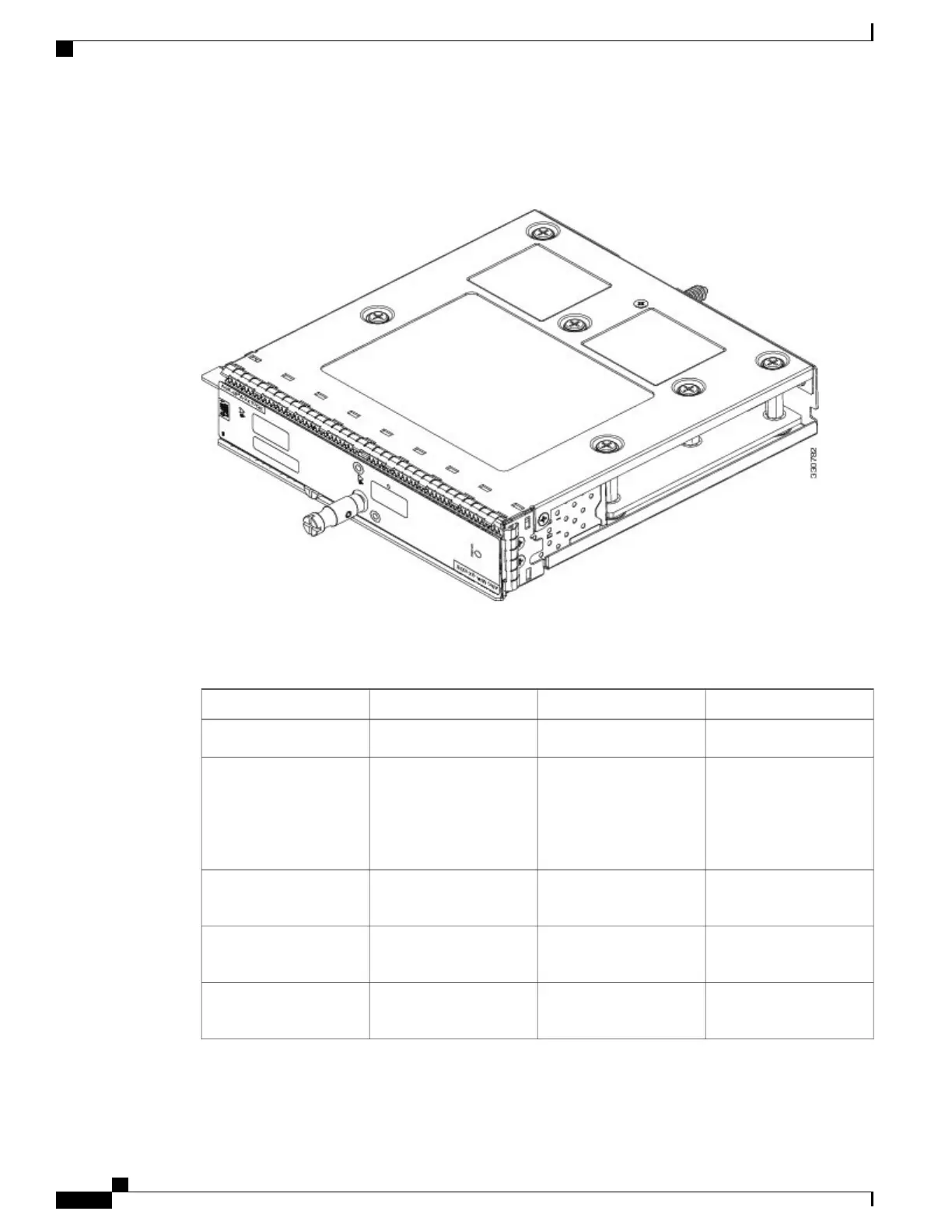

Figure 46: 2-Port 10 Gigabit Ethernet Modular Port Adapter
The following table describes the 2-Port 10 Gigabit Ethernet modular port adapter LEDs.
Table 11: 2-Port 10 Gigabit Ethernet Modular Port Adapter LEDs
MeaningStateColorLED Label
Port is not enabled.OffOffA/L
Port is enabled and the
link is up. The MPA A/L
LED will blink green
when there is traffic
activity.
OnGreen
Port is enabled and the
link is down.
OnAmber
Modular port adapter
power is off.
OffOffSTATUS
Modular port adapter is
ready and operational.
OnGreen
Cisco ASR 9001 and Cisco ASR 9001-S Routers Hardware Installation Guide
62
Installing Modules and Cables in the Chassis
2-Port 10 Gigabit Ethernet Modular Port Adapter

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
