Cisco ASR 903 Installation Instructions

SUMMARY STEPS
1.
Choose a slot for the module. Make sure that there is enough clearance to accommodate any equipment
that will be connected to the ports on the module. If a blank module filler plate is installed in the slot in
which you plan to install the module, remove the plate by removing its two Phillips pan-head screws.
2.
Fully open both the ejector levers on the new module, as shown in this figure.
3.
Position the module in the slot. Make sure that you align the sides of the module with the guides on each
side of the slot, as shown in this figure.
4.
Carefully slide the module into the slot until the EMI gasket on the module makes contact with the module
in the adjacent slot and both the ejector levers have closed to approximately 45 degrees with respect to
the module faceplate.
5.
While pressing down, simultaneously close both the ejector levers to fully seat the module in the backplane
connector. The ejector levers are fully closed when they are flush with the module faceplate.
6.
Tighten the two captive installation screws on the module. The recommended maximum torque is 5.5
lbf/sq in.
7.
Verify that the captive installation screws are tightened on all of the modules installed in the chassis. This
step ensures that the EMI gaskets on all the modules are fully compressed in order to maximize the opening
space for the new or replacement module.
DETAILED STEPS
Step 1
Choose a slot for the module. Make sure that there is enough clearance to accommodate any equipment that will be
connected to the ports on the module. If a blank module filler plate is installed in the slot in which you plan to install the
module, remove the plate by removing its two Phillips pan-head screws.
Step 2
Fully open both the ejector levers on the new module, as shown in this figure.
To prevent ESD damage, handle modules by carrier edges only.Caution
Step 3
Position the module in the slot. Make sure that you align the sides of the module with the guides on each side of the slot,
as shown in this figure.

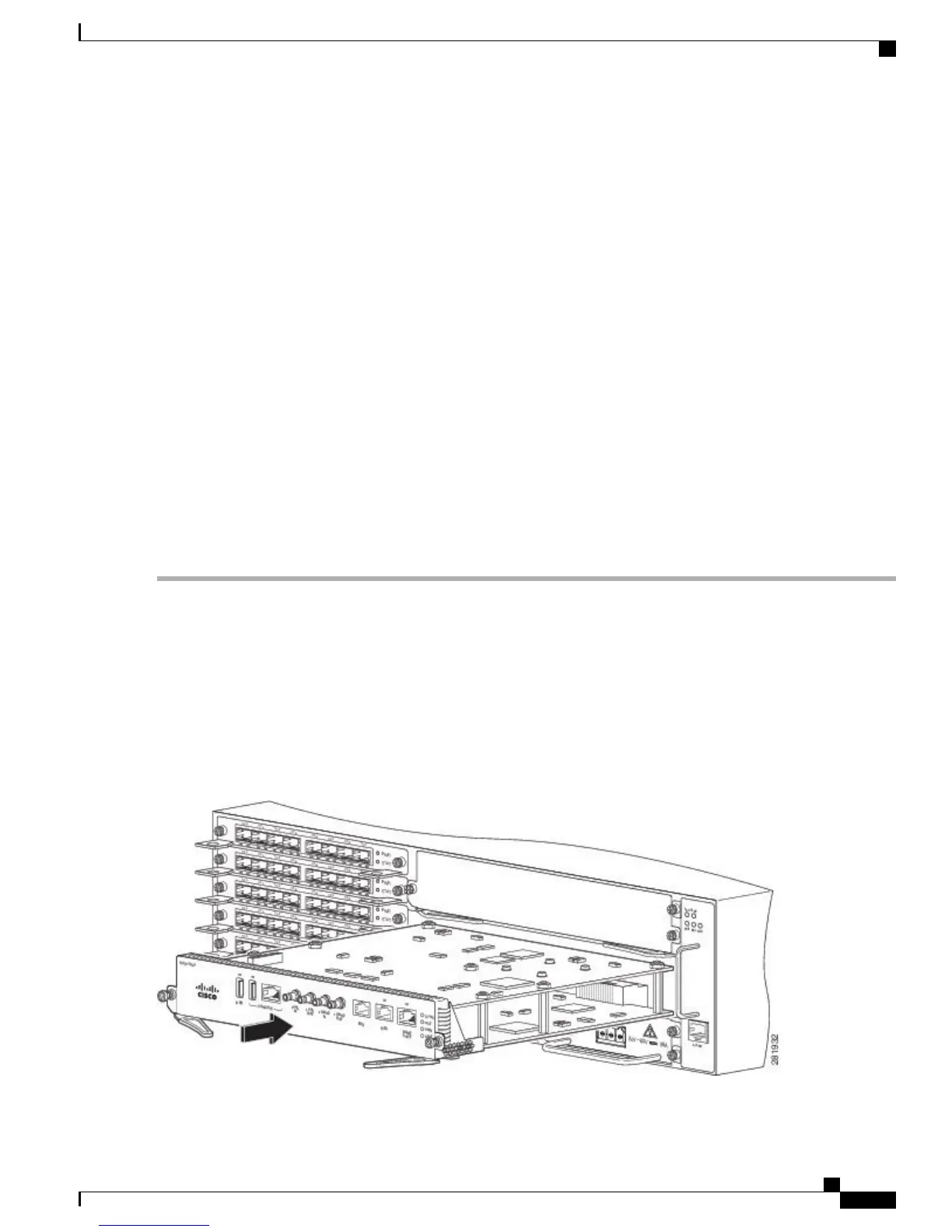

Figure 16: Cisco ASR 903 RSP Installation
Cisco ASR 9000 Series Aggregation Services Router Satellite Systems Installation Guide
35
Installing the Cisco ASR 903 Router as a Satellite Shelf
Installing an RSP Module

Cisco ASR 903 Specifications

General

Form Factor	Modular
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% non-condensing
Redundancy	Yes, redundant power supplies and route processors
Operating System	Cisco IOS XE
Power Supply	AC or DC
Switching Capacity	240 Gbps
Operating Temperature	-40°C to 65°C (-40°F to 149°F)
MTBF	200, 000 hours
Supported Protocols	IPv4, IPv6, MPLS, L2VPN, L3VPN
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, T1/E1
