Cisco Catalyst 2900 Series XL Hardware Installation Guide

2-19
Catalyst 2900 Series XL Hardware Installation Guide
78-6461-03
Chapter 2 Installation
Installing the Switch in a Rack

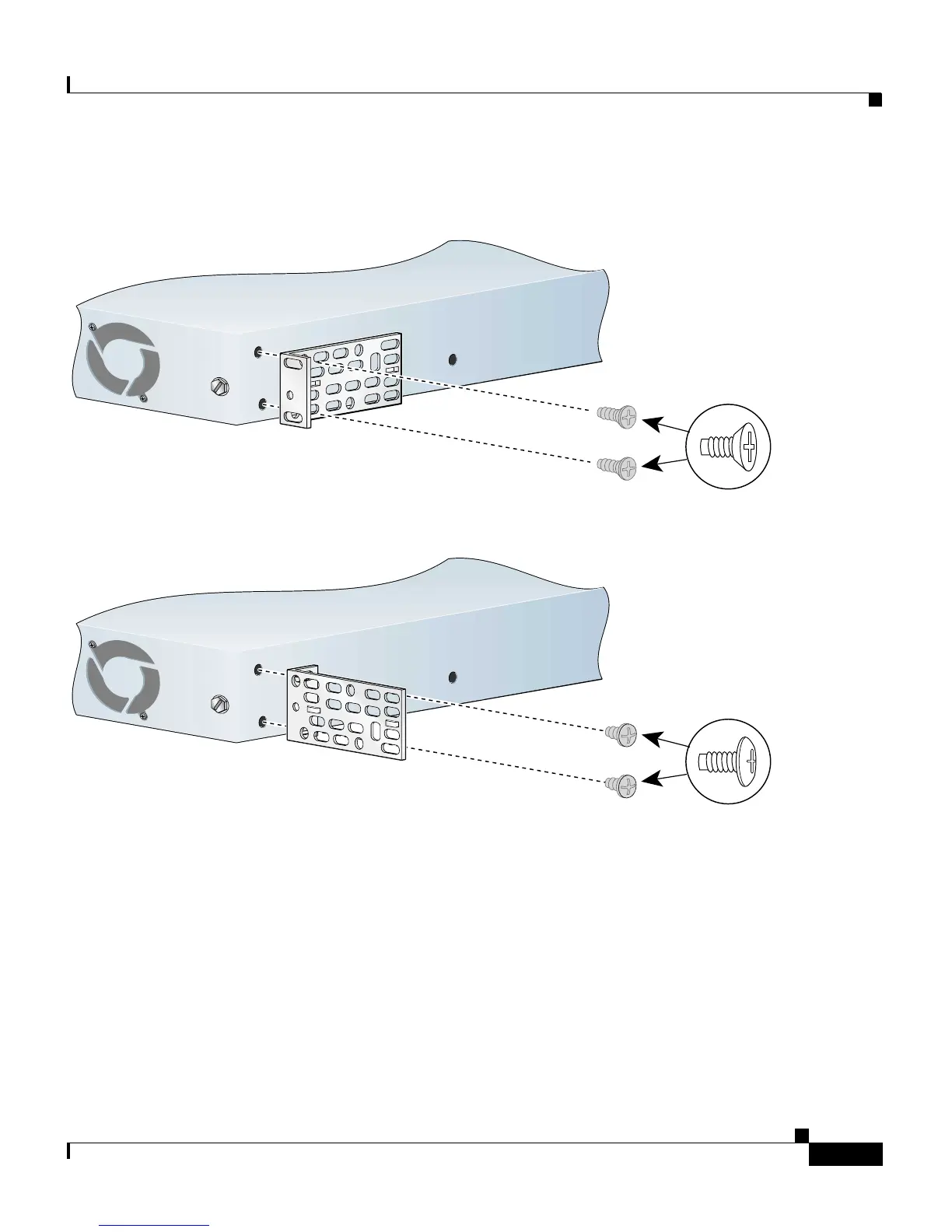

Figure 2-10 Attaching Brackets on Catalyst 2912 LRE XL and 2924 LRE XL Switches (Rear-Panel
Forward
Mounting the Switch in a Rack
After the brackets are attached to the switch, use the four supplied number-12
Phillips machine screws to securely attach the brackets to the rack, as shown in
Figure 2-11.
54824
19" configuration
23" and 24" configuration
Phillips
flat-head
screws
Phillips
truss-head
screws
