Step 3
Peel the adhesive strip off the bottom of the screw template, and attach it to the top of the desk or shelf.
Step 4
Use a 0.144-inch (3.7 mm) or a #27 drill bit to drill a 1/2-inch (12.7 mm) hole in the two screw template slots.
Step 5
Insert two screws in the slots on the screw template, and tighten them until they touch the top of the screw template.

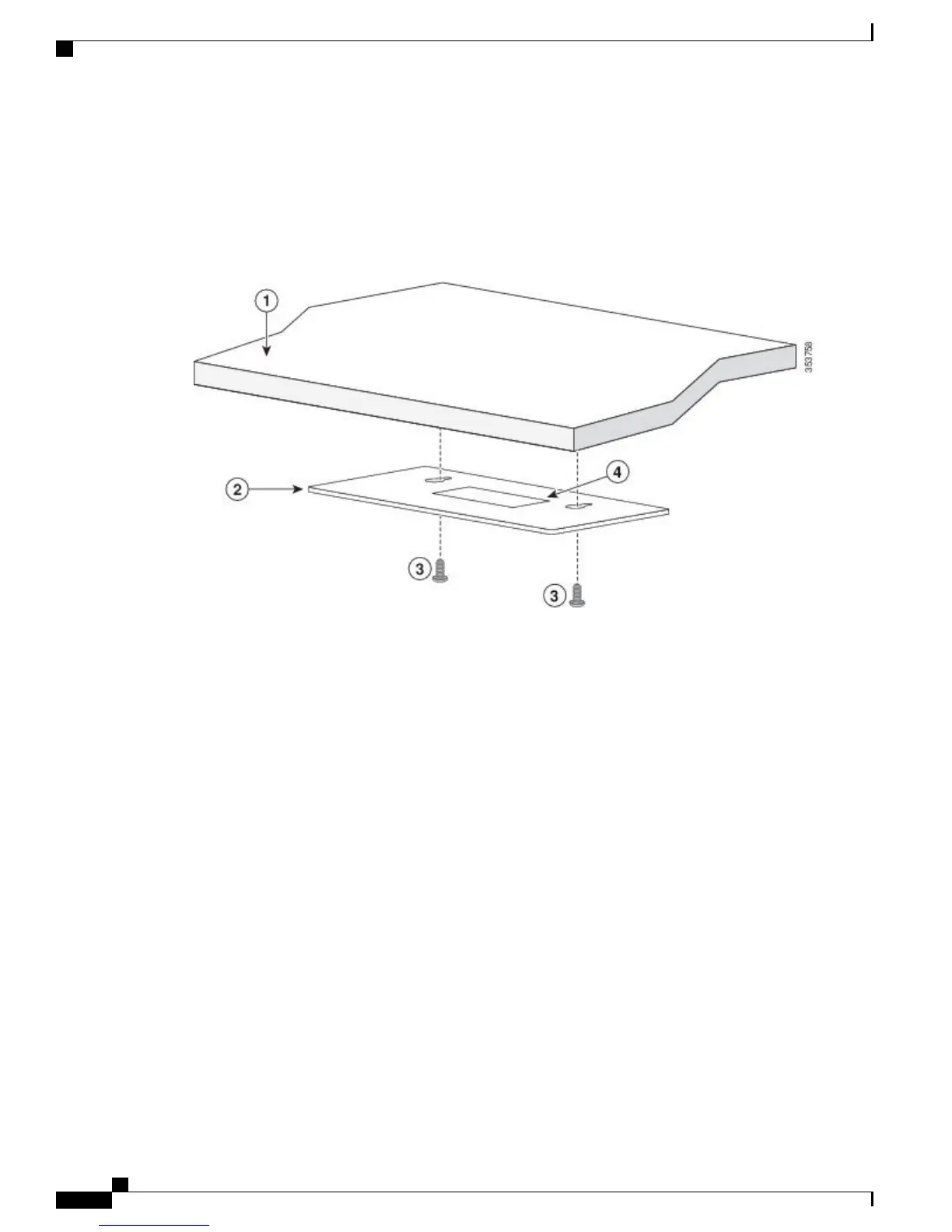

Figure 11: Installing the Mounting Screws Under a Desk or Shelf
Step 6
Remove the screw template from underneath the desk or shelf.
Step 7
Place the switch upside down onto the mounting screws, and slide it forward until it locks in place.
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
20
Switch Installation
On a Desk, Shelf, or Wall (with Mounting Screws)

Cisco Catalyst 2960-CX Specifications

General

PoE	No
DRAM	512 MB
MAC Address Table Size	16, 000 entries
Stacking	No
Model	Cisco Catalyst 2960-CX
Ports	8 x 10/100/1000 Ethernet ports
Uplink Interfaces	2 x 1G SFP
Power Input	100 to 240 VAC
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Power Consumption	15W
Relative Humidity	10 to 95% noncondensing
