Step 7
Remove the screw template from the wall.
Step 8
Place the switch onto the mounting screws, and slide it down until it locks in place.

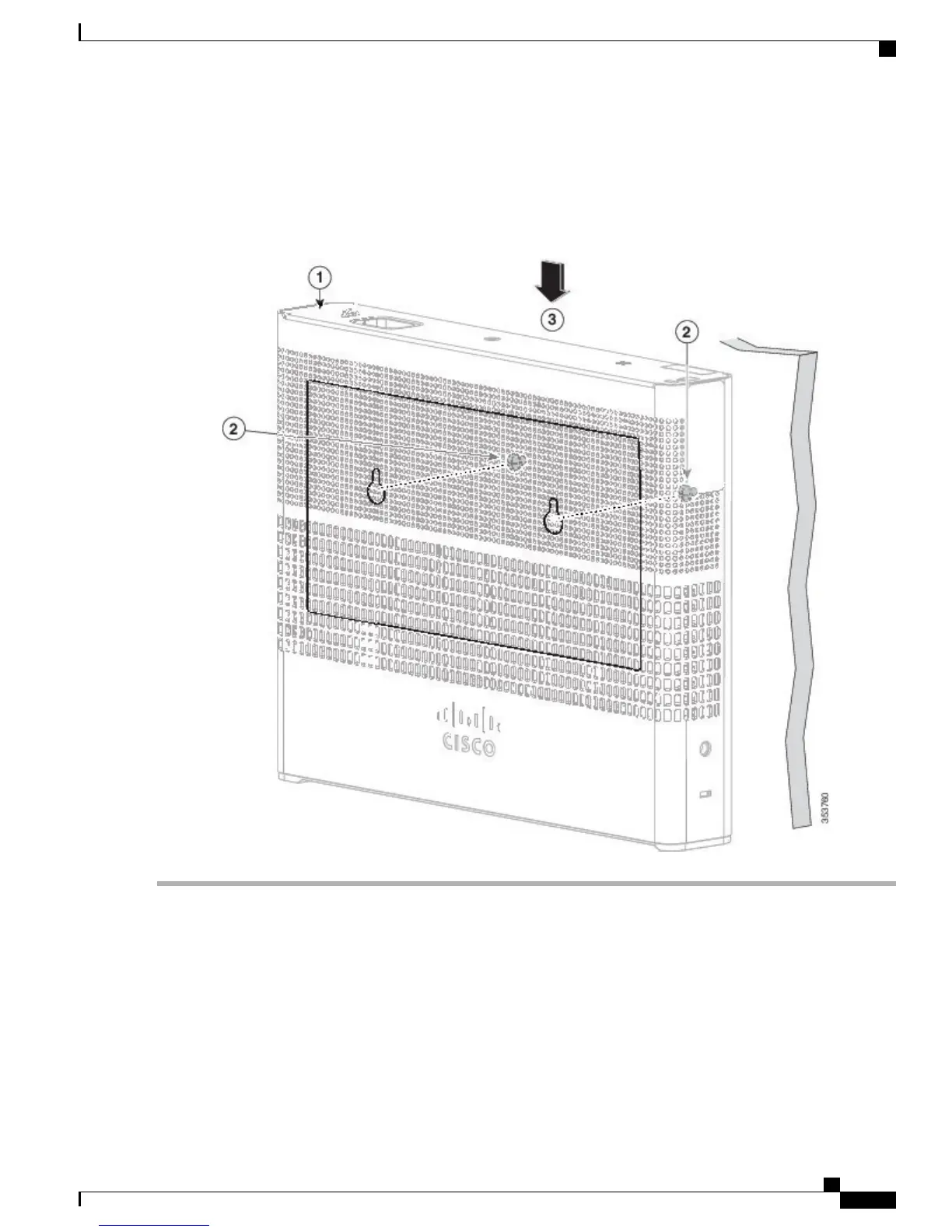

Figure 14: Installing the Switch on a Wall
With a Mounting Tray
The mounting kit (part number CMPCT-MGNT-TRAY=) is optional. You can order it when you order your
switch, or you can order it later from your Cisco representative.
The mounting kit ships contents:
•
Two number-10 Phillips pan-head screws
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
23
Switch Installation
With a Mounting Tray

Cisco Catalyst 2960-CX Specifications

General

PoE	No
DRAM	512 MB
MAC Address Table Size	16, 000 entries
Stacking	No
Model	Cisco Catalyst 2960-CX
Ports	8 x 10/100/1000 Ethernet ports
Uplink Interfaces	2 x 1G SFP
Power Input	100 to 240 VAC
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Power Consumption	15W
Relative Humidity	10 to 95% noncondensing
