Removing the Switch from a DIN Rail
Step 1
Ensure that power is removed from the switch, and disconnect all cables and connectors from the front panel of the
switch.
Step 2
Pull down on the DIN rail mount release tabs. As the clips release, lift the bottom of the switch.

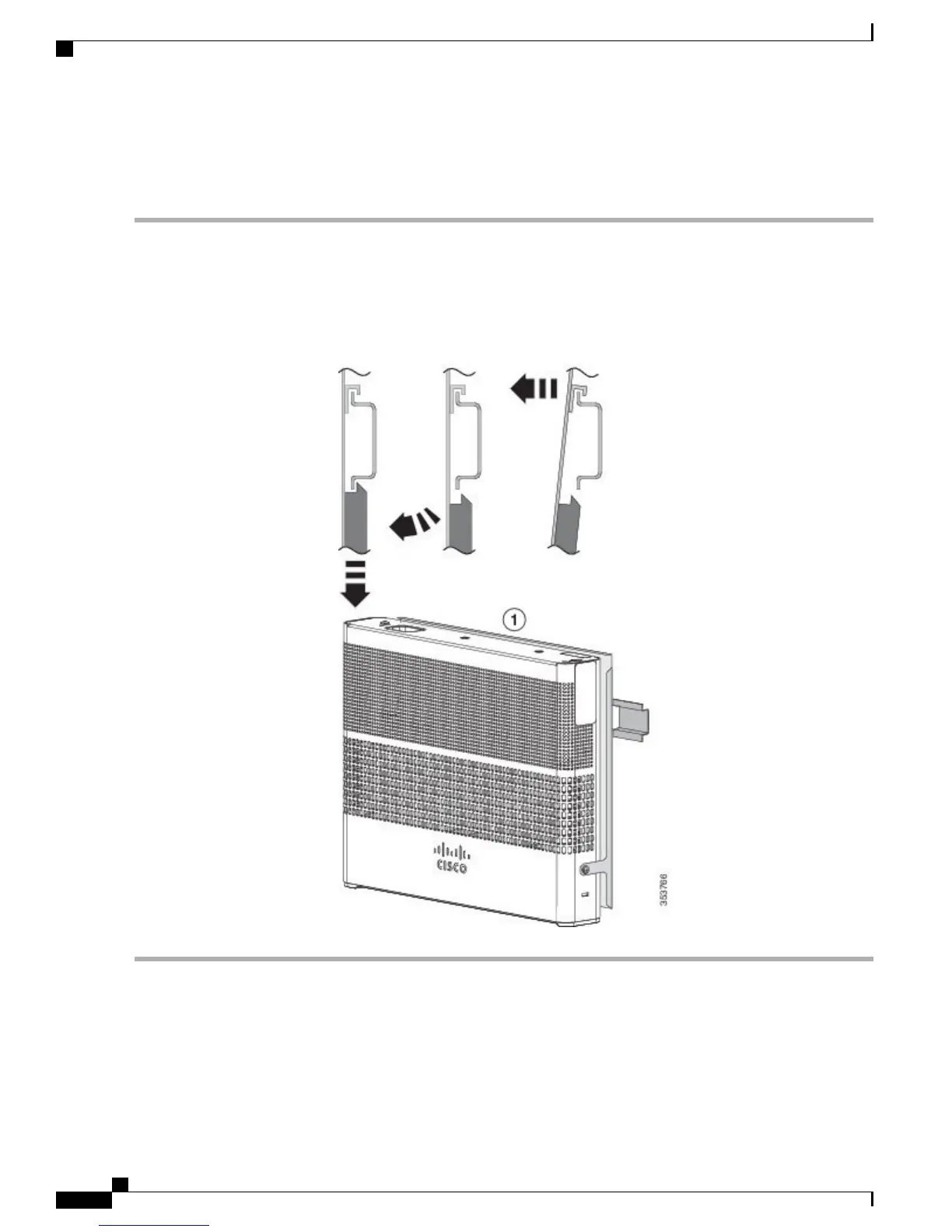

Figure 27: Switch Removal
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
34
Switch Installation
On a DIN Rail
