Do not wall-mount the switch with its front panel facing up. Following safety regulations, wall-mount the
switch with its front panel facing down or to the side, to allow sufficient airflow and to provide easier access
to the cables.
Caution

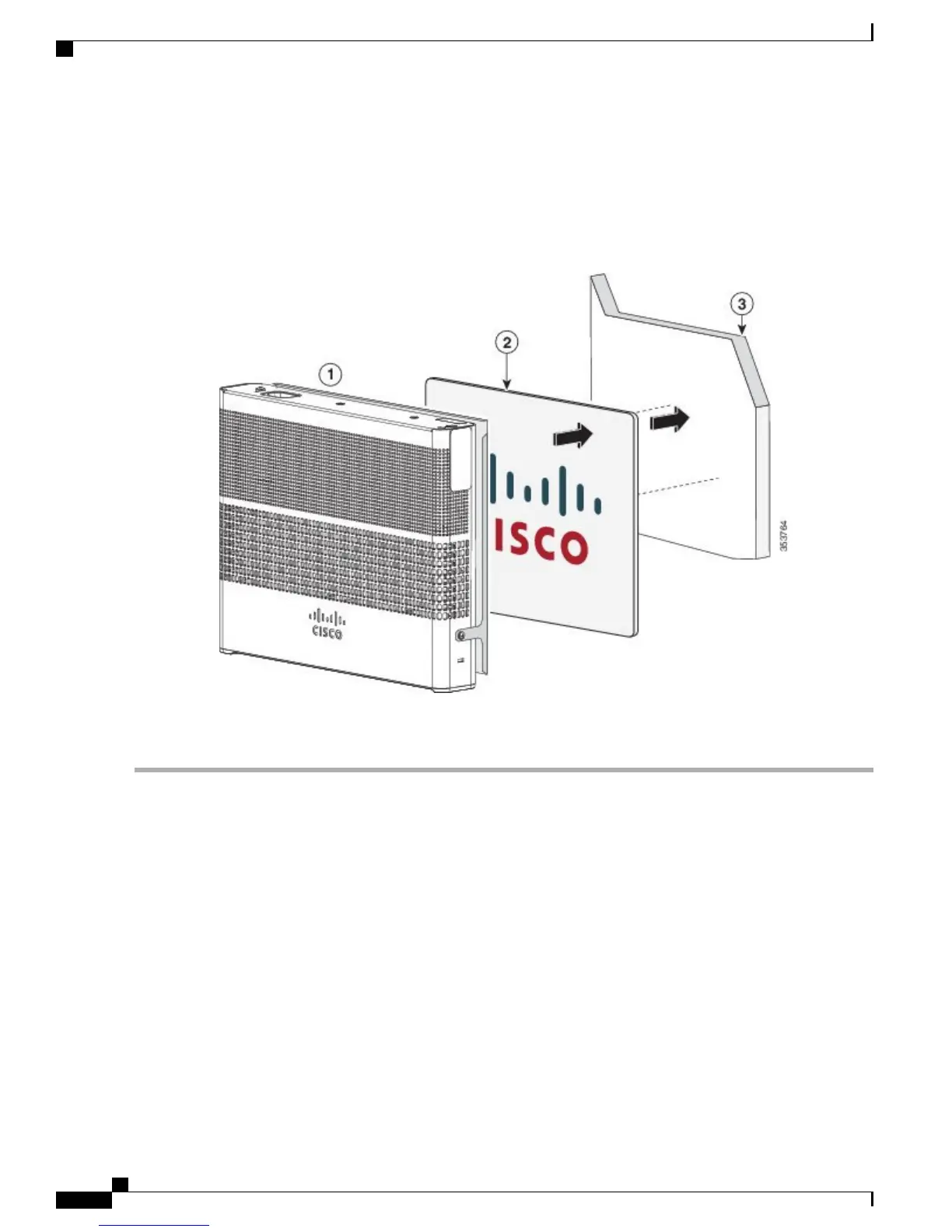

Figure 20: Wall-Mounting with a Magnet
To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 3 in. (7.6 cm) Statement
1076
In a Rack
Installing the switch in a rack requires an optional bracket kit that is not included with the switch. You can
order these kits from your Cisco representative:
•
19-inch rack-mounting brackets (RCKMNT-19-CMPCT=)
•
23- and 24-inch rack-mounting brackets (RCKMNT-23-CMPCT=)
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
28
Switch Installation
In a Rack
