Cable Pinouts

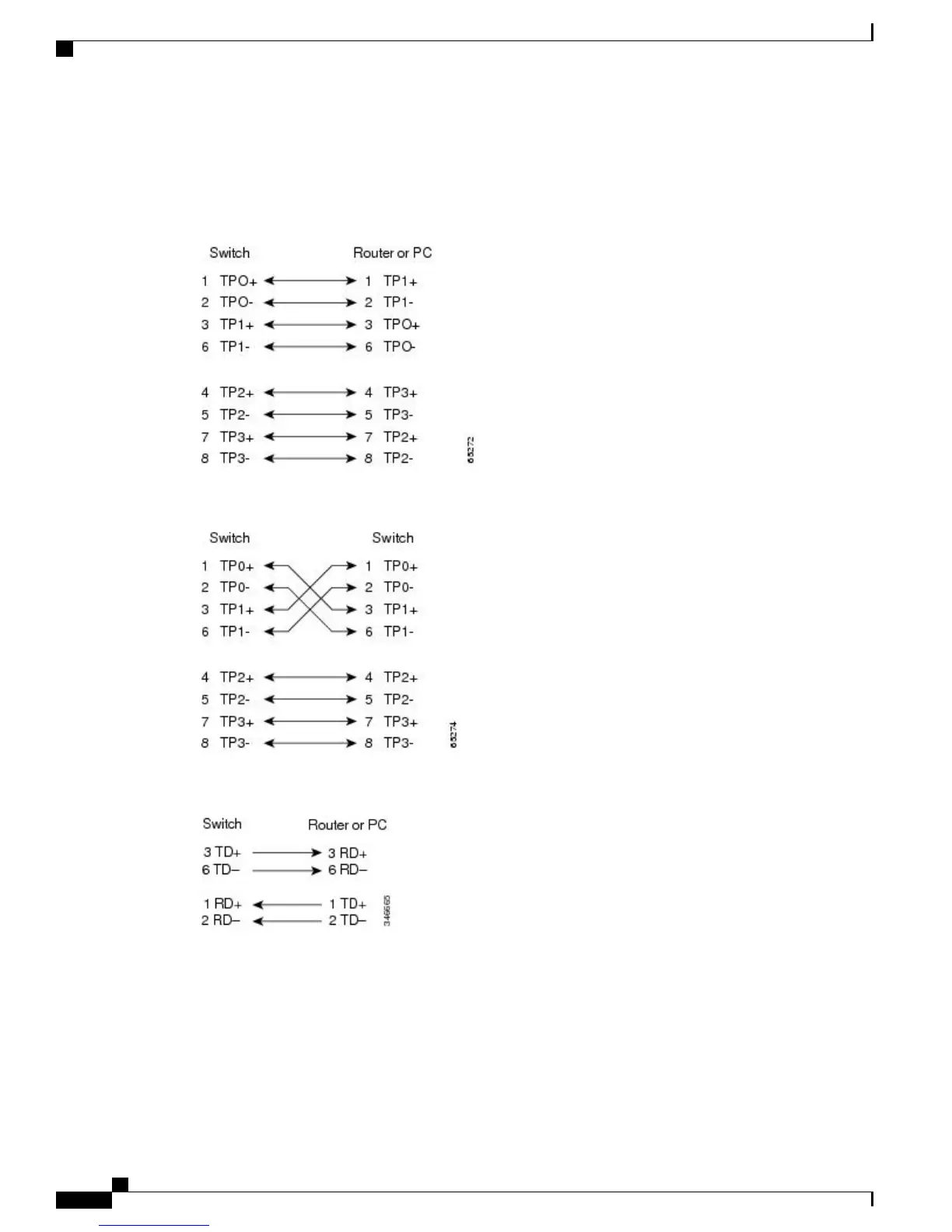

Figure 47: Four Twisted-Pair Straight-Through Cable Schematic
Figure 48: Four Twisted-Pair Semi-Cross Cable Schematic
Figure 49: Two Twisted-Pair Straight-Through Cable Schematic
Figure 50: Two Twisted-Pair Crossover Cable Schematic
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
62
Connector and Cable Specifications
Cable Pinouts

Cisco Catalyst 2960-CX Specifications

General

PoE	No
DRAM	512 MB
MAC Address Table Size	16, 000 entries
Stacking	No
Model	Cisco Catalyst 2960-CX
Ports	8 x 10/100/1000 Ethernet ports
Uplink Interfaces	2 x 1G SFP
Power Input	100 to 240 VAC
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Power Consumption	15W
Relative Humidity	10 to 95% noncondensing
