Step 4
Place the switch onto the mounting screws, and slide the switch until it locks into place.

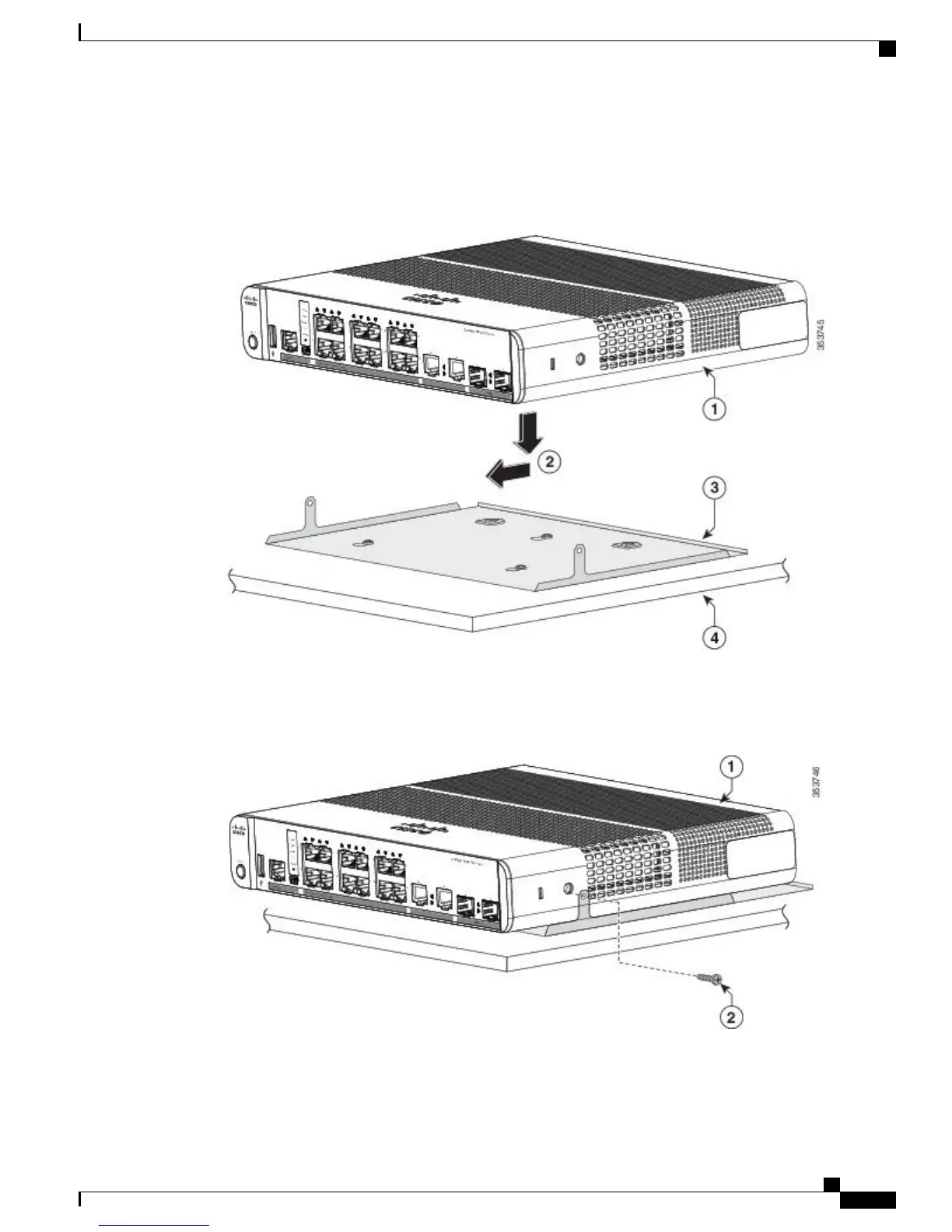

Figure 16: Installing the Switch on the Mounting Tray
Step 5
Use the two number-10 Phillips pan-head screws to secure the switch to the mounting tray.
Figure 17: Securing the Switch to the Mounting Tray
To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 3 in. (7.6 cm) Statement
1076
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
25
Switch Installation
With a Mounting Tray

Cisco Catalyst 2960-CX Specifications

General

PoE	No
DRAM	512 MB
MAC Address Table Size	16, 000 entries
Stacking	No
Model	Cisco Catalyst 2960-CX
Ports	8 x 10/100/1000 Ethernet ports
Uplink Interfaces	2 x 1G SFP
Power Input	100 to 240 VAC
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Power Consumption	15W
Relative Humidity	10 to 95% noncondensing
