Catalyst 3550 Multilayer Switch Software Configuration Guide

78-11194-09

Chapter 1 Overview

Network Configuration Examples

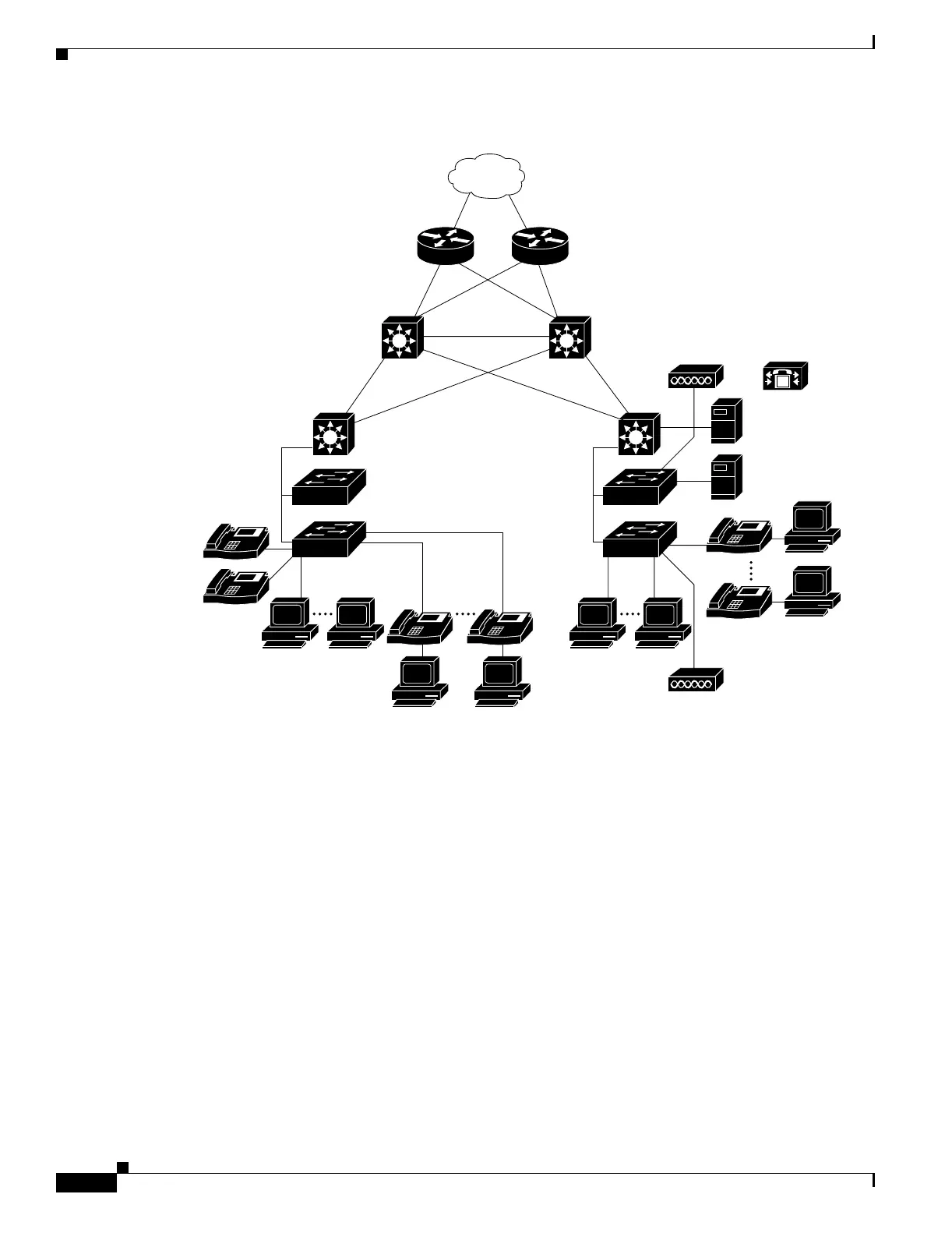

Figure 1-3 Catalyst 3550 Switches in Wiring Closets in a Backbone Configuration

Gigabit

servers

86391

Cisco IP

Phones

Cisco IP

Phones

Catalyst

3550

cluster

Catalyst

3550

cluster

Cisco 7500 routers

Catalyst 6000

multilayer switches

WAN

IP IP

Si Si

SiSi

Call

Manager

Cisco

Access point

Catalyst

3550-24PWR

Catalyst

3550-24PWR

Cisco

Access point
