DETAILED STEPS

Step 1

If you are connecting the switch USB console port to a Windows-based PC for the first time, install the USB driver. See

Installing the Cisco Microsoft Windows USB Device Driver, on page 69.

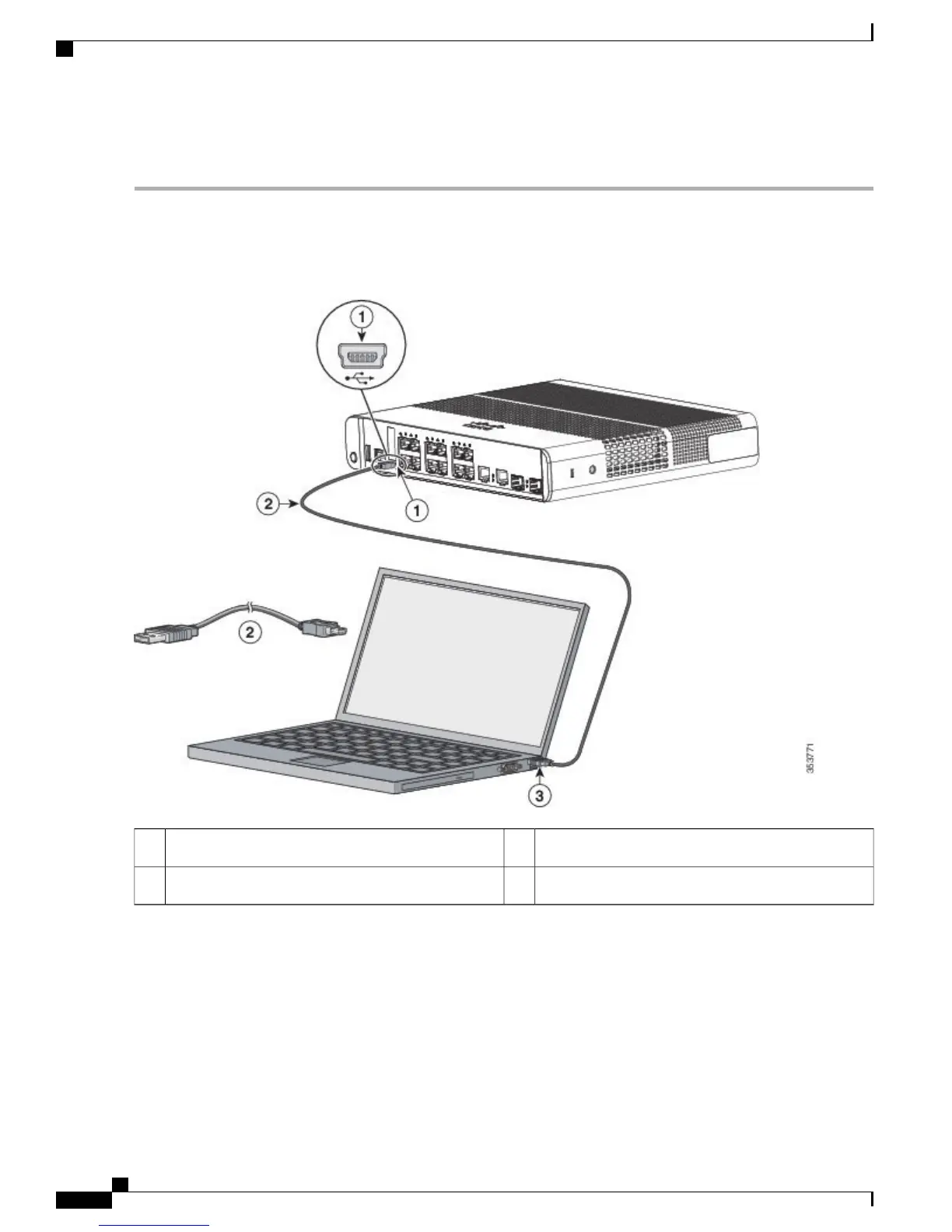

Figure 52: Connecting the USB Console Cable to the Switch

USB Type A connection on the laptop3USB console port (5-pin mini-Type B)1

USB Type A to 5-pin mini-Type B cable2

Step 2

Connect a USB cable to the PC USB port. Connect the other end of the cable to the switch mini-B (5-pin-connector)

USB console port.

Step 3

Start the terminal-emulation program on the PC or the terminal. The program, frequently a PC application such as

HyperTerminal or ProcommPlus, makes communication between the switch and your PC or terminal possible.

Step 4

Configure the baud rate and character format of the PC or terminal to match the console port default characteristics:

•

9600 baud

Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide

Configuring the Switch with the CLI-Based Setup Program

Connecting the USB Console Port
