Chapter 4 Power Supply Installation
Power Supply Module Overview

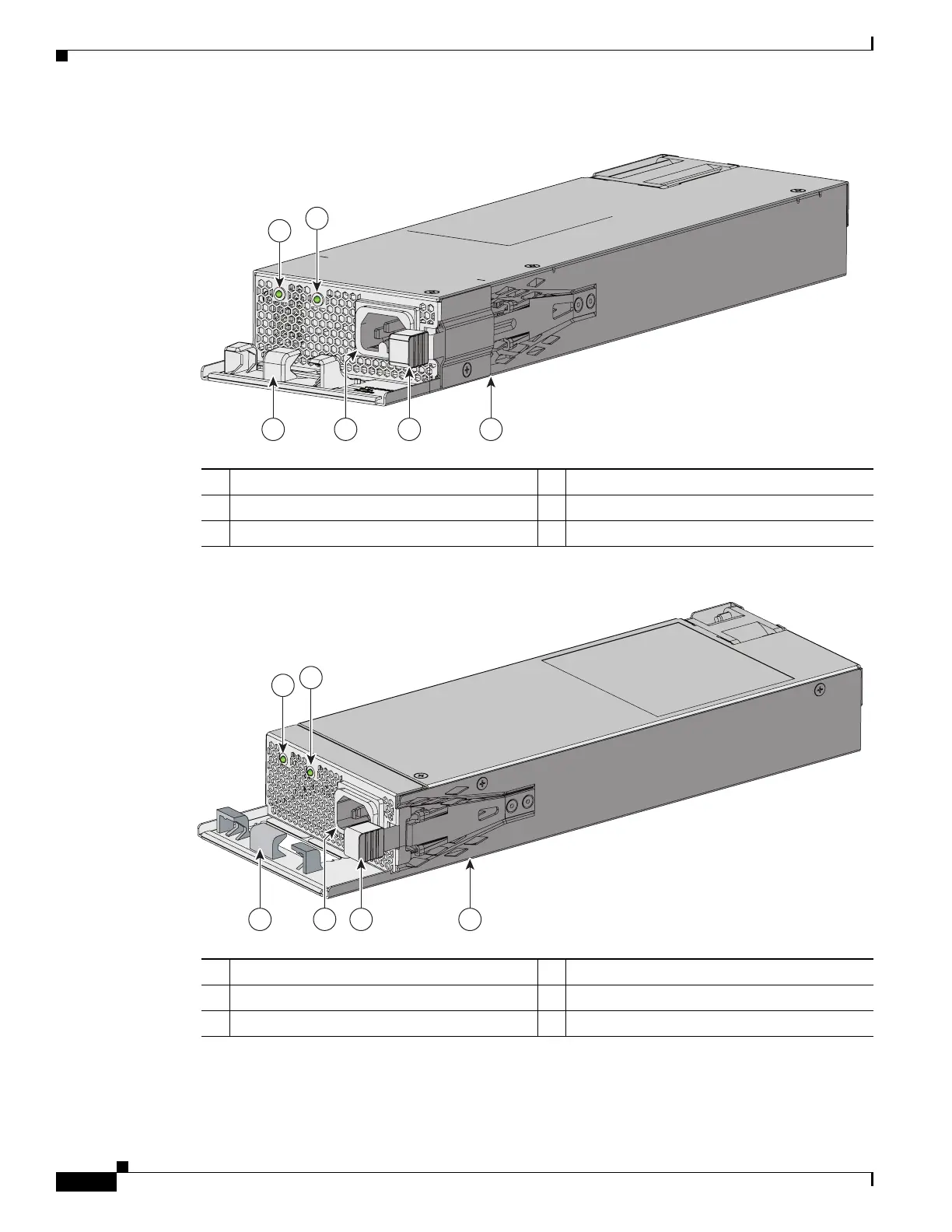

Figure 4-3 1025-W AC Power Supply
Figure 4-4 640-W AC Power Supply Module
1 AC OK LED 4 AC power cord connector
2 PS OK LED 5 Release latch
3 AC power cord retainer 6 1025-W AC power supply module
347623
PWR-C2-1025WAC
AC OK
PS OK
3 5 6
4
1
2
1 AC OK LED 4 AC power cord connector
2 PS OK LED 5 Release latch
3 AC power cord retainer 6 640-W AC power supply module
