Cisco Catalyst C3850 Series User Manual

APPENDIX B
Connector and Cable Specifications
• Connector Specifications, on page 119
• Console Port, on page 120
• Cables and Adapters, on page 121
Connector Specifications
10/100/1000 Ports (Including PoE)
All 10/100/1000 ports use standard RJ-45 connectors and Ethernet pinouts.

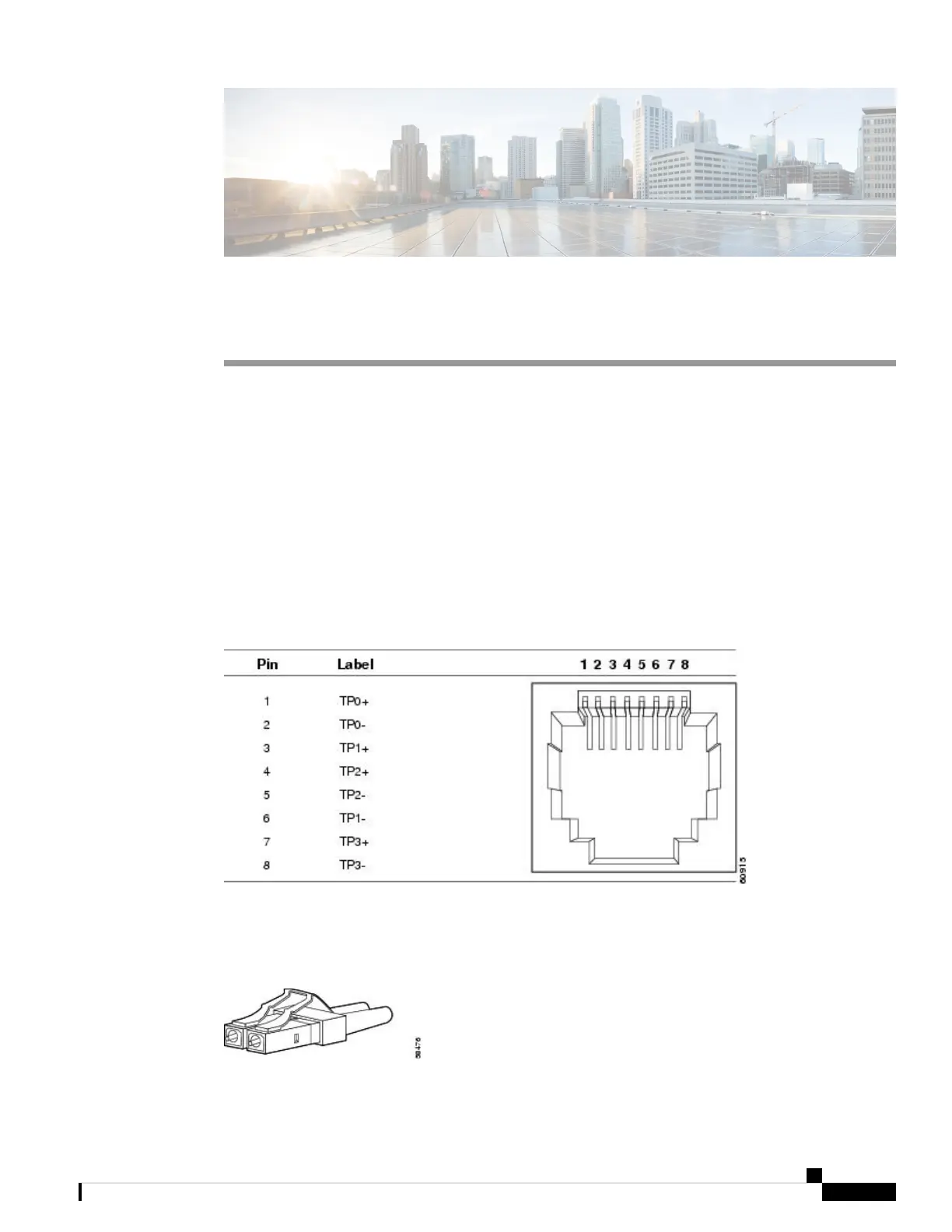

Figure 90: 10/100/1000 Port Pinouts
SFP Module Connectors
Figure 91: Duplex LC Cable Connector
Catalyst 3850 Switch Hardware Installation Guide
119OL-26779-05

Cisco Catalyst C3850 Series Specifications

General

Max Stacking Units	9
Layer Support	Layer 2 and Layer 3
RAM	4 GB
Flash Memory	4 GB
Series	Catalyst 3850
Power Supply Options	AC or DC
Software	Cisco IOS XE
Operating Temperature	32 to 113°F (0 to 45°C)
Ports	12, 24, or 48 x 10/100/1000 Ethernet ports
Uplink Interfaces	Optional 10G uplinks
