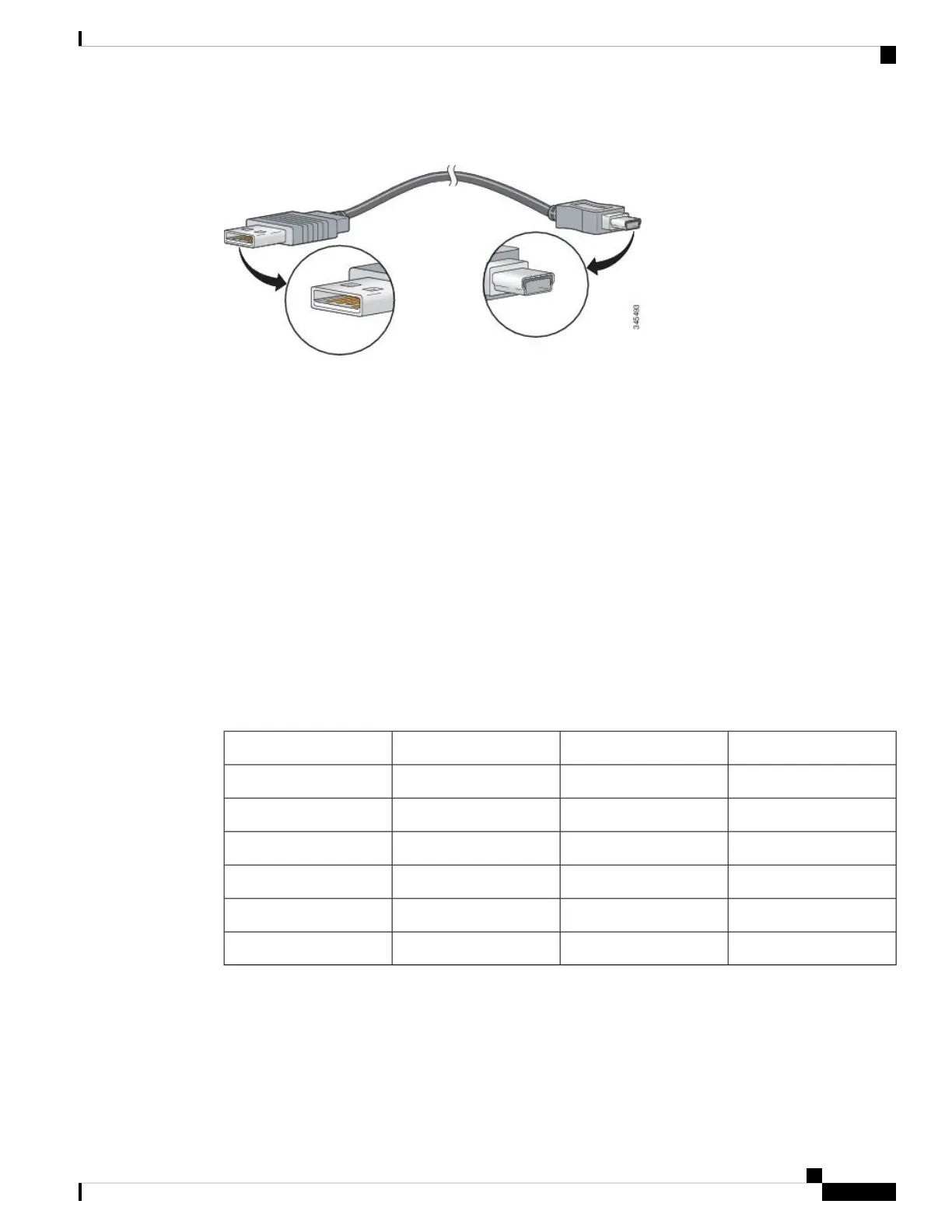

Figure 96: USB Type A-to-USB 5-Pin Mini-Type B Cable

The RJ-45 console port uses an 8-pin RJ-45 connection. The supplied RJ-45-to-DB-9 adapter cable is used

to connect the console port of the switch to a console PC. You need to provide a RJ-45-to-DB-25 female DTE

adapter if you want to connect the switch console port to a terminal.

Cables and Adapters

StackWise Cables

You can order these StackWise cables (nonhalogen) from your Cisco sales representative:

• STACK-T1-50CM= (0.5-meter cable)

• STACK-T1-1M= (1-meter cable)

• STACK-T1-3M= (3-meter cable)

Table 39: StackWise Cables Minimum Bend Radius and Coiled Diameter

Minimum Coiled DiameterMinimum Bend RadiusCable LengthCable Part Number

5.20 in. (132 mm)2.60 in. (66 mm)1.64 feet (0.5 m)STACK-T1-50CM

5.20 in. (132 mm)2.60 in. (66 mm)3.28 feet (1.0 m)STACK-T1-1M

7.17 in. (182 mm)3.58 in. (91 mm)9.84 feet (3.0 m)STACK-T1-3M

5.20 in. (132 mm)2.60 in. (66 mm)1.64 feet (0.5 m)STACK-T2-50CM

5.20 in. (132 mm)2.60 in. (66 mm)3.28 feet (1.0 m)STACK-T2-1M

7.17 in. (182 mm)3.58 in. (91 mm)9.84 feet (3.0 m)STACK-T2-3M

Transceiver Module Network Cables

For cabling specifications, refer to the following notes:

• Cisco SFP and SFP+ Transceiver Module Installation Notes

Catalyst 3850 Switch Hardware Installation Guide

121OL-26779-05

Connector and Cable Specifications

Cables and Adapters
