Figure 25: StackPower Ring Topology

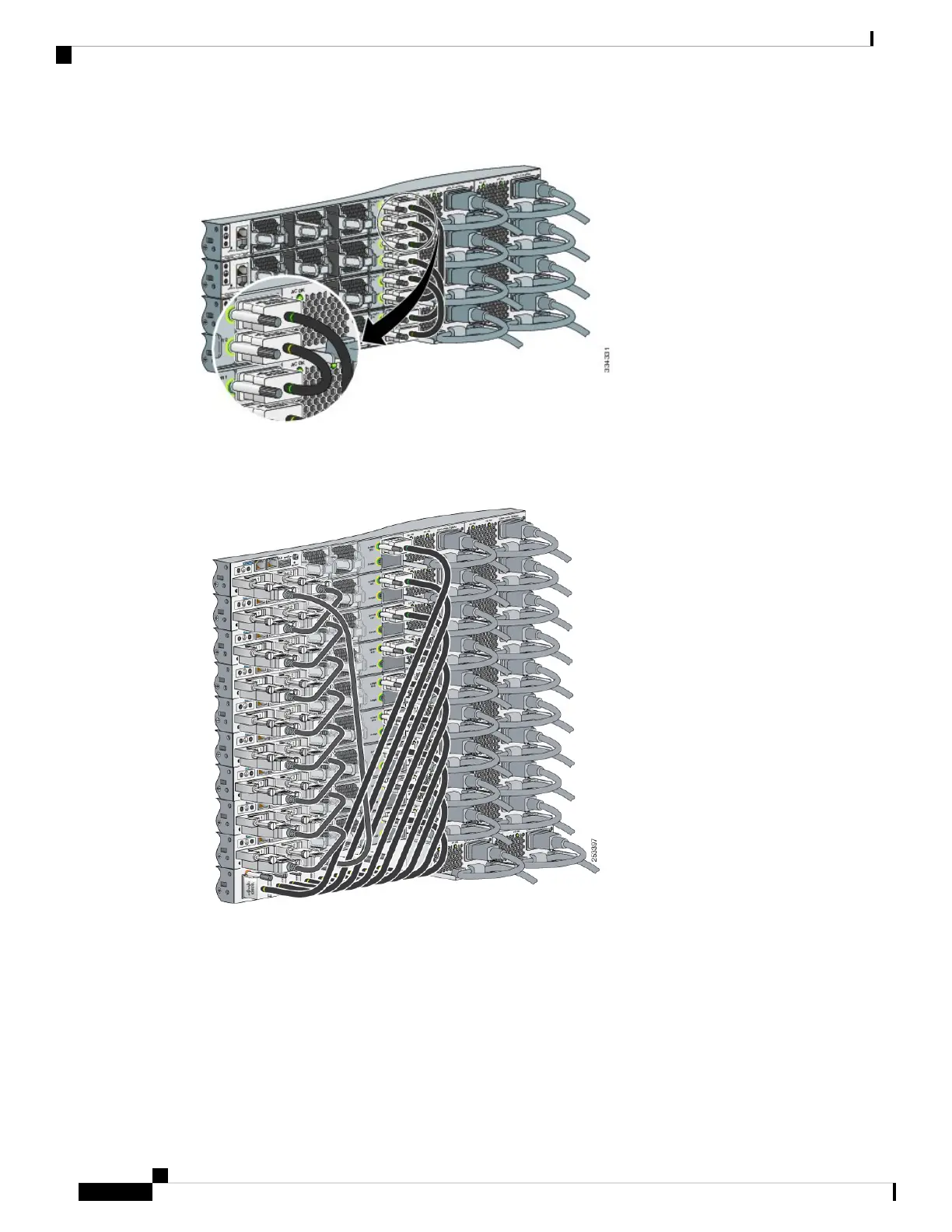

This figure shows 9 switches connected in a star topology.
Figure 26: StackPower Star Topology
StackPower Partitioning Examples
These figures show StackPower stacks of switches with failover conditions.
In the following figure, the StackPower cable 2 is faulty. Therefore, this stack does not provide redundancy.
Catalyst 3850 Switch Hardware Installation Guide
OL-26779-0542
Switch Installation
StackPower Partitioning Examples

Cisco Catalyst C3850 Series Specifications

General

Max Stacking Units	9
Layer Support	Layer 2 and Layer 3
RAM	4 GB
Flash Memory	4 GB
Series	Catalyst 3850
Power Supply Options	AC or DC
Software	Cisco IOS XE
Operating Temperature	32 to 113°F (0 to 45°C)
Ports	12, 24, or 48 x 10/100/1000 Ethernet ports
Uplink Interfaces	Optional 10G uplinks
