Step 2 Connect the end of the cable with a green band to either StackPower port on the first switch. Align the connector
correctly, and insert it into a StackPower port on the switch rear panel.
Step 3 Connect the end of the cable with the yellow band to another switch (to configure StackPower power sharing).
Step 4 Hand-tighten the captive screws to secure the StackPower cable connectors in place.

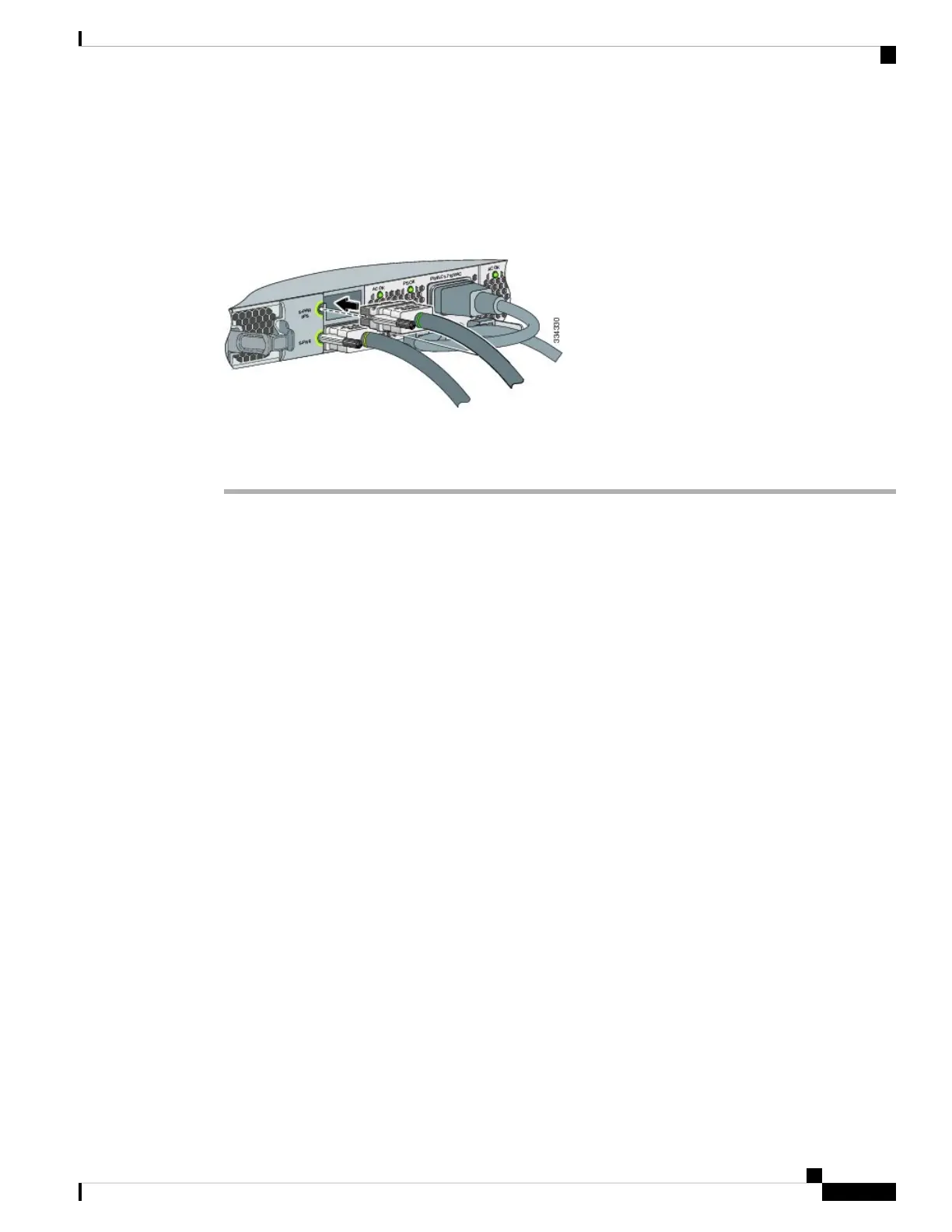

Figure 33: Connecting the StackPower Cable to a StackPower Port
Removing and installing the StackPower cable can shorten its useful life. Do not remove and insert
the cable more often than is absolutely necessary.
Caution
Installing a Network Module in the Switch
For information on network modules, see:
•
Installing and Removing Cisco Pluggable Transceiver Modules
See these sections for information on Cisco pluggable transceiver modules (SFP, SFP and QSFP+ modules):
• Installing SFP and SFP+ Modules, on page 65
• Removing Cisco Pluggable Transceiver Modules, on page 66
• Cisco 40-Gigabit QSFP+ Transceiver Modules Installation Note
Connecting Devices to the Ethernet Ports
• 10/100/1000/Multigigabit Ethernet Port Connections, on page 49
• PoE+ and Cisco UPOE Port Connections, on page 50
10/100/1000/Multigigabit Ethernet Port Connections
The switch 10/100/1000 and Multigigabit Ethernet port configuration changes to operate at the speed of the
attached device. If the attached ports do not support autonegotiation, you can manually set the speed and
Catalyst 3850 Switch Hardware Installation Guide
49OL-26779-05
Switch Installation
Installing a Network Module in the Switch

Cisco Catalyst C3850 Series Specifications

General

Max Stacking Units	9
Layer Support	Layer 2 and Layer 3
RAM	4 GB
Flash Memory	4 GB
Series	Catalyst 3850
Power Supply Options	AC or DC
Software	Cisco IOS XE
Operating Temperature	32 to 113°F (0 to 45°C)
Ports	12, 24, or 48 x 10/100/1000 Ethernet ports
Uplink Interfaces	Optional 10G uplinks
