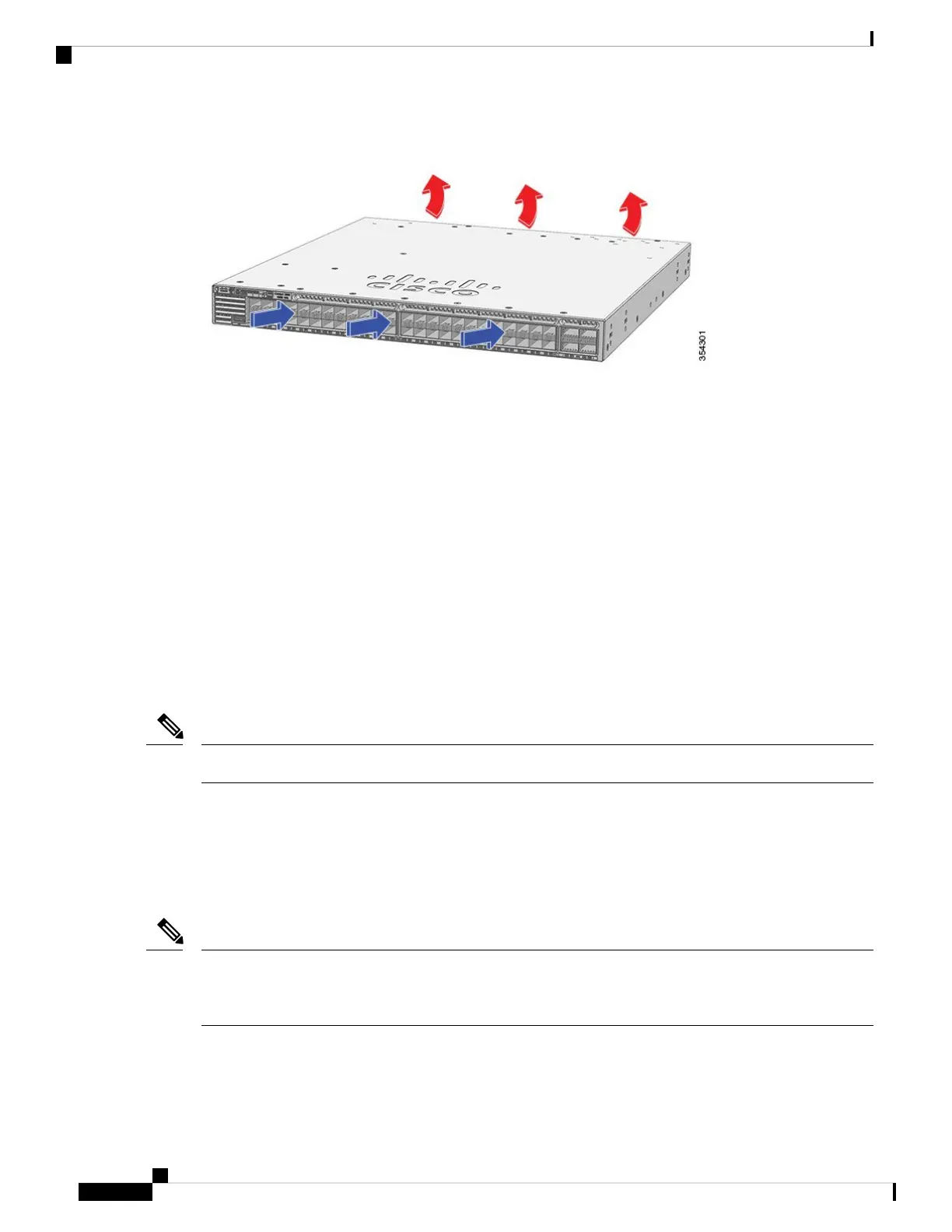

Figure 17: Airflow Patterns for the Catalyst 3850-48XS Switches (using Power Supplies and Fans with Red Handles)
For information about installing a fan module and fan specifications, see the "Technical Specifications"
chapter.
StackPower Connector
The C9300 switches have a StackPower connector for use with Cisco StackPower cables to configure a switch
power stack that includes up to nine switches. A switch power stack can be configured in redundant or
power-sharing mode.
You can order these StackPower cables from your Cisco sales representative:
• CAB-SPWR-30CM (0.3-meter cable)
• CAB-SPWR-150CM (1.5-meter cable)
For details about connecting StackPower cables and StackPower guidelines, see Planning a StackPower Stack,
on page 40.
Cisco Catalyst WS-C3850-48XS switch models do not have the StackPower connector.
Note
Ethernet Management Port
You can connect the switch to a host such as a Windows workstation or a terminal server through the
10/100/1000 Ethernet management port or one of the console ports. The 10/100/1000 Ethernet management
port is a VPN routing/forwarding (VRF) interface and uses a RJ-45 crossover or straight-through cable.
The 10/100/1000 Ethernet management port is an RJ-45 connector that should be connected to a Windows
workstation or a terminal server. Do not connect this port to another port in the same switch or to any port
within the same switch stack.
Note
Catalyst 3850 Switch Hardware Installation Guide
OL-26779-0530
Product Overview
StackPower Connector

Cisco Catalyst C3850 Series Specifications

General

Max Stacking Units	9
Layer Support	Layer 2 and Layer 3
RAM	4 GB
Flash Memory	4 GB
Series	Catalyst 3850
Power Supply Options	AC or DC
Software	Cisco IOS XE
Operating Temperature	32 to 113°F (0 to 45°C)
Ports	12, 24, or 48 x 10/100/1000 Ethernet ports
Uplink Interfaces	Optional 10G uplinks
