Cisco Catalyst C3850 Series User Manual

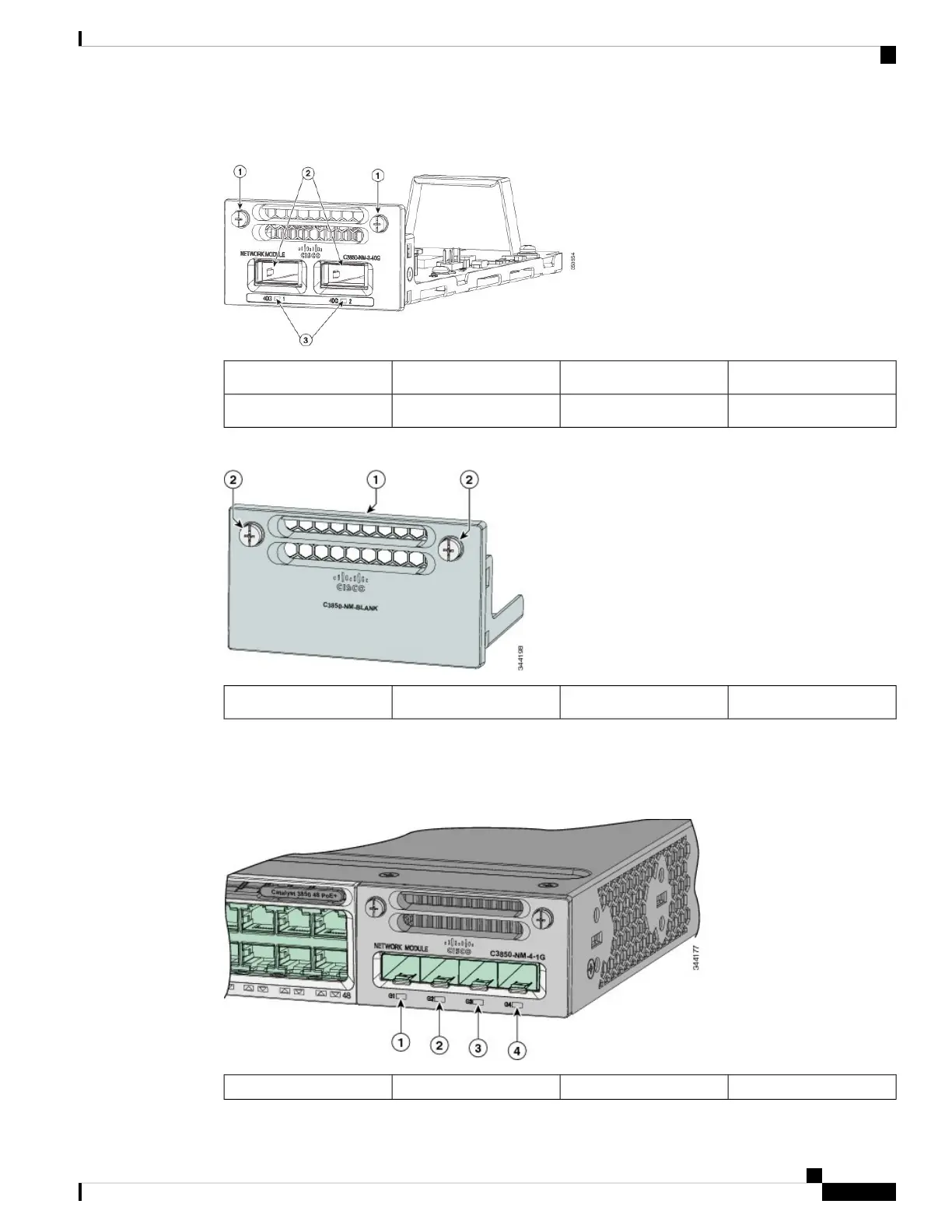

Figure 38: C3850-NM-2-40G Network Module
LEDs3Captive screws1
40 G QSFP+ slots2
Figure 39: Blank Network Module
Captive screws2Blank module1
Network Module LEDs
Figure 40: Network Module LEDs
G3 LED3G1 LED1
Catalyst 3850 Switch Hardware Installation Guide
57OL-26779-05
Installing a Network Module
Network Module LEDs

Cisco Catalyst C3850 Series Specifications

General

Max Stacking Units	9
Layer Support	Layer 2 and Layer 3
RAM	4 GB
Flash Memory	4 GB
Series	Catalyst 3850
Power Supply Options	AC or DC
Software	Cisco IOS XE
Operating Temperature	32 to 113°F (0 to 45°C)
Ports	12, 24, or 48 x 10/100/1000 Ethernet ports
Uplink Interfaces	Optional 10G uplinks
