USB Type A storage ports5Blue Beacon (UID button)1
10/100/1000 PoE+ ports6Mode button2
Fixed uplink ports7Status LEDs3
USB mini-Type B (console) port4

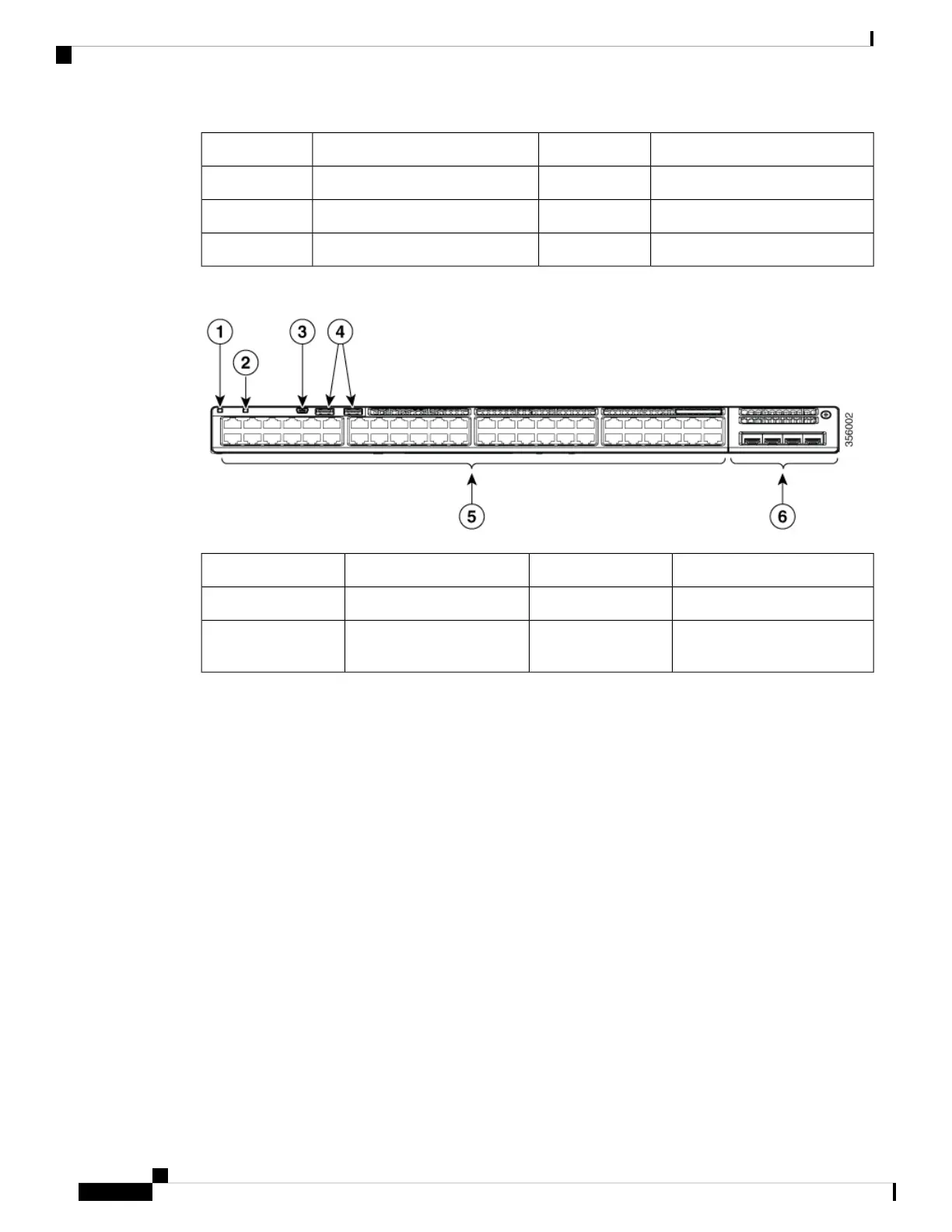

Figure 2: Front Panel of a C9200 Switch
USB Type A storage ports4Blue Beacon (UID button)1
10/100/1000 PoE+ ports5Mode button2
Network Module with uplink
ports
6USB mini-Type B (console)
port
3
10/100/1000 Ports
The 10/100/1000 ports use RJ-45 connectors with Ethernet pinouts. The maximum cable length is 328 feet
(100 meters). The 100BASE-TX and 1000BASE-T traffic requires twisted pair (UTP) cable of Category 5
or higher. The 10BASE-T traffic can use Category 3 cable or higher.
PoE and PoE+ Ports
The PoE and PoE+ ports provide the following functionality:
• PoE/PoE+ ports: Support for IEEE 802.3af-compliant powered devices (up to 15.4W PoE per port) and
support for IEEE 802.3at-compliant powered devices (up to 30W PoE+ per port).
• Support for pre-standard Cisco powered devices.
• Configurable support for Cisco intelligent power management, including enhanced power negotiation,
power reservation, and per-port power policing.
See the Power Supply Modules, on page 9 for the power supply matrix that defines the available PoE and
PoE+ power per port. The output of the PoE+ circuit has been evaluated as a Limited Power Source (LPS)
per IEC 60950-1.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
4
Product Overview
10/100/1000 Ports
