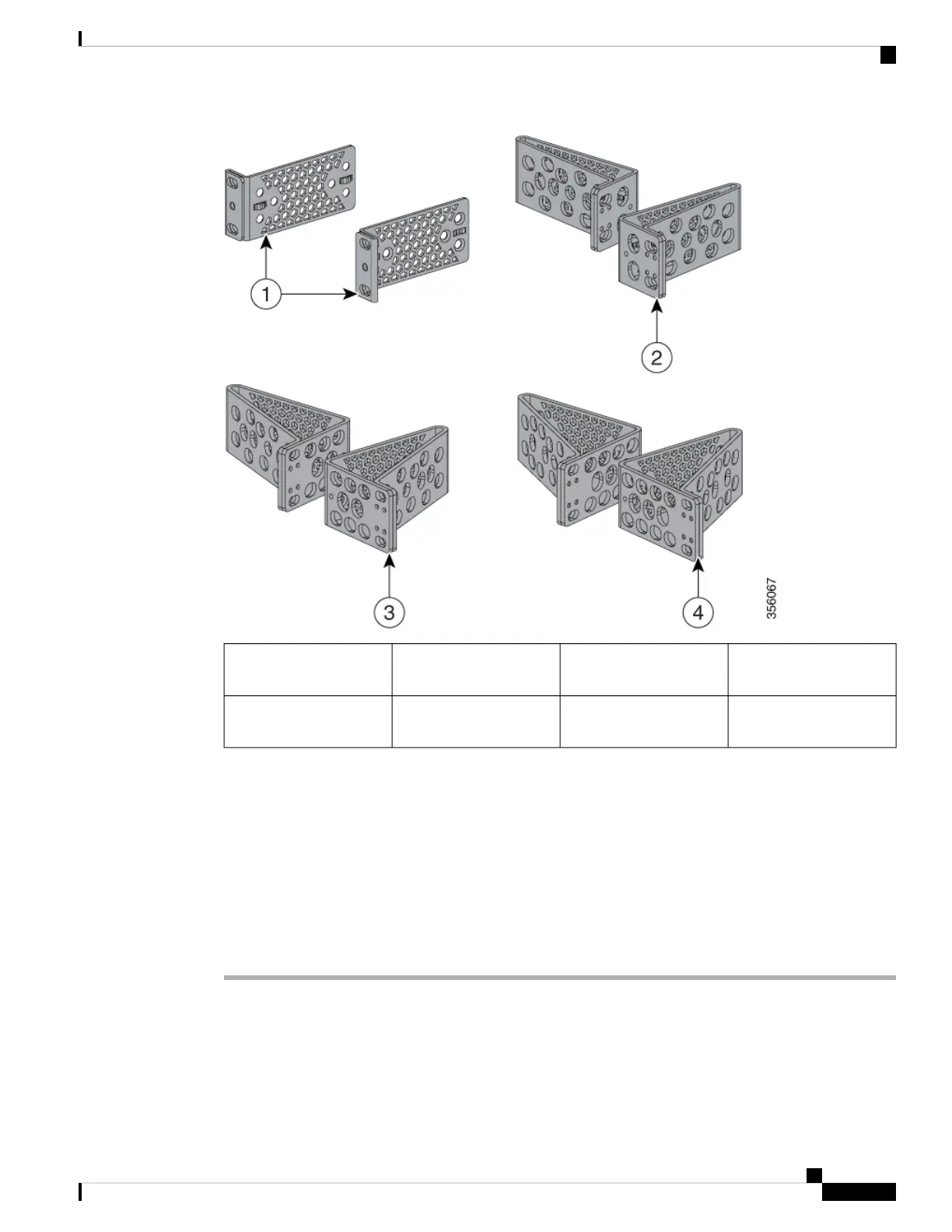

23-inch brackets
(RACK-KIT-T1=)
319-inch brackets
(ACC-KIT-T1=)
1
24-inch brackets
(RACK-KIT-T1=)
4ETSI brackets
(RACK-KIT-T1=)
2
Attaching the Rack-Mount Brackets
Before you begin
You can use the minimum recommended number of two screws for installing the rack-mount bracket to each
side of the switch. If required, while mounting, you can use the additional four screws provided in the accessory
kit.
Procedure
Use two Phillips flat-head screws to attach the long side of the bracket to each side of the switch for the front-
or rear-mounting positions.
The following illustration shows a C9200L switch. C9200 switches follow the same method for installing the
rack mount bracket.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
25
Installing the Switch
Attaching the Rack-Mount Brackets
