Step 6 In the Management Details section, type an IP address to identify the SNMP server. SNMPv1, SNMPv2,
and SNMPv3 are supported on your device.
Step 7 Specify the SNMP community string to permit access to the SNMP protocol.

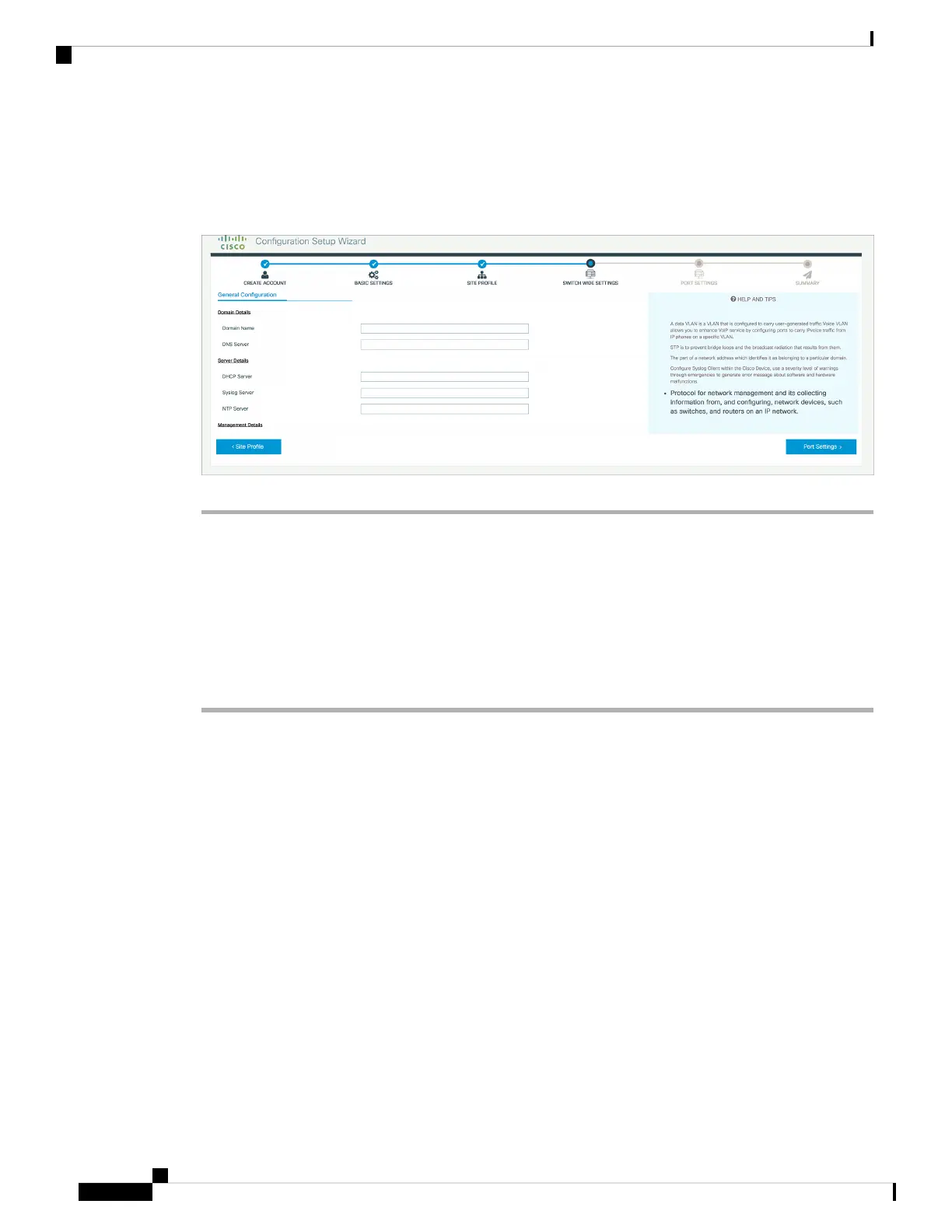

Figure 47: DHCP, NTP, DNS and SNMP Settings
What to do next
Configure port settings.
Configuring Port Settings
Procedure
Step 1 Based on the site profile chosen in the earlier step which is displayed in the left-pane, select the Port Role
from among the following options:
• Uplink – For connecting to devices towards the core of the network.
• Downlink – For connecting to devices further down in the network topology.
• Access – For connecting guest devices that are VLAN-unaware.
Step 2 Choose an option from the Select Switch drop-down list.
Step 3 Make selections from the Available list of interfaces based on how you want to enable them and move them
to the Enabled list.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
66
Configuring the Switch
Configuring Port Settings

Cisco Catalyst C9200-48T Specifications

General

Total 10/100/1000 or Multigigabit copper ports	48 x 10/100/1000
Switching Capacity	176 Gbps
DRAM	4 GB
Flash	16 GB
PoE Support	No
MTBF	1, 000, 000 hours
Power Device	Internal power supply
Rack Mountable	Yes
Product Type	Layer 3 Switch
Uplink Ports	4 x 10 Gigabit Ethernet
Input Voltage	AC 120/230 V
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Operating Temperature	0 to 45°C
