Cisco Catalyst C9200-48T User Manual

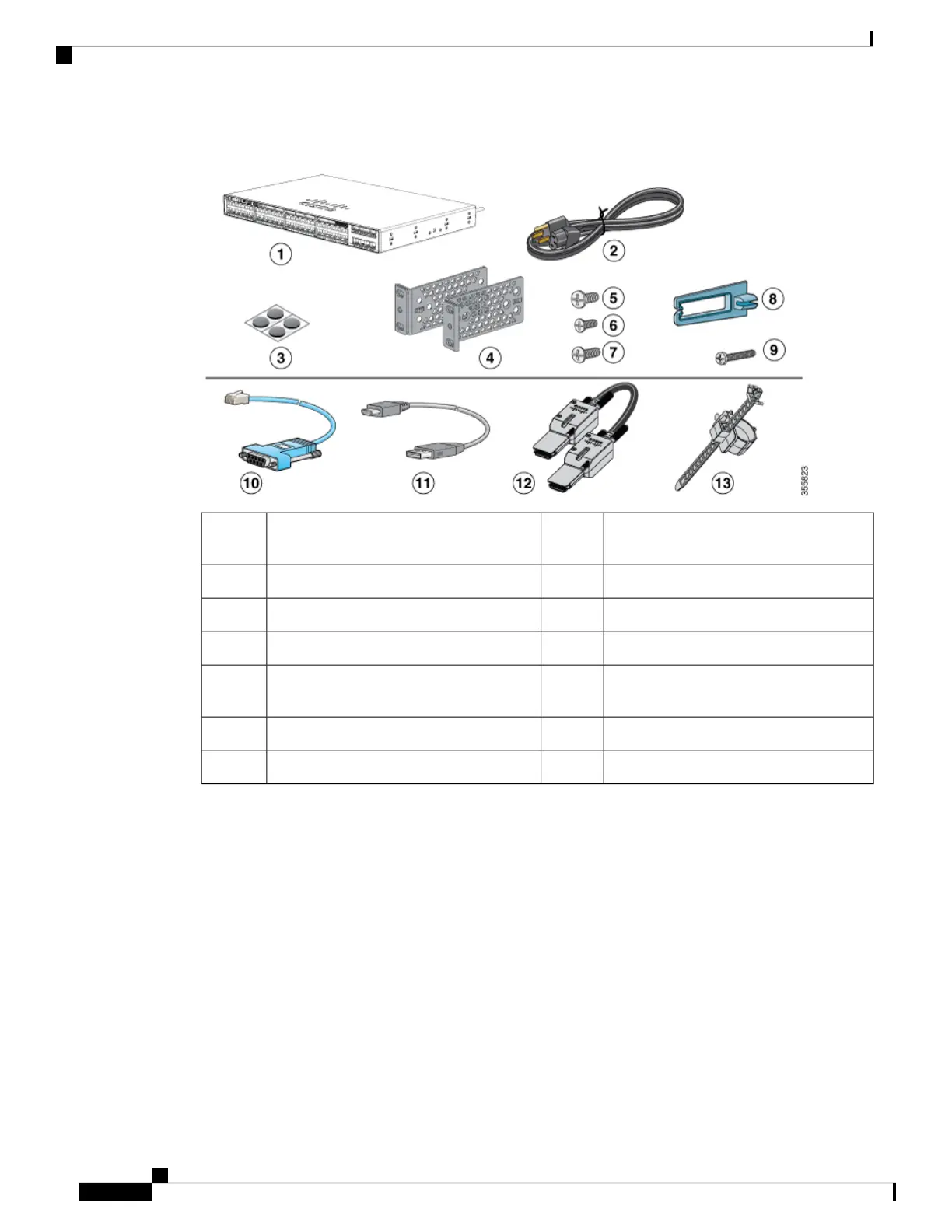

Figure 8: Components delivered in the shipping box
Cable guide8Cisco Catalyst 9200 Series switch
1
(power
supply modules are not displayed)
1
M4.0 x 20mm Phillips pan-head screw9AC power cord2
RJ-45 USB console cable
1
10Four rubber mounting feet3
(Optional) USB console cable
1
11Two 19-inch mounting brackets4
(Optional) StackWise cable
1
(0.5-meter,
1-meter, or 3-meter)
124 number-12 pan-head screw5
Power cord retainer134 number-10 pan-head screws6
--8 number-8 Phillips flat-head screws7
1. Item is orderable.
Tools and Equipment
Obtain these necessary tools:
• A Number-2 Phillips screwdriver.
Verifying Switch Operation
Before you install the switch in a rack or on a table or shelf, power on the switch and verify that it passes
POST.
To power on the switch, plug one end of the AC power cord into the switch AC power connector, and plug
the other end into an AC power outlet.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
18
Installing the Switch
Tools and Equipment

Cisco Catalyst C9200-48T Specifications

General

Total 10/100/1000 or Multigigabit copper ports	48 x 10/100/1000
Switching Capacity	176 Gbps
DRAM	4 GB
Flash	16 GB
PoE Support	No
MTBF	1, 000, 000 hours
Power Device	Internal power supply
Rack Mountable	Yes
Product Type	Layer 3 Switch
Uplink Ports	4 x 10 Gigabit Ethernet
Input Voltage	AC 120/230 V
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Operating Temperature	0 to 45°C
