connections. The configuration example uses the supplied 0.5-meter StackWise cable. The example shows
the full-ring configuration that provides redundant connections.

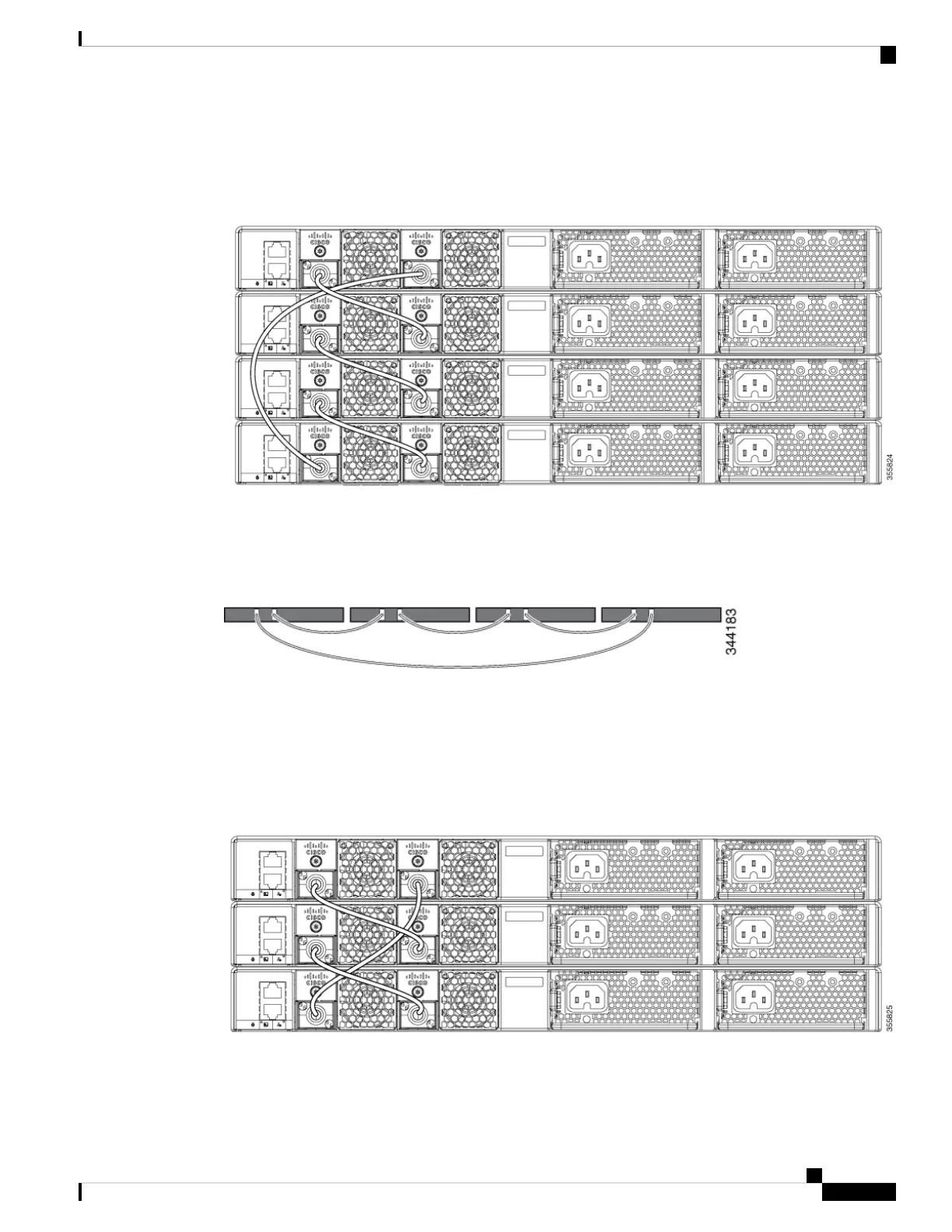

Figure 9: Data Stacking the Switches in a Rack or on a Table Using the 0.5-meter StackWise Cables
This example shows a recommended configuration when the switches are mounted side-by-side. Use the
1-meter and the 3-meter StackWise cables to connect the switches. This configuration provides redundant
connections.
Figure 10: Data Stacking in a Side-by-Side Mounting
Data Stack Bandwidth and Partitioning Examples
This section provides examples of data stack bandwidth and possible data stack partitioning. The figure shows
a data stack of switches that provides full bandwidth and redundant StackWise cable connections.
Figure 11: Example of a Data Stack with Full Bandwidth Connections
This figure shows an example of a stack of switches with incomplete StackWise cabling connections. This
stack provides only half bandwidth and does not have redundant connections.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
21
Installing the Switch
Data Stack Bandwidth and Partitioning Examples

Cisco Catalyst C9200-48T Specifications

General

Total 10/100/1000 or Multigigabit copper ports	48 x 10/100/1000
Switching Capacity	176 Gbps
DRAM	4 GB
Flash	16 GB
PoE Support	No
MTBF	1, 000, 000 hours
Power Device	Internal power supply
Rack Mountable	Yes
Product Type	Layer 3 Switch
Uplink Ports	4 x 10 Gigabit Ethernet
Input Voltage	AC 120/230 V
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Operating Temperature	0 to 45°C
