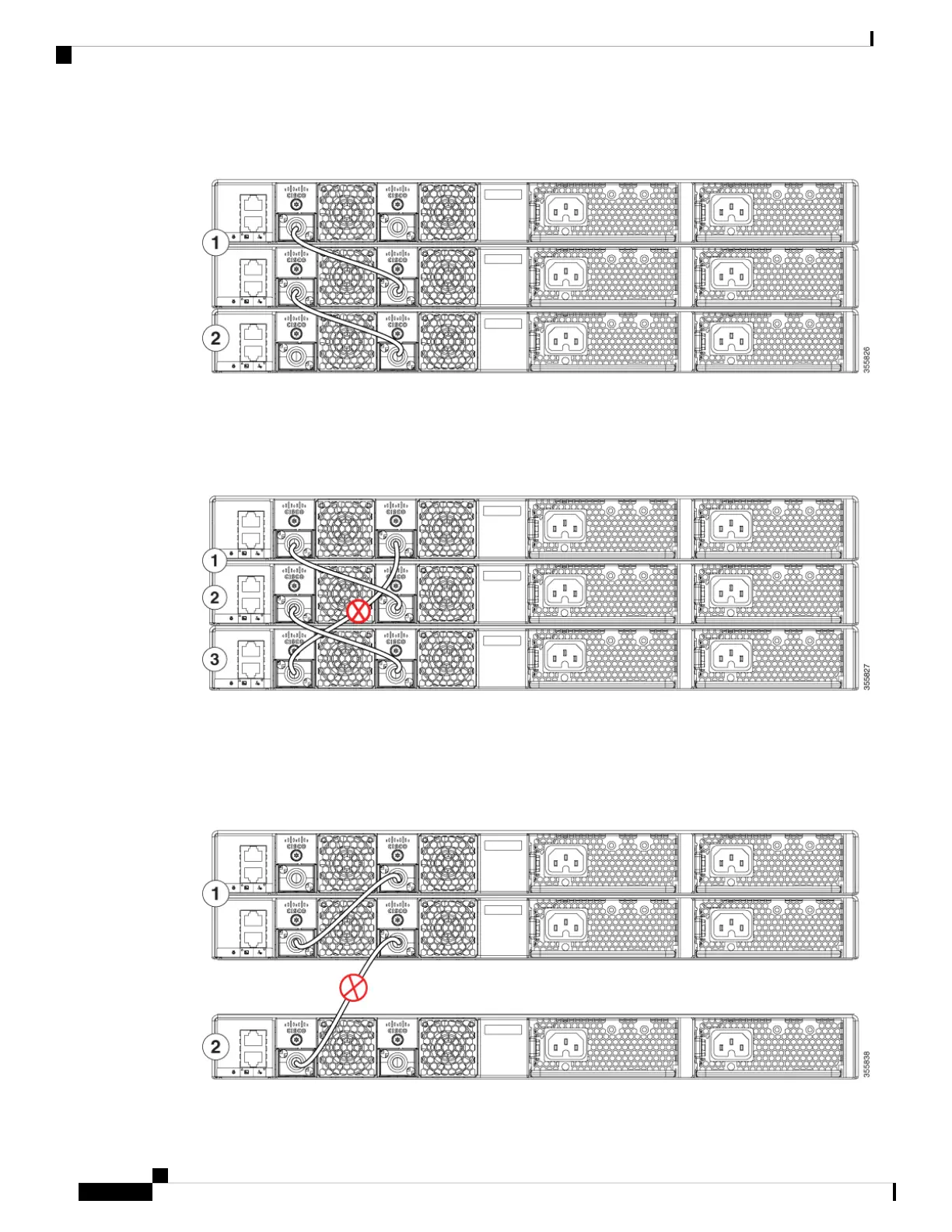

Figure 12: Example of a Data Stack with Half Bandwidth Connections
The figures below show data stacks of switches with failover conditions. In this figure, the StackWise cable
is bad in link 2. Therefore, this stack provides only half bandwidth and does not have redundant connections.
Figure 13: Example of a Data Stack with a Failover Condition
In this figure, link 2 is bad. Therefore, this stack partitions into two stacks, and the top and bottom switches
become the active switch in the stack. If the bottom switch is a member (not active or standby switch), it
reloads.
Figure 14: Example of a Partitioned Data Stack with a Failover Condition
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
22
Installing the Switch
Data Stack Bandwidth and Partitioning Examples

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Cisco Catalyst C9200-48T and is the answer not in the manual?

Cisco Catalyst C9200-48T Specifications

General IconGeneral
Total 10/100/1000 or Multigigabit copper ports48 x 10/100/1000
Switching Capacity176 Gbps
DRAM4 GB
Flash16 GB
PoE SupportNo
MTBF1, 000, 000 hours
Power DeviceInternal power supply
Rack MountableYes
Product TypeLayer 3 Switch
Uplink Ports4 x 10 Gigabit Ethernet
Input VoltageAC 120/230 V
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+
Operating Temperature0 to 45°C
