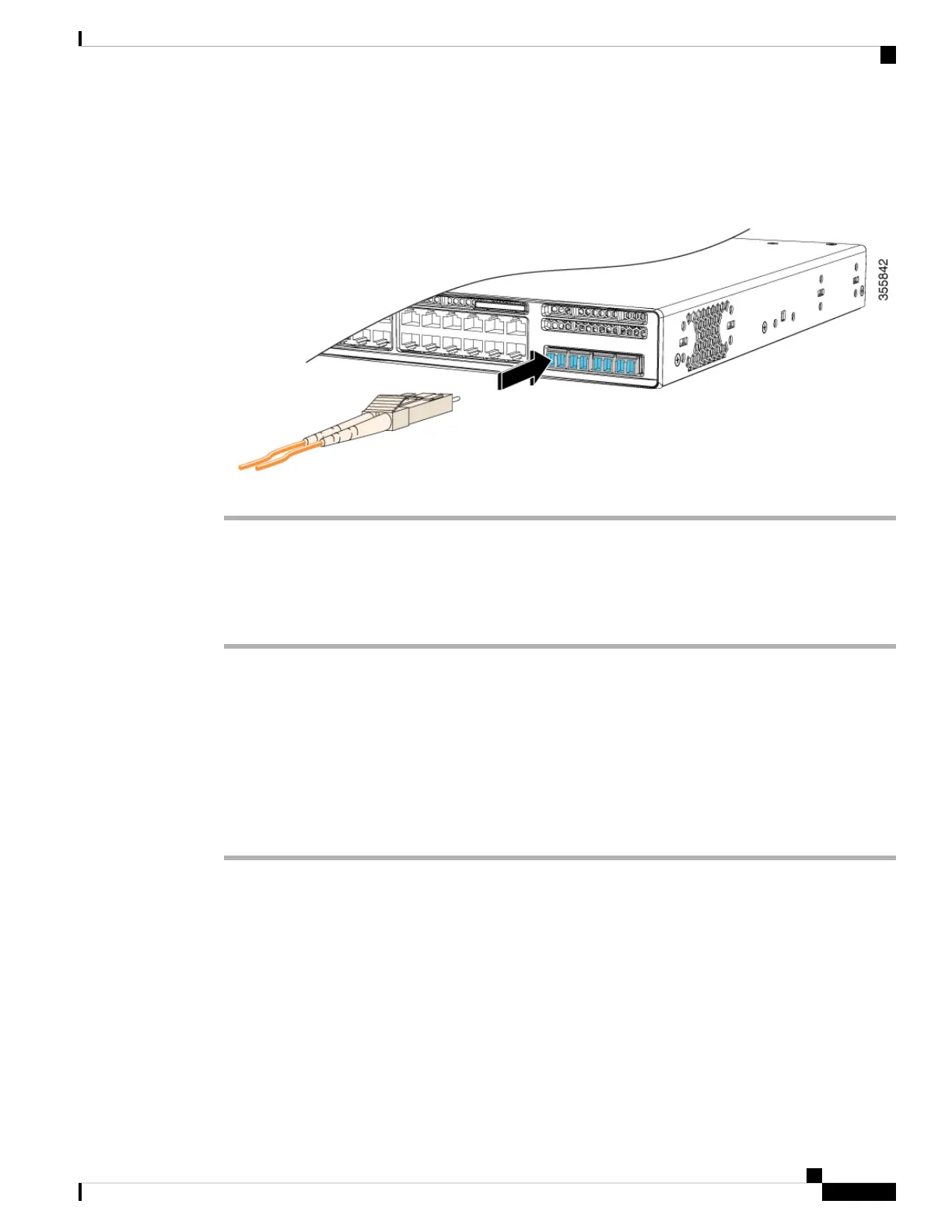

Figure 25: Installing a Transceiver Module in the Uplink Module Slot
Removing a Cisco Pluggable Transceiver Module
Procedure
Step 1 Attach an ESD-preventive wrist strap to your wrist and to an earth ground surface.
Step 2 Disconnect the cable from the transceiver module. For reattachment, note which cable connector plug is send
(TX) and which is receive (RX).
Step 3 Insert a dust plug into the optical ports of the transceiver module to keep the optical interfaces clean.
Step 4 If the module has a bale-clasp latch, pull the bale out and down to eject the module. If you cannot use your
finger to open the latch, use a small, flat-blade screwdriver or other long, narrow instrument to open it.
Step 5 Grasp the transceiver module and carefully remove it from the slot.
Step 6 Place the transceiver module in an antistatic bag or other protective environment.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
39
Installing a Network Module
Removing a Cisco Pluggable Transceiver Module

Cisco Catalyst C9200-48T Specifications

General

Total 10/100/1000 or Multigigabit copper ports	48 x 10/100/1000
Switching Capacity	176 Gbps
DRAM	4 GB
Flash	16 GB
PoE Support	No
MTBF	1, 000, 000 hours
Power Device	Internal power supply
Rack Mountable	Yes
Product Type	Layer 3 Switch
Uplink Ports	4 x 10 Gigabit Ethernet
Input Voltage	AC 120/230 V
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Operating Temperature	0 to 45°C
