Procedure
Step 1 Attach an ESD-preventive wrist strap to your wrist and to an earth ground surface.
Step 2 Remove the module from the protective packaging.
Step 3 Remove the blank module from the switch and save it. To remove the blank module, loosen the captive screw
on the module using a screwdriver until it completely disengages from the chassis.
Verify the correct orientation of your module before installing it. Incorrect installation can damage
the module.
Caution
Do not install the network module with connected cables or installed pluggable transceivers. Always
remove any cables and transceiver modules before you install the network module.
Caution
A module interface might become error-disabled when a network module with connected fiber-optic
cables is installed or removed. If an interface is error-disabled, you can reenable the interface by
using the shutdown and no shutdown interface configuration commands.
Caution
Step 4 Position the module face up to install it in the module slot. Slide the module into the slot until the screw makes
contact with the chassis. Fasten the captive screws to secure the network module in place.

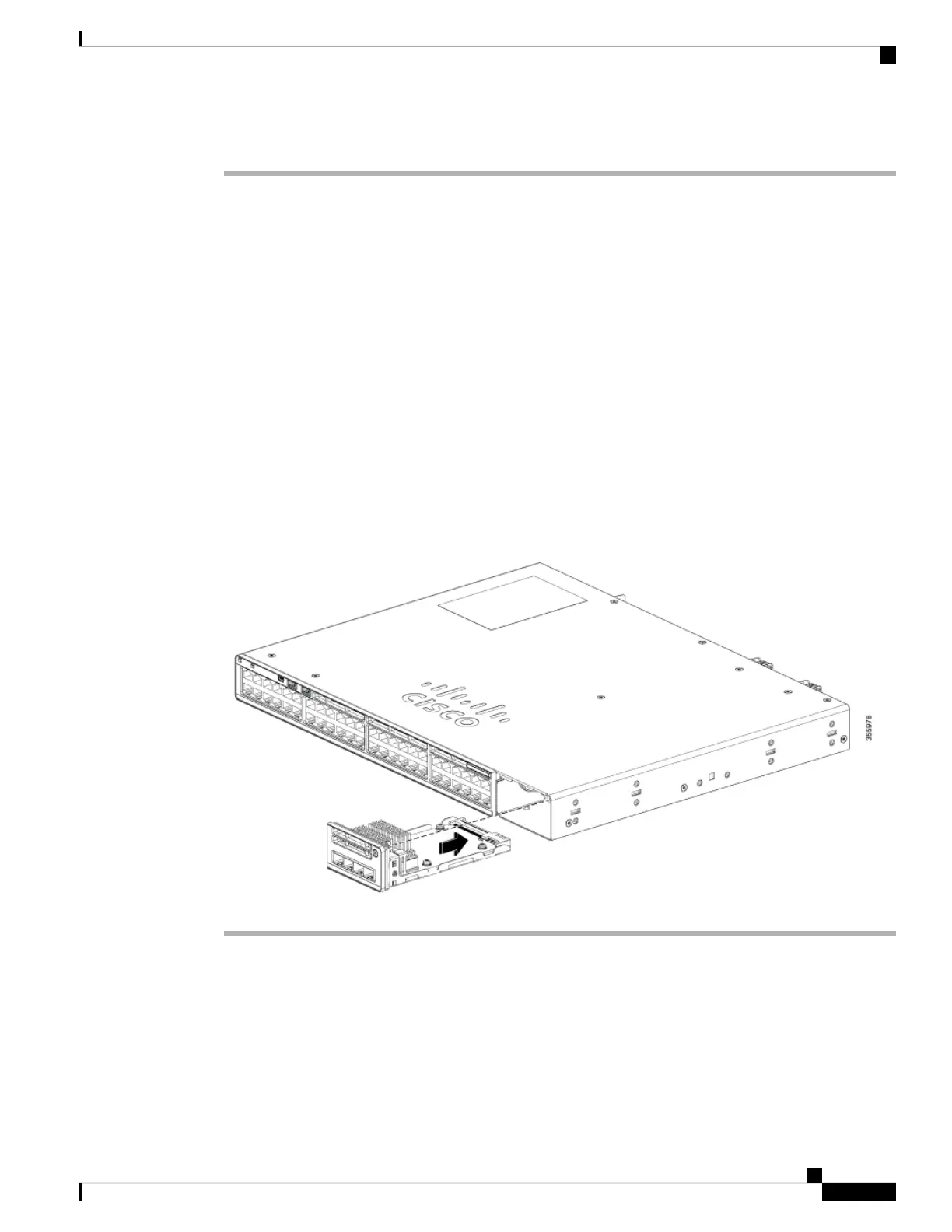

Figure 22: Installing the Network Module in the Switch
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
35
Installing a Network Module
