• Phillips screwdriver
Procedure
Step 1 Place one side of the magnet against the bottom of the mounting tray.

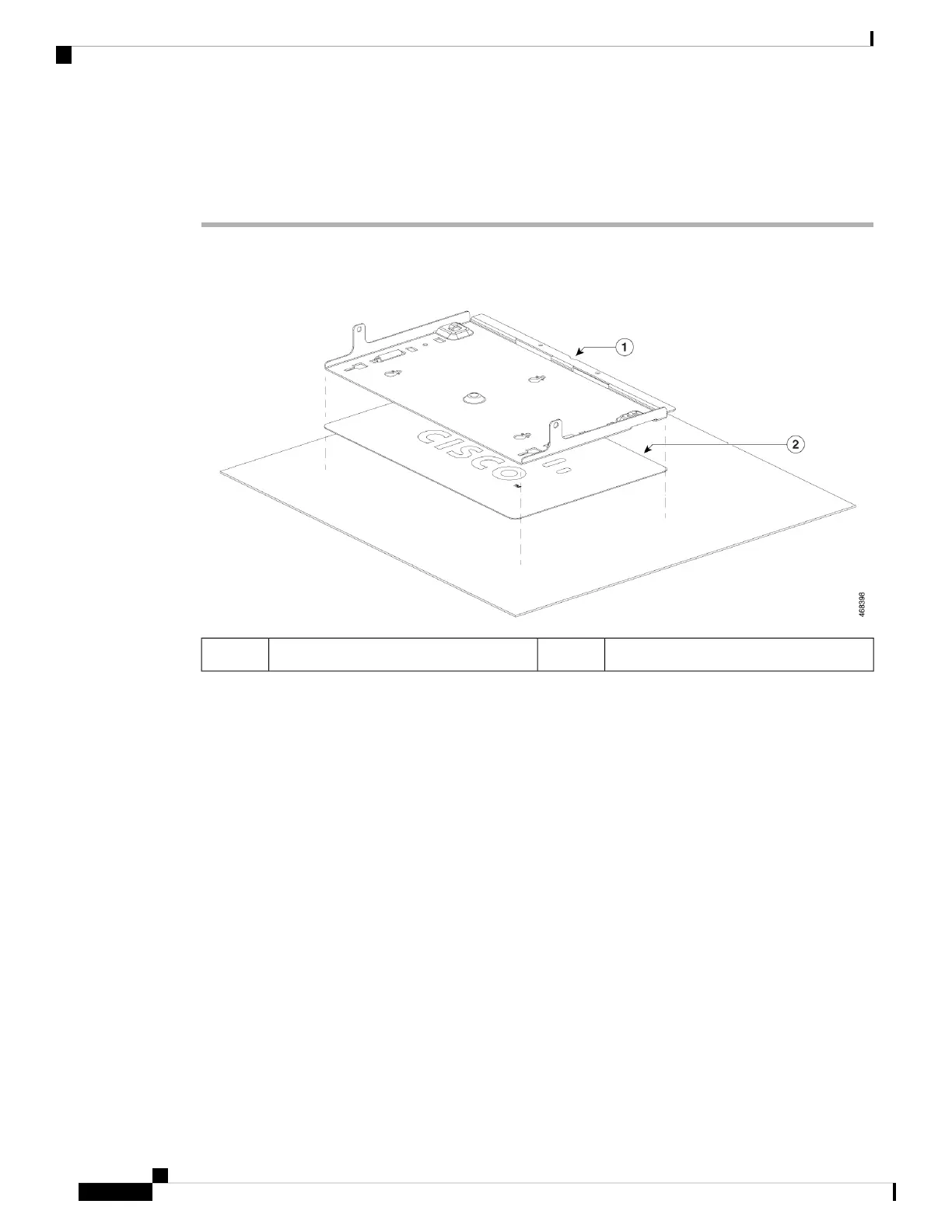

Figure 26: Placing the Mounting Tray on the Magnet
Magnet2Mounting tray1
Step 2 Slide the switch slightly forward after placing on to the mounting tray so that the mounting tray hooks engage
with the switch.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
56
Installing a Compact Switch
Mounting using the Mounting Tray and Magnet
