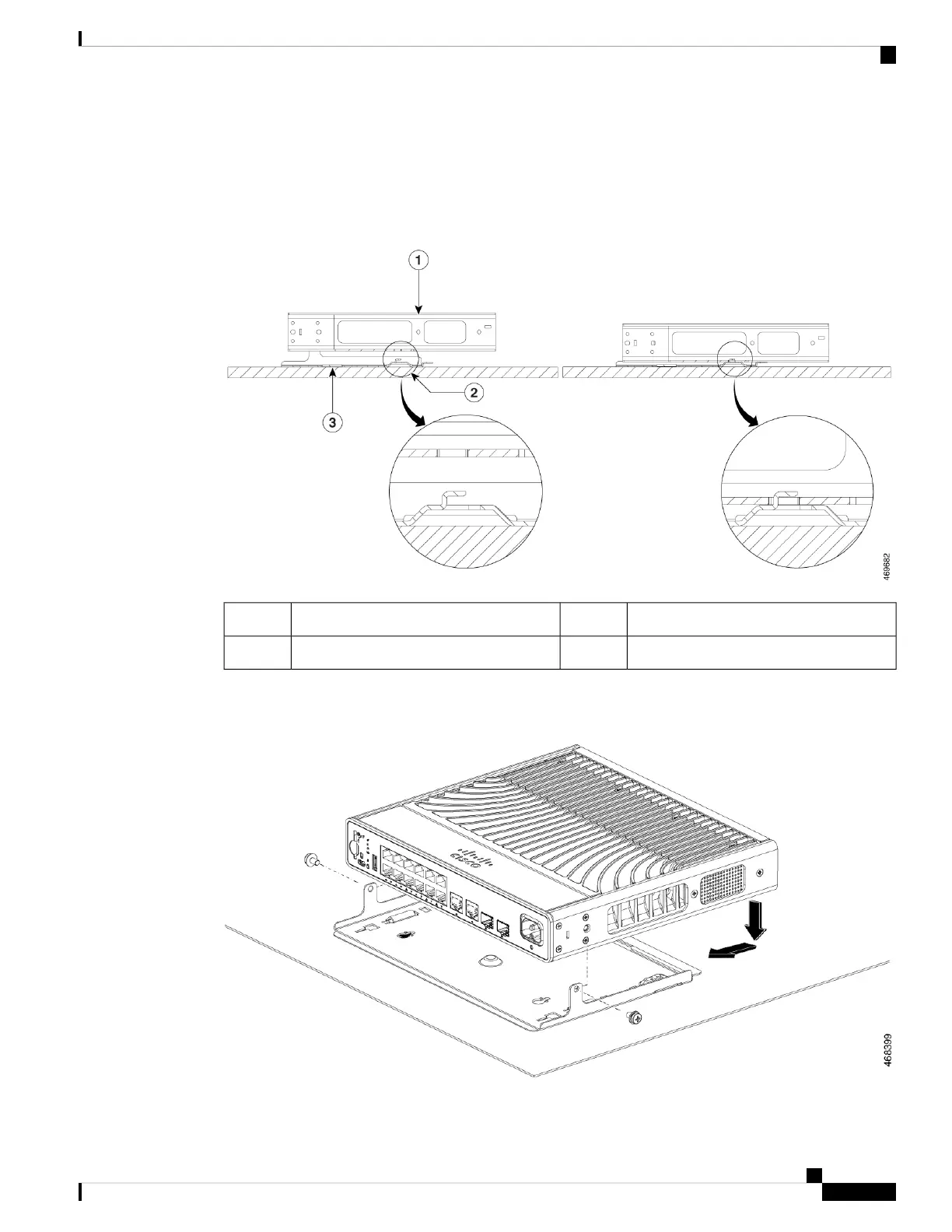

Figure 27: Aligning the Mounting Tray Hooks with the Switch
Mounting tray3Switch1
--Mounting tray hook2
Step 3 Place the switch on the mounting tray and secure it using the two 10-32 Phillips pan-head screws.
Figure 28: Securing the Switch to the Mounting Tray
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
57
Installing a Compact Switch
Mounting using the Mounting Tray and Magnet
