Figure 11: Attaching Brackets for 23-inch Racks (Rear Mounting)
What to do next
Complete the steps in the section Rack-Mount the Switch, on page 22.
Attach Brackets for ETSI Racks
Follow the instructions in this section to attach brackets for ETSI racks.
• 23-inch and ETSI brackets should not be used in high vibration environments, including any railway
application (EN50155).
• If you use ETSI brackets you can insert rubber plugs into switch holes for IP-30 compliance. Insert
them into the same holes as shown in the image Plug Locations by Position in the section Attach
Brackets for 19-Inch Racks for IP-30 Compliance (Optional), on page 18. Do so before installing
the brackets.
Note
Before you begin
Complete the tasks in the section Preparing for Installation.

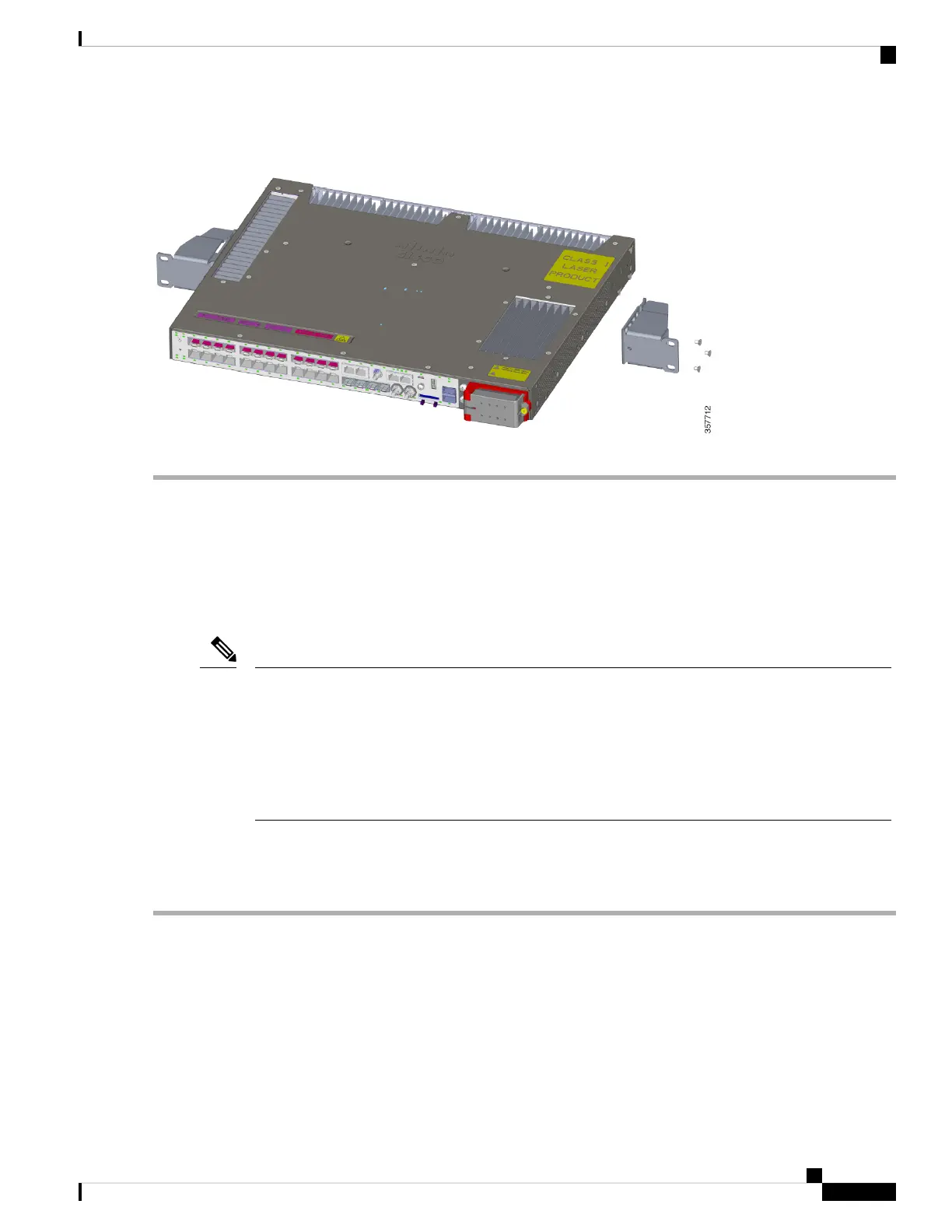

Attach the brackets to the switch, following the steps in the illustration.
Cisco Catalyst IE9300 Rugged Series Switch Hardware Installation Guide
21
Switch Installation
Attach Brackets for ETSI Racks
To Next Page
