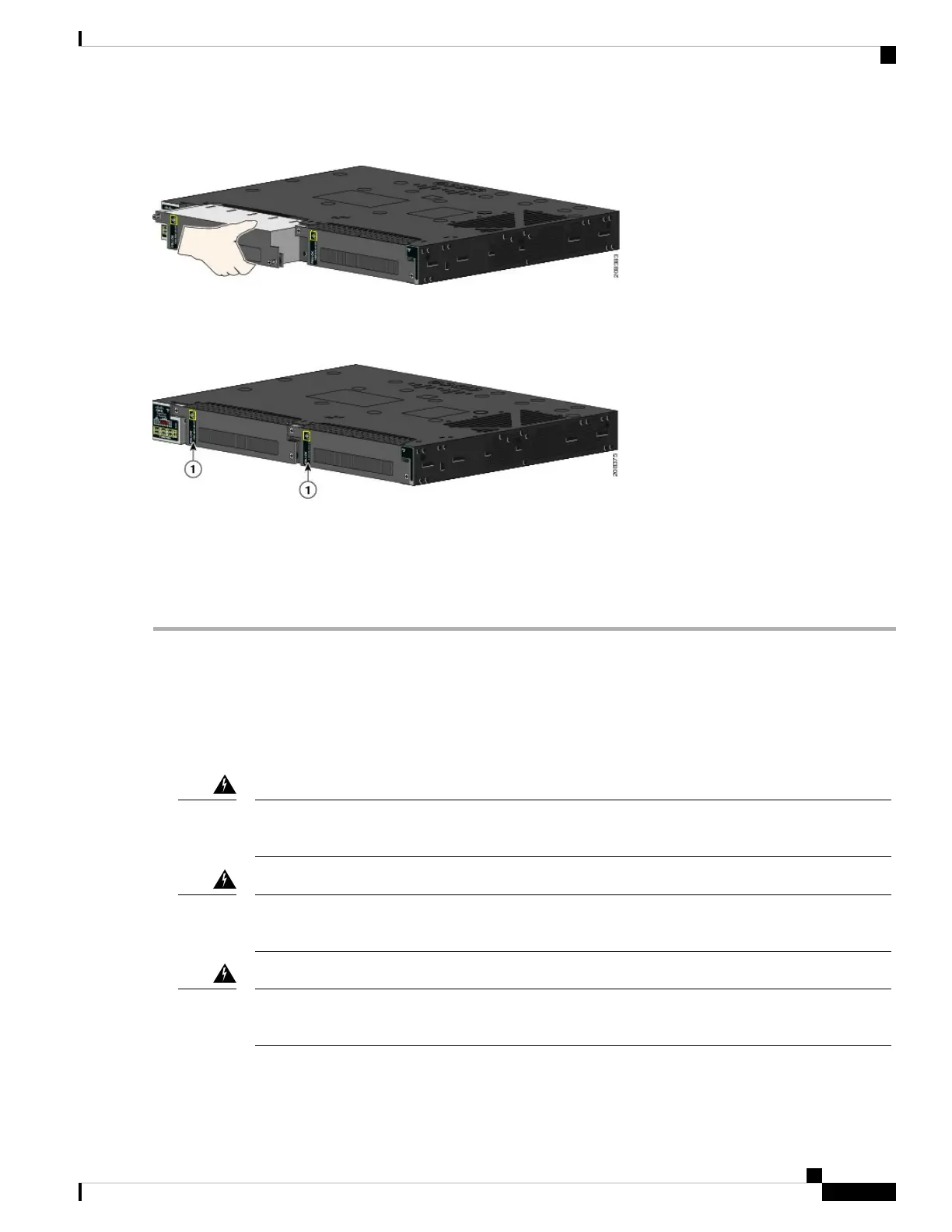

Figure 24: Removing the Power-Supply Blank
Step 3 Insert the power-supply module into the slot and gently push it in, as shown in the following illustration.
Figure 25: Insert the Power-Supply Module
When correctly inserted, the PWR-RGD-LOW-DC-H or PWR-RGD-AC-DC-H power supply is flush with the switch
rear panel. The PWR-RGD-AC-DC-250 extends 30 mm from the rear of the switch.
Step 4 Use a ratcheting torque screwdriver to torque each screw to 8-14 in-lb.
Step 5 If desired, repeat the preceding steps to add a second power supply.
Wire the Power Source
Before you begin
Review the following warnings:
This product relies on the building installation for short-circuit (overcurrent) protection. Ensure that the
protective device is rated not greater than: AC: 10 A, DC: 15 A. Statement 1005
Warning
A readily accessible two-poled disconnect device must be incorporated in the fixed wiring. Statement
1022
Warning
Only trained and qualified personnel should be allowed to install or replace this equipment. Statement
1030
Warning
Cisco Catalyst IE9300 Rugged Series Switch Hardware Installation Guide
43
Power Supply Installation
Wire the Power Source
