100/1000BASE-T SFPs reduce the accuracy of PTP performance.
Note

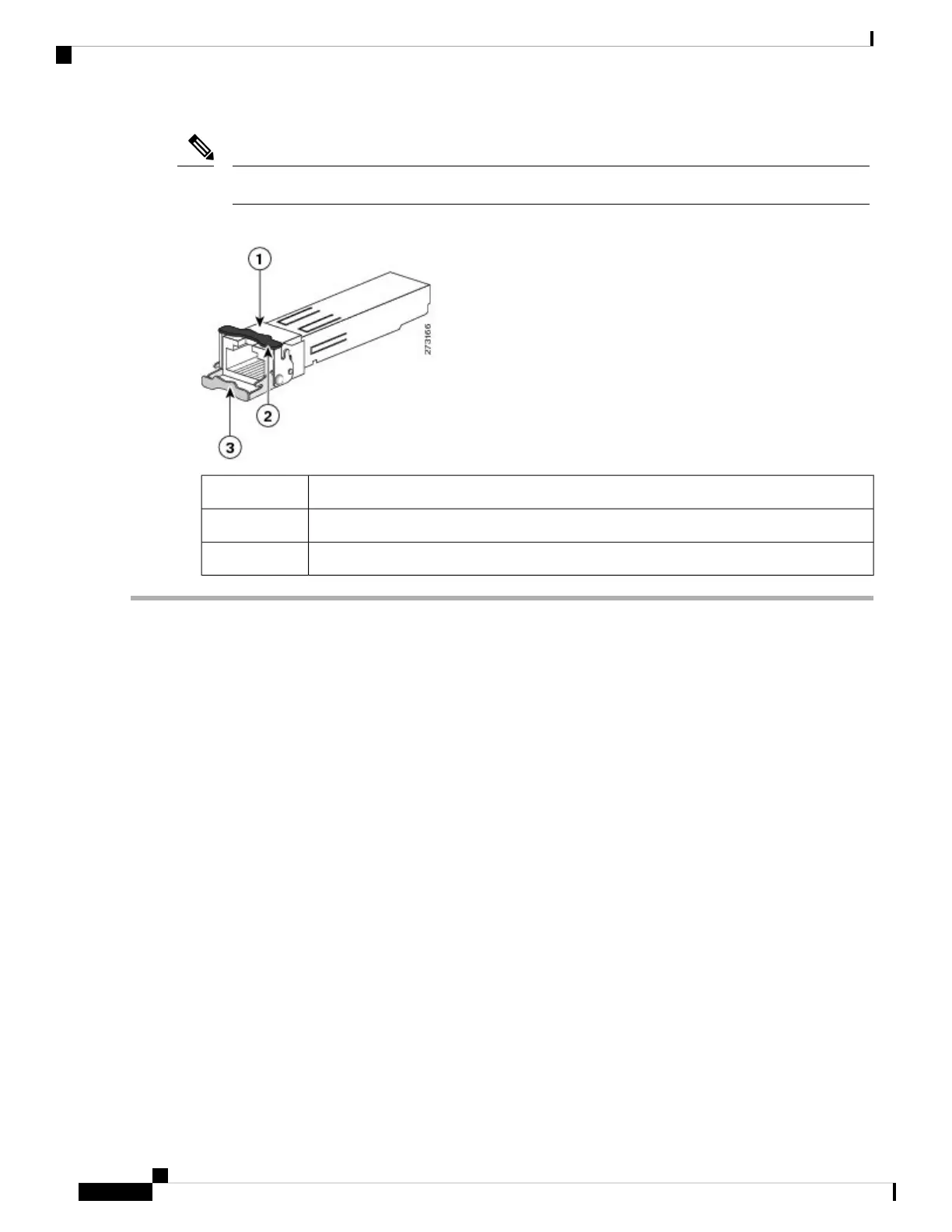

Figure 18: 1000BASE-T SFP Transceiver
RJ-45 connector1
Bale-clasp latching mechanism in the closed (locked) position1
Bale-clasp latching mechanism in the open (unlocked) position3
Step 1 Attach an ESD-preventive wrist strap to your wrist and to the ESD ground connector on the chassis or to a properly
grounded bare metal surface.
To avoid ESD damage, handle the SFP by its sides; do not touch the connector pins.
Note
Step 2 Remove the SFP module from its protective packaging.
Step 3 Check the markings on the SFP transceiver to verify that you have the correct model for your network.
Step 4 Position the SFP transceiver in front of the port socket opening.
Different Cisco devices have different SFP transceiver socket configurations. Your Cisco device might require
that the SFP transceiver be installed with the bale-clasp either in a latch-up or a latch-down orientation. Verify
that you have the SFP transceiver oriented correctly when you position it in front of the port socket.
Note
Step 5 With the bale-clasp closed (locked), slide the SFP transceiver into the socket until you feel it snap in place in the socket.
You may hear an audible click as the SFP transceiver latch engages in the socket.
Step 6 Connect the network interface cable RJ-45 plug to the SFP RJ-45 connector.
Step 7 Observe the port status LED:
• Green indicates that the SFP transceiver and the target device established a link.
• Amber indicates that the port is discovering the network topology and searching for loops.
This process takes about 30 seconds, and then the LED turns green.
Cisco Catalyst IE9300 Rugged Series Switch Hardware Installation Guide
32
Switch Installation
Install 100/1000BASE-T SFP Modules
