4 GPIO + 1 Return (Digital I/O)1
SFP Connector2
Pluggable Module3
mSATA SSD Slot4
Digital I/O LEDs5
Digital I/O Connector
The Digital I/O connector has 4 GPIO connections plus 1 Return connection. The Digital I/O supports Both
Dry and Wet contacts up to 60Volts.
• Dry contact is isolated from a voltage source (or “No Volt”), with an embedded relay function (NPN
transistor), usually used to indicate an event. For example: open/close, alarm.
• Wet contact is a contact with external power (+3.3V to +60V, max 150mA of current allowed at high
voltage) applied, usually used to energize something. For example: solenoid, light.
Figure 7 shows the connector.
Digital I/O is only supported on IOS-XE version 16.12.1 and above.
Note
The default state of the Digital I/O is input, the open-collector is open (off).
Note

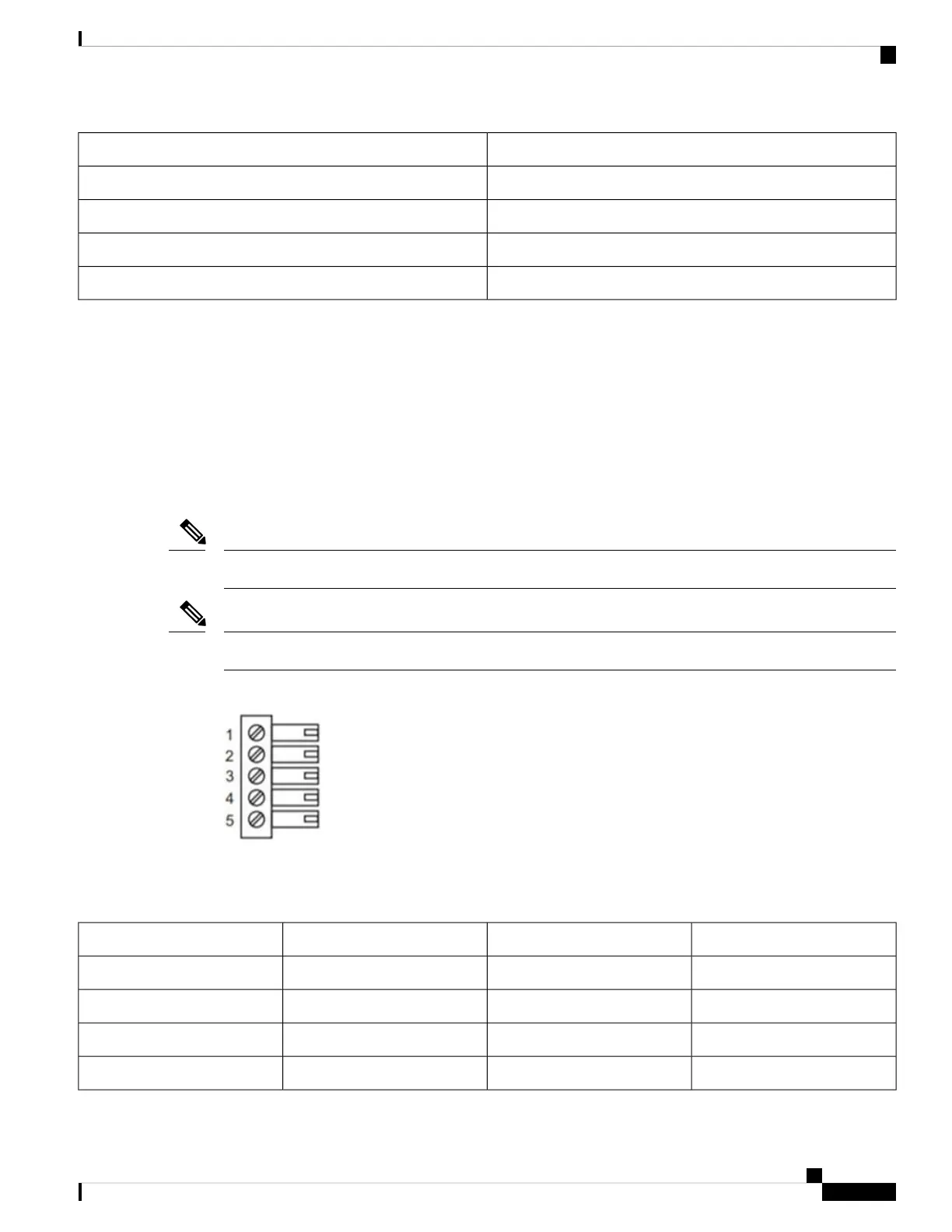

Figure 7: Digital I/O connector
The pinouts for the Digital I/O are described in Table 2 .
Table 2: Digital I/O Pinouts
DescriptionDirectionNamePin #
Digital IO 1I/ODIO11
Digital IO 2I/ODIO22
Digital IO 3I/ODIO33
Digital IO 4I/ODIO44
IR1101 Industrial Integrated Services Router Hardware Installation Guide
15
Product Overview
Digital I/O Connector
