Cisco IR1101 Hardware Installation Guide

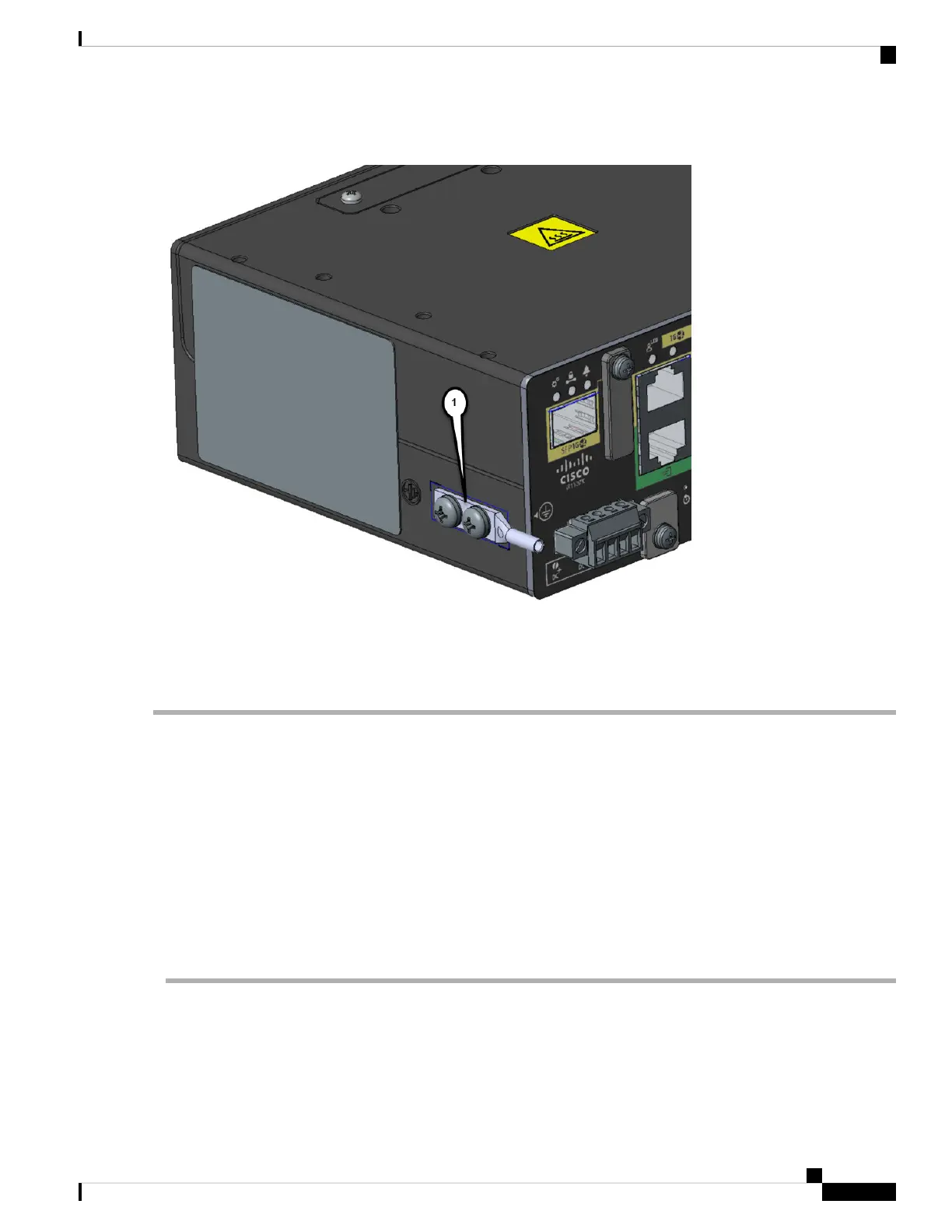

Figure 19: Chassis Ground Connection Points
Step 5 Connect the other end of the ground wire to a known reliable earth ground point at your site.
Step 6 If you are using this router in a vehicle, attach the ring terminal to the chassis using one of the screws provided and the
green or green and yellow striped wire. Connect the other end of the wire to the vehicle ground.
What to do next
After you install and properly ground the router, you can connect the power wiring, the LAN cables, and the
cables for administrative access as required for your installation.
Pluggable Module
The Pluggable Module provides the IR1101 with a number of different configuration options. In this section
the modular cellular modem Pluggable Module remove and replace option is shown.
The IR1101 may have a blank plate covering the Pluggable Module slot. This will need to be removed prior
to installing the cellular modem module. The following example shows the LTE Pluggable Module.
Step 1 Remove the blank plate by unscrewing the latch lock screw(1) that holds the plate secure. See Figure 20: Latch Lock
Screw, on page 38.
IR1101 Industrial Integrated Services Router Hardware Installation Guide
37
Installing the Router
Pluggable Module

Cisco IR1101 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
SIM card slot	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1D, IEEE 802.1Q
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
USB version	2.0
USB ports quantity	2
Combo SFP ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output voltage	12 - 48 V
Power source type	DC
Power consumption (typical)	9.8 W
Operating altitude	-152.4 - 1524 m
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 95 %
Safety	UL 60950-1, 2nd edition; CAN/CSA C22.2 No. 60950-1, 2nd edition, EN 60950-1, 2nd edition; CB to IEC 60950-1, 2nd edition
Flash memory	8000 MB
Storage media	Flash
Internal memory	4096 MB
Internal memory type	DRAM
Electromagnetic compatibility	47 CFR Part 15 B, EN 55032:2015, CISPR 32 Edition 2, CNS13438: 2006, EN 300 386 V1.6.1, ICES-003 Issue 6: 2016, KN 32: 2015, TCVN 7189: 2009, V-2/2015.04, V-3/2015.04, AS/NZ CISPR32, EN 61000-4-2, 3, 4, 5, 6, 8, 9, 16, 17, 18, and 29, CISPR24: 2010 + A1: 2015, EN 300 386 V1.6.1, EN 55024: 2010 + A1: 2015, EN 55035:2017, KN35: 2015, TCVN 7317:2003, QCVN 18:2014
Product color	Black
Routing protocols	BGP, EIGRP, HSRP, RIP-1, RIP-2
Data link protocols	IPv4, IPv6
Supported protocols	SCADA, DNP3, T101-104, Raw Socket TCP, UDP
Mobile network generation	Not supported
VPN support	Cisco Easy VPN Solution client and server NAT transparency Dynamic Multipoint VPN (DMVPN) Tunnel-less Group Encrypted Transport VPN Flex VPN
Firewall security	Cisco IOS
Security algorithms	256-bit AES, HTTPS, IPSec, SSL/TLS
Authentication method	Secure HTTP (HTTPS), FTP, Telnet Authentication Proxy
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	124.9 mm
Width	132.5 mm
Height	60 mm
Weight	1020 g
