Cisco IR1101 - RJ-45 Adapter Side

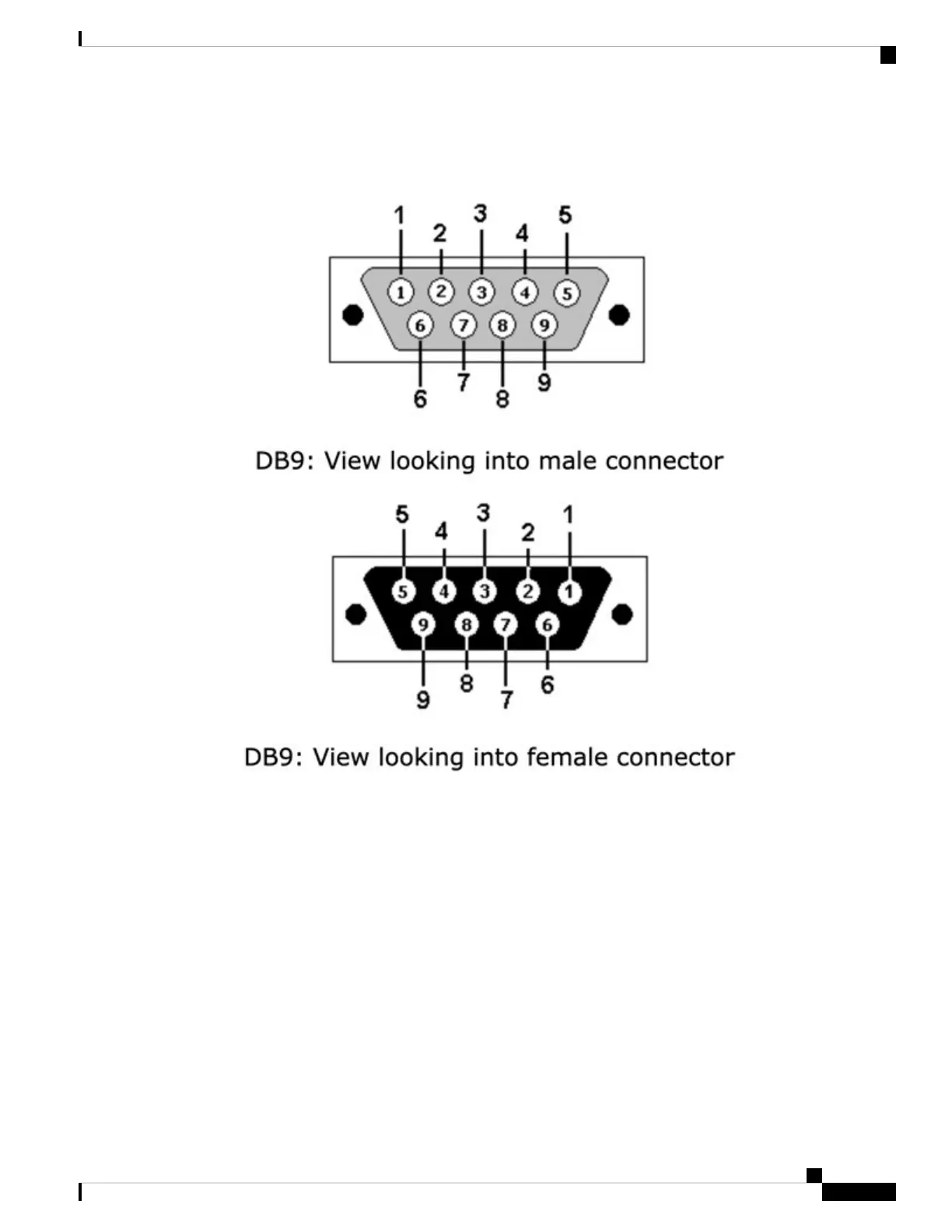

Figure 45: DB9 Pinout Views
RJ-45 Adapter Side
The RJ-45 female side of the connector, as previously mentioned, has fixed wires on the connector. Refer to
Figure 46: RJ-45 Female Pinouts, on page 72 for the pinouts, as well as the wire colors.
Note: White can also be Gray, depending on the adapter manufacturer.
IR1101 Industrial Integrated Services Router Hardware Installation Guide
71
Connecting the Router
RJ-45 Adapter Side
