LTE-Main SMA1
Micro USB Debug Port3
LTE-Div SMA4

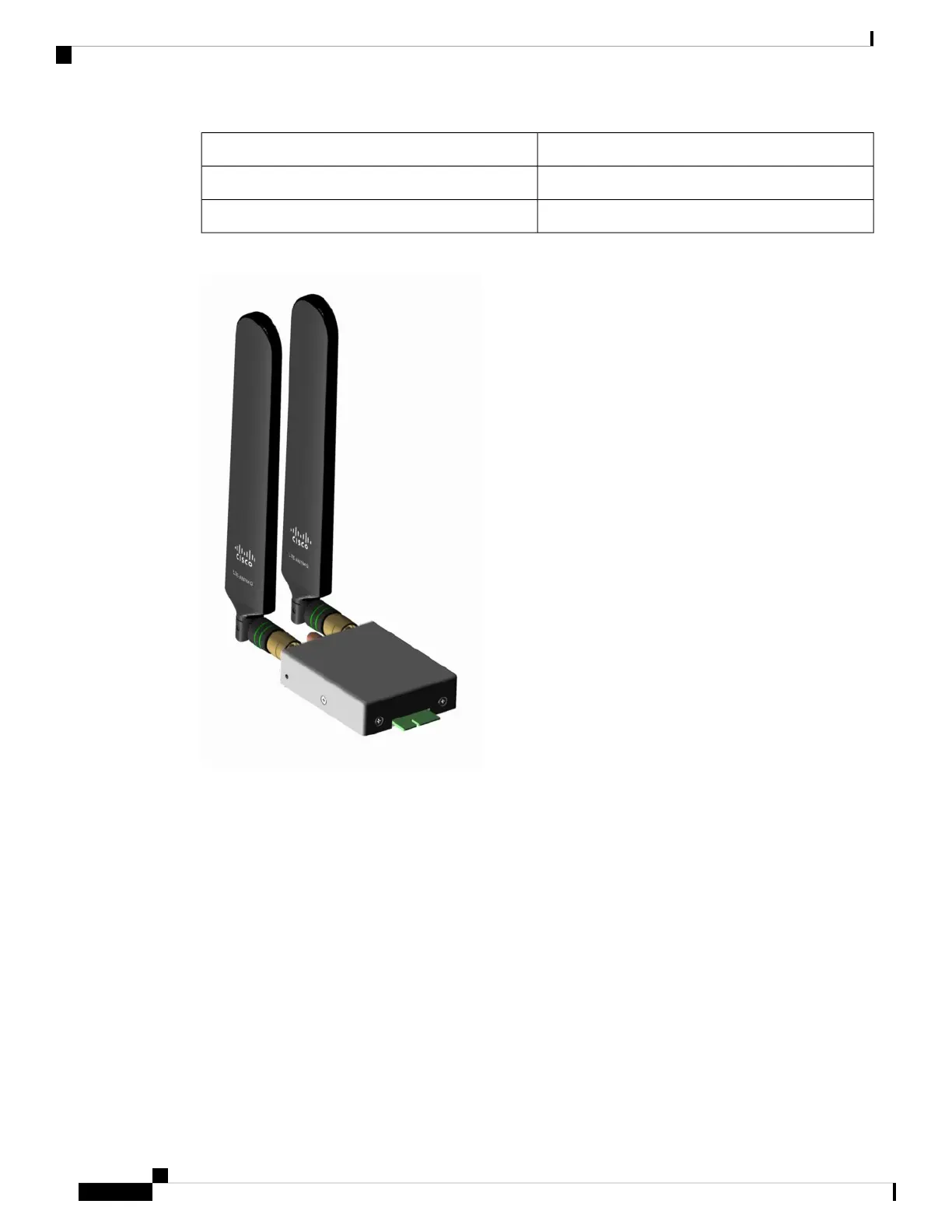

Figure 9: LTE Pluggable Module (with antennas)
mSATA Module
Mini-SATA, or mSATA, is a low-profile interface connector that enables more effective Serial ATA (SATA)
integration in small form-factor drives roughly the size of a business card, such as solid state disks (SSDs).
The mSATA Pluggable Module plugs into the IR-1100-SPMI Expansion Module. Figure 10 shows the
mSATA Pluggable Module.
